94
Installing System Components

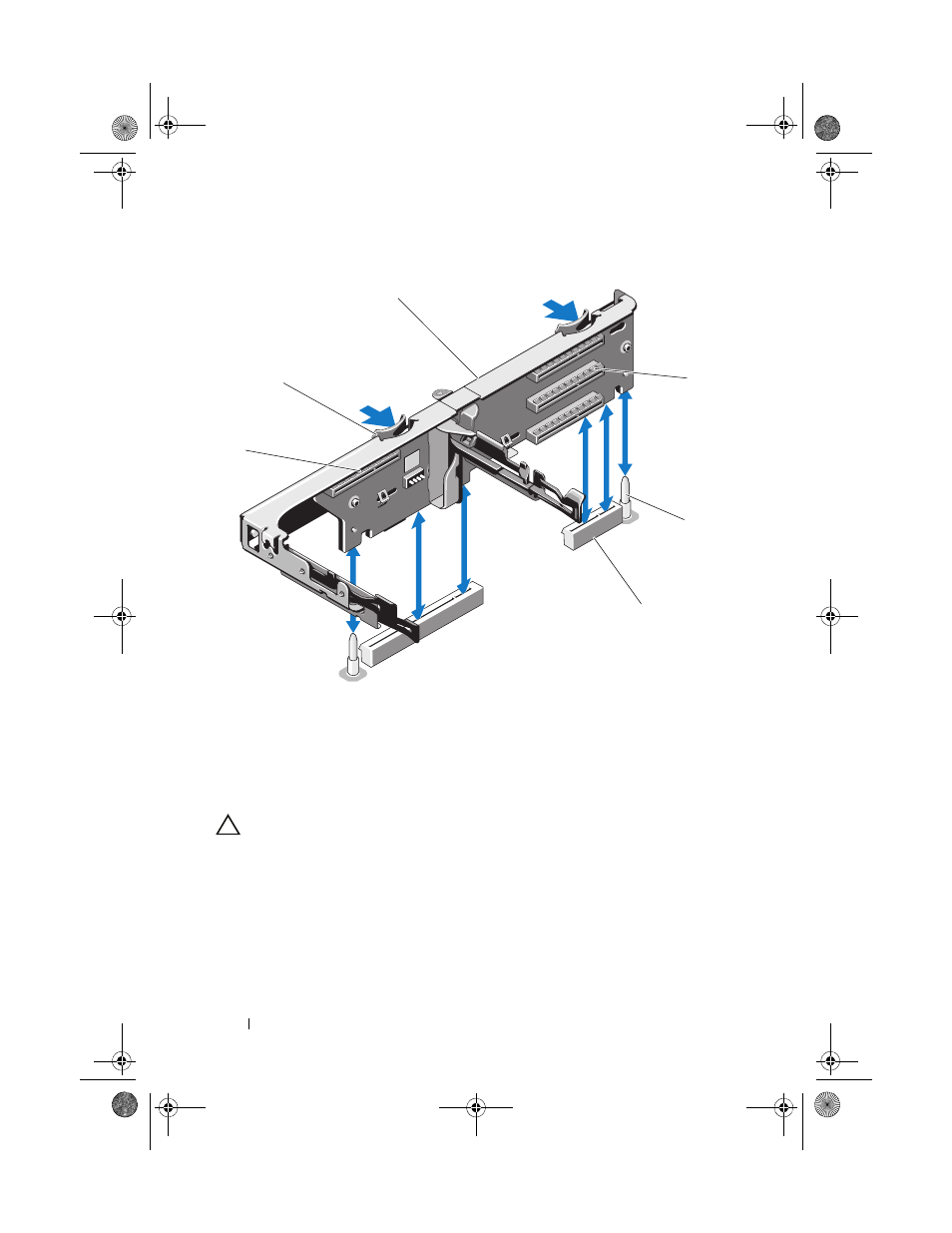

Figure 3-14. Removing and Installing an Expansion-Card Riser
Installing an Expansion-Card Riser
CAUTION:
Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 To install an expansion-card riser, align the riser guides with the riser guide
posts on the system board. See Figure 3-14.
1 integrated storage controller slot 2 riser guides (2)
3 expansion-card riser 4 expansion card slot
5 riser guide posts (2) 6 expansion-card riser slots (2)
6
1
2
3
5
4
