Installing System Components
113
6 Remove the power button board and power button from the control-panel
module.

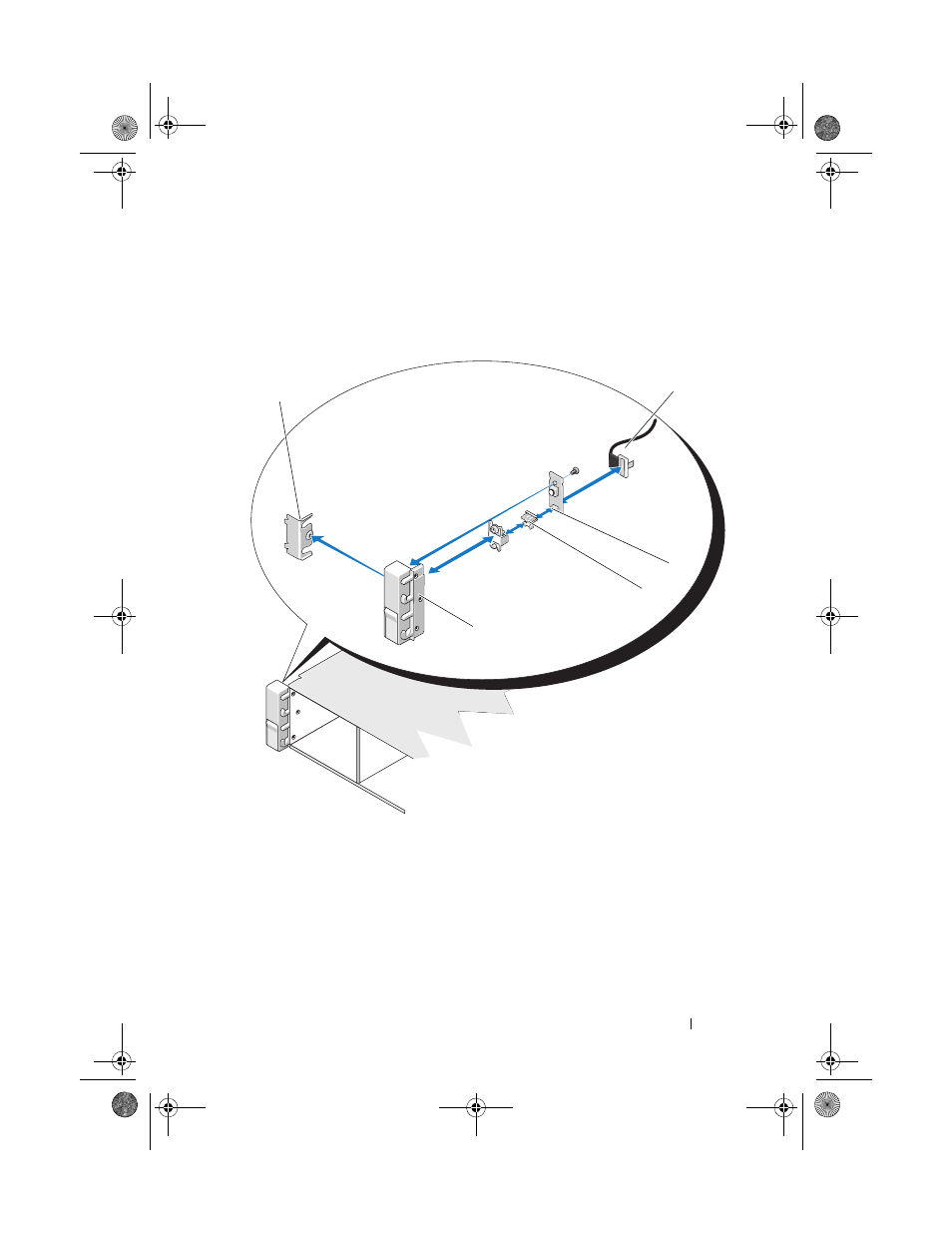

Figure 3-22. Removing and Installing the Control Panel –LED
1 bracket 2 control-panel cable
3 power button board 4 power button
5 control-panel module
1
2
4
3
5
