Char-Broil 463666512 User Manual
Page 20
10
7
8
20

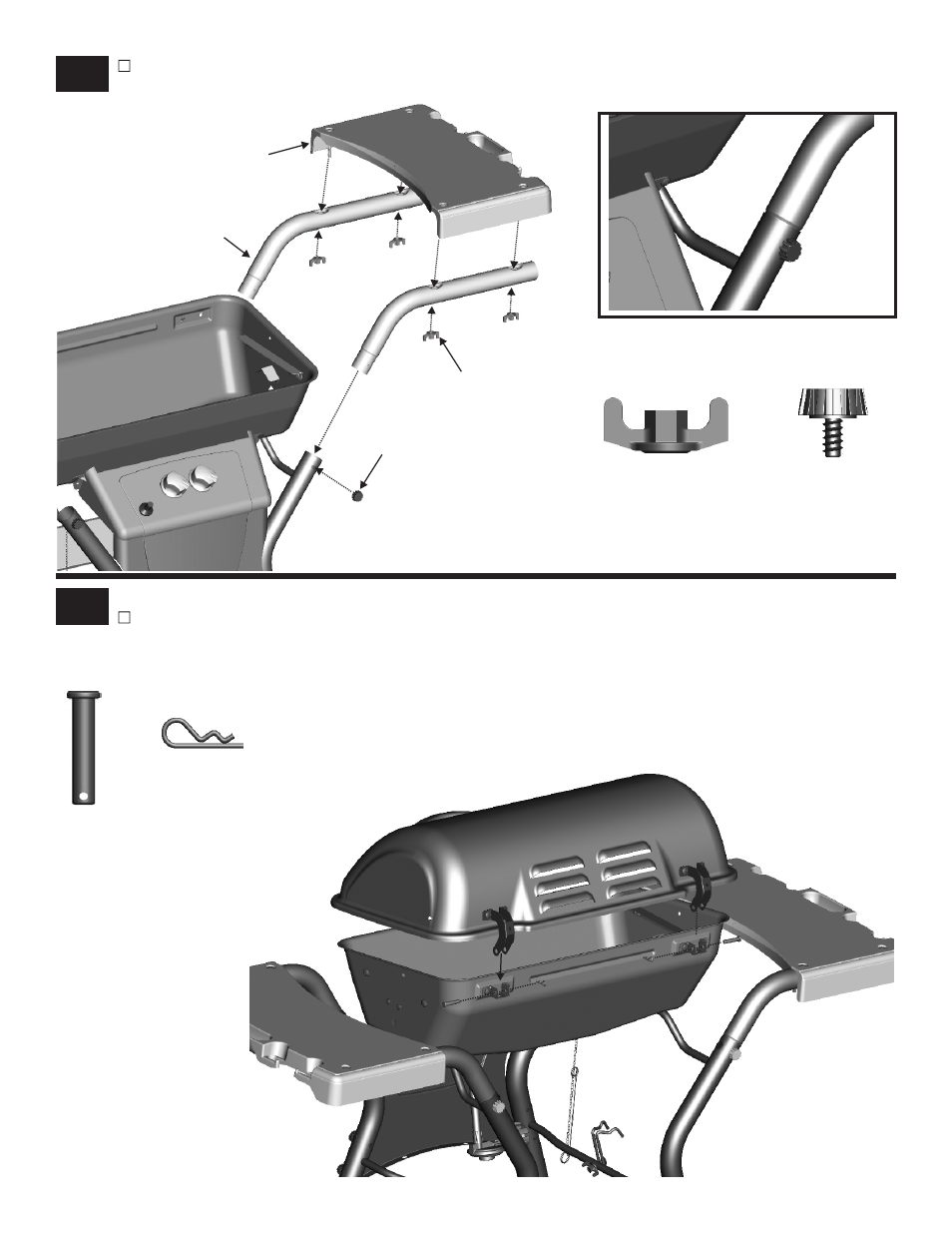

Slide shelf arms into leg assemblies and secure with
. Attach side shelves to shelf arms using 1/4˝-20
tee knobs
#10-24 plastic bolts
. Repeat steps for left side shelf.
#10-24
Plastic Bolt
Qty. 4
Side Shelf
#10-24 Plastic Bolt
Lid assembly
Place lid assembly onto firebox, align hinges. Hinges on lid fit inside hinges on firebox. Secure using two hinge pins and
hitch pins.
Hinge Pin
Qty. 2
Hitch Pin
Qty. 2
Shelf Arm
1/4˝-20 Tee Knob
1/4˝-20
Tee Knob
Qty. 8
