Char-Broil 463666512 User Manual
Page 18
3
4
18

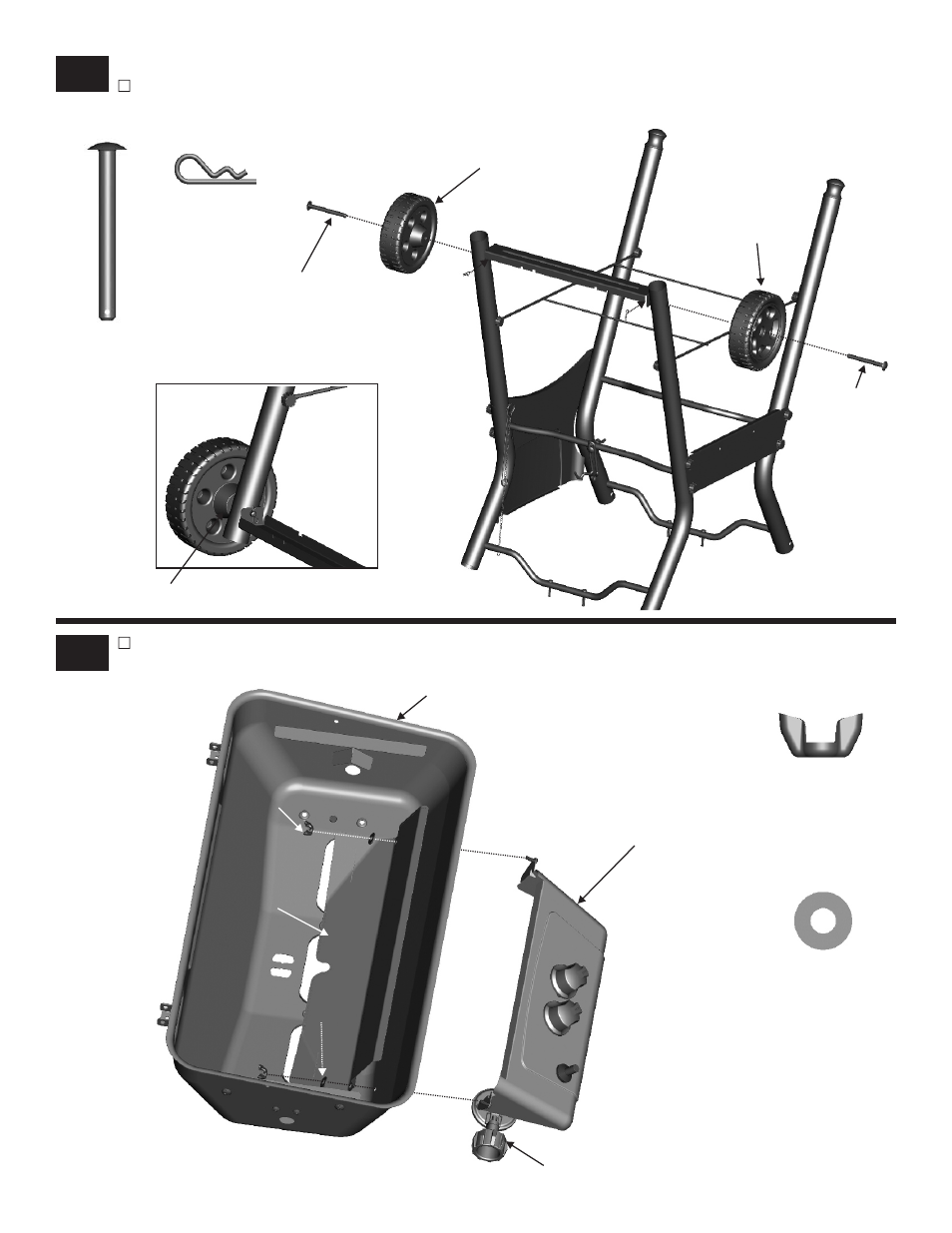

Attach control panel/ HVR assembly and heat shield to firebox with 7x15 fiber washers and #10-24 wing nuts.
Wheels
Turn assembly upside-down. Insert 5/16’’ axle bolts through wheels. Insert axle bolt through leg and bracket and secure
with hitch pin.
“Cone” side of wheel against leg
5/16’’
Axle Bolt
Hitch Pin
Qty. 2
5/16’’
Axle Bolt
Qty. 2
5/16’’
Axle Bolt
Wheel
Wheel
#10-24
Wing Nut
Qty. 2
7x15
Fiber Washer
Qty. 2
Control Panel
Firebox
#10-24 wing nut
7x15 fiber washer
HVR Assembly
Heat Shield
