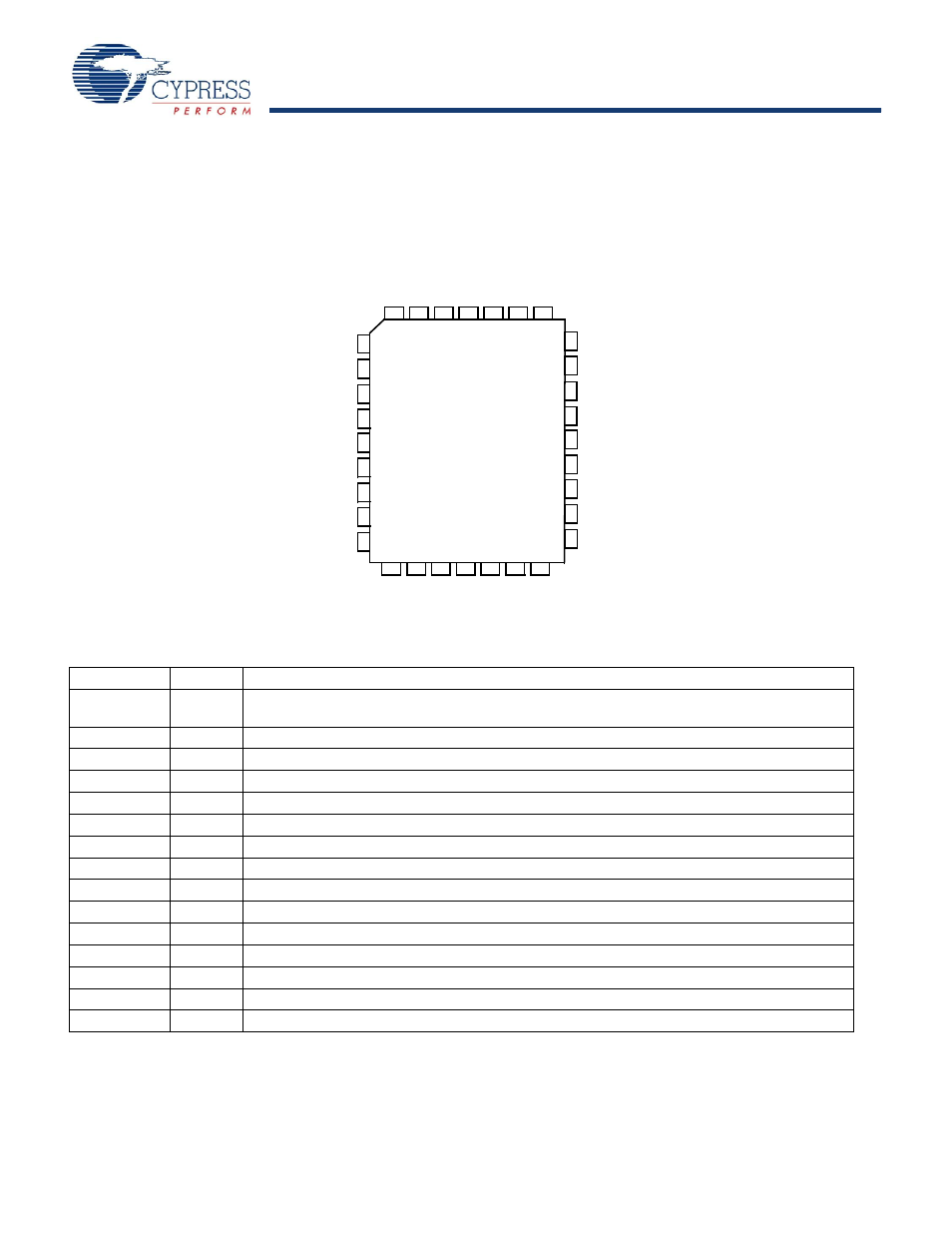

Pin Configuration
Pin Definitions
Signal Name IO Description
REF I Reference frequency input. This input supplies the frequency and timing against which all functional
variations are measured.
FB I PLL feedback input (typically connected to one of the eight outputs).
FS I Three level frequency range select. See Table 1 .
1F0, 1F1 I Three level function select inputs for output pair 1 (1Q0, 1Q1). See Table 2 .
2F0, 2F1 I Three level function select inputs for output pair 2 (2Q0, 2Q1). See Table 2 .
3F0, 3F1 I Three level function select inputs for output pair 3 (3Q0, 3Q1). See Table 2 .
4F0, 4F1 I Three level function select inputs for output pair 4 (4Q0, 4Q1). See Table 2 .
TEST I Three level select. See “Test Mode” on page 4 under the “Block Diagram Description” on page 3.
1Q0, 1Q1 O Output pair 1. See Table 2 .
2Q0, 2Q1 O Output pair 2. See Table 2 .
3Q0, 3Q1 O Output pair 3. See Table 2 .
4Q0, 4Q1 O Output pair 4. See Table 2 .
V
CCN
PWR Power supply for output drivers.
V
CCQ
PWR Power supply for internal circuitry.
GND PWR Ground.
1 2 3 4 32 31 30
17 16 15 14 18 19 20
5
6
7
8
9
10
11
12
13
29
28
27
26
25
24
23
22
21
3F
0
FS V REF GND TEST 2F
1
FB
2Q1 2Q0
CCQ
2F0
GND
1F1
1F0
V
CCN
1Q0
1Q1
GND
GND
3Q1 3Q0 CC
N
V
CC
N
V
3F1
4F0
4F1
V
CCQ
V
CCN
4Q1
4Q0
GND
GND
PLCC/LCC
CY7B991
CY7B992
[+] Feedback
