shows the CY7B991 and 992 connected in series to construct a zero skew clock distribution tree between boards. Delays
of the downstream clock buffers are programmed to compensate for the wire length (that is, select negative skew equal to the wire
delay) necessary to connect them to the master clock source, approximating a zero delay clock tree. Cascaded clock buffers accumu-
lates low frequency jitter because of the non-ideal filtering characteristics of the PLL filter. Do not connect more than two clock buffers
in series.

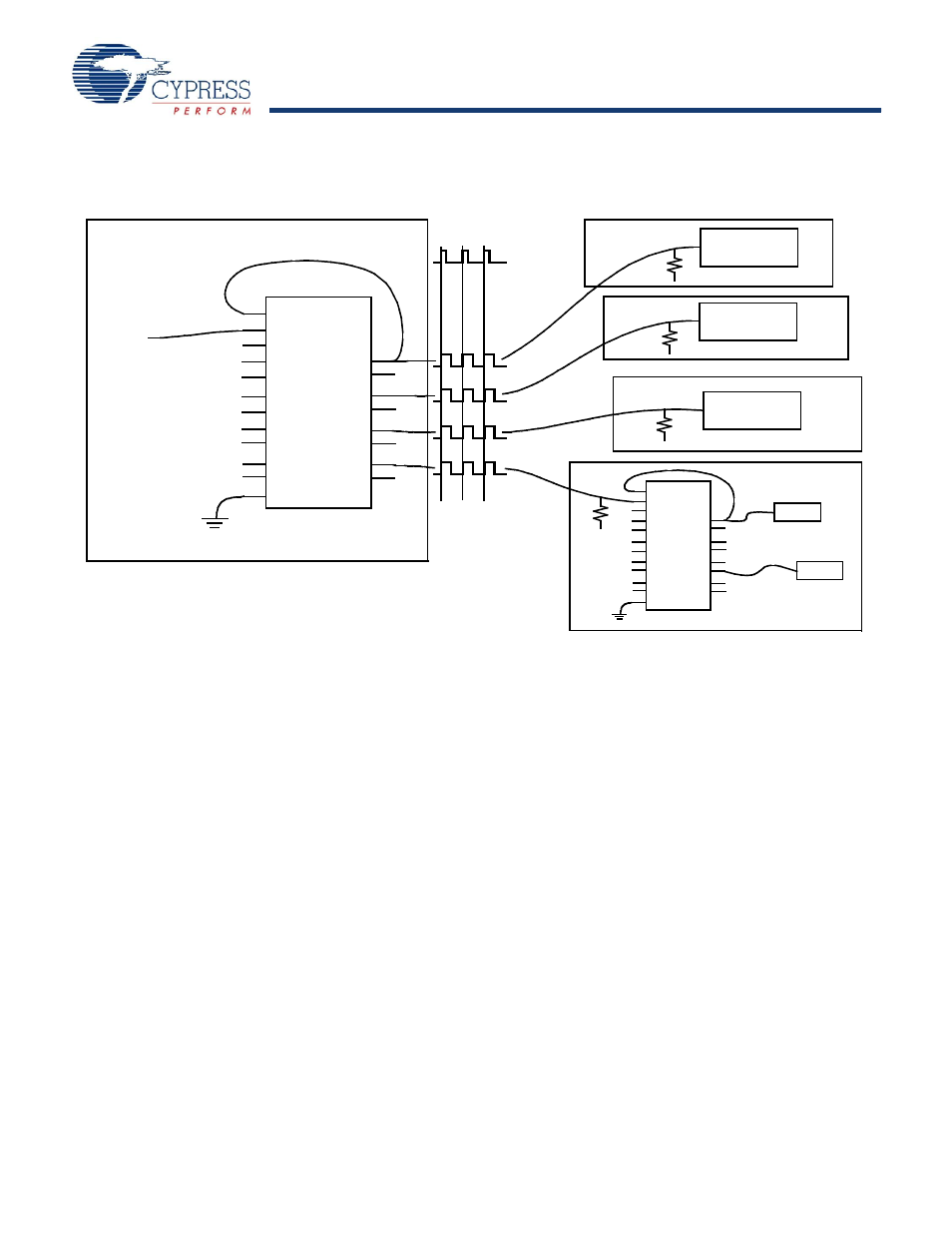

Figure 8. Board-to-Board Clock Distribution
