9.

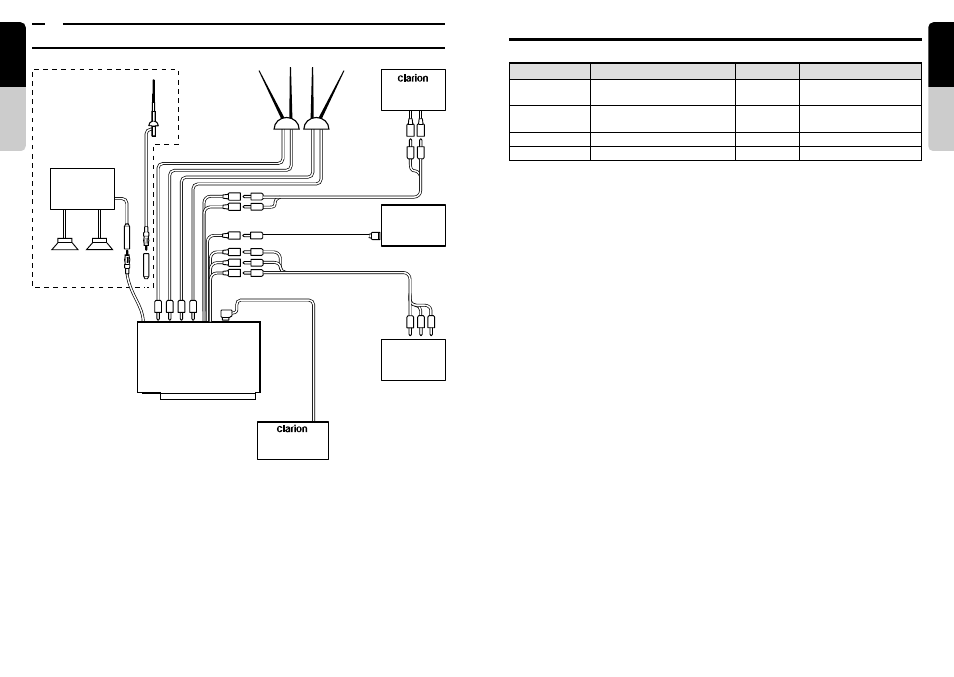

SAMPLE SYSTEMS
Parts sold separately for connections
■ TV antennas (antennas for added pictures)
Model number
TV antenna for vehicles
TV antenna (diversity) for vehicles
TV antenna (diversity) for vehicles
TV antenna (diversity) for vehicles
ZCP-104
ZCA-404
ZCP-100
ZCB-303
4
4
4
2
Film type antenna with
booster
1 set of left and right
antennas (retractable)
With booster
Application No. of systems Remarks
* Various conversion adaptors, extension cords, antennas and other parts are available in addition to what is
listed above. For details, consult your dealer or your nearest Clarion service outlet.
Radio antenna
CCD Camera
(sold separately) or
External device (VTR2)
4-system TV diversity
antenna
(sold separately)
Connected to system
expansion terminal
Connected to video output
terminal (RCA pin jack) REAR MONITOR
(sold separately)
Center unit
with AUX input
Main unit
TB731P/TB732P/TB733W
Speakers
Clarion products
or Car stereo with
FM Tuner (sold
sepatately)
Connected to video/audio input terminals
(RCA pin jacks) (sold separately)
External device
(VTR1)
(sold separately)
(sold separately)
TB731P/TB732P only
Connected to audio
output terminals
(RCA pin jacks)
Notes:
• For details on the connecting terminals, refer to
the section on wire connections (page 26).
• A External device can be connected to the system
expansion terminal using the CCA-389
conversion cable.
