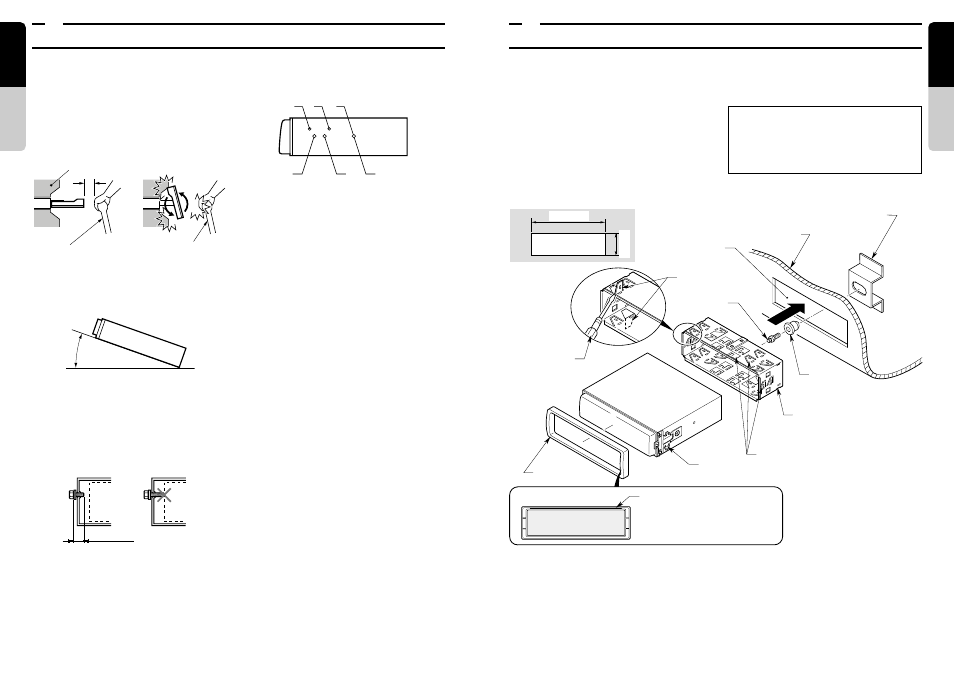

4.
CAUTIONS ON INSTALLATION
1. Prepare all articles necessary for installing
the main unit before starting.
2. This model is used with the LCD panel slid
forwards (shell loading system). On some
types of cars, the LCD panel may touch the
dashboard or shift stick, in which case it
cannot be installed. Check that the set will
not hamper operation of the shift stick before
choosing the place of installation.(Figure 2)
Dashboard
Shift stick
(check that it does not
touch the LCD) Shift stick
Figure 2
3. Install the unit within 30° of the horizontal
plane. (Figure 3)
Max. 30 °
Figure 3
4. If you have to do any work on the car body,
such as drilling holes, consult your car
dealer beforehand.
5. Use the enclosed screws for installation.
Using other screws can cause damage.
(Figure 4)
Max. 8 mm
Chassis
Damage
Figure 4
Chassis
6. The main unit has mounting screw holes for
NISSAN (N marks) and TOYOTA (T marks)
vehicles. (Figure 5)
T
N N T
N T
Figure 5
5.
INSTALLING THE MAIN UNIT
■ Universal Mount
1. Place the universal mounting bracket into
the instrument panel, use a screwdriver to
bend each stopper of the universal mounting
bracket inward, then secure the stopper as
shown in Figure 6.
2. Wire as shown in Section 8.
3. Insert the main unit into the universal
mounting bracket until it locks.
4. Mount the outer escutcheon so that all the
hooks are locked.
Notes:
1) Some car models require special mounting kits
for proper installation. Consult your Clarion
dealer for details.
2) Fasten the front stopper securely to prevent
the main unit from coming loose.
182 mm
53 mm
Instrument panel
Rear fastening hole (of vehicle)
Hole
• Console opening dimensions
Figure 6
Hole
2–Springs
Outer escutcheon
Special screw
Rubber cap
Stoppers
Stoppers
Screwdriver
Universal mounting bracket
Main Unit
Note: Set the outer escutcheon so
that its metallic part on the
back side fits the upper edge
of the main unit.
