Technical Information
-20- COLORado™ 2 Tour User Manual Rev. 02b

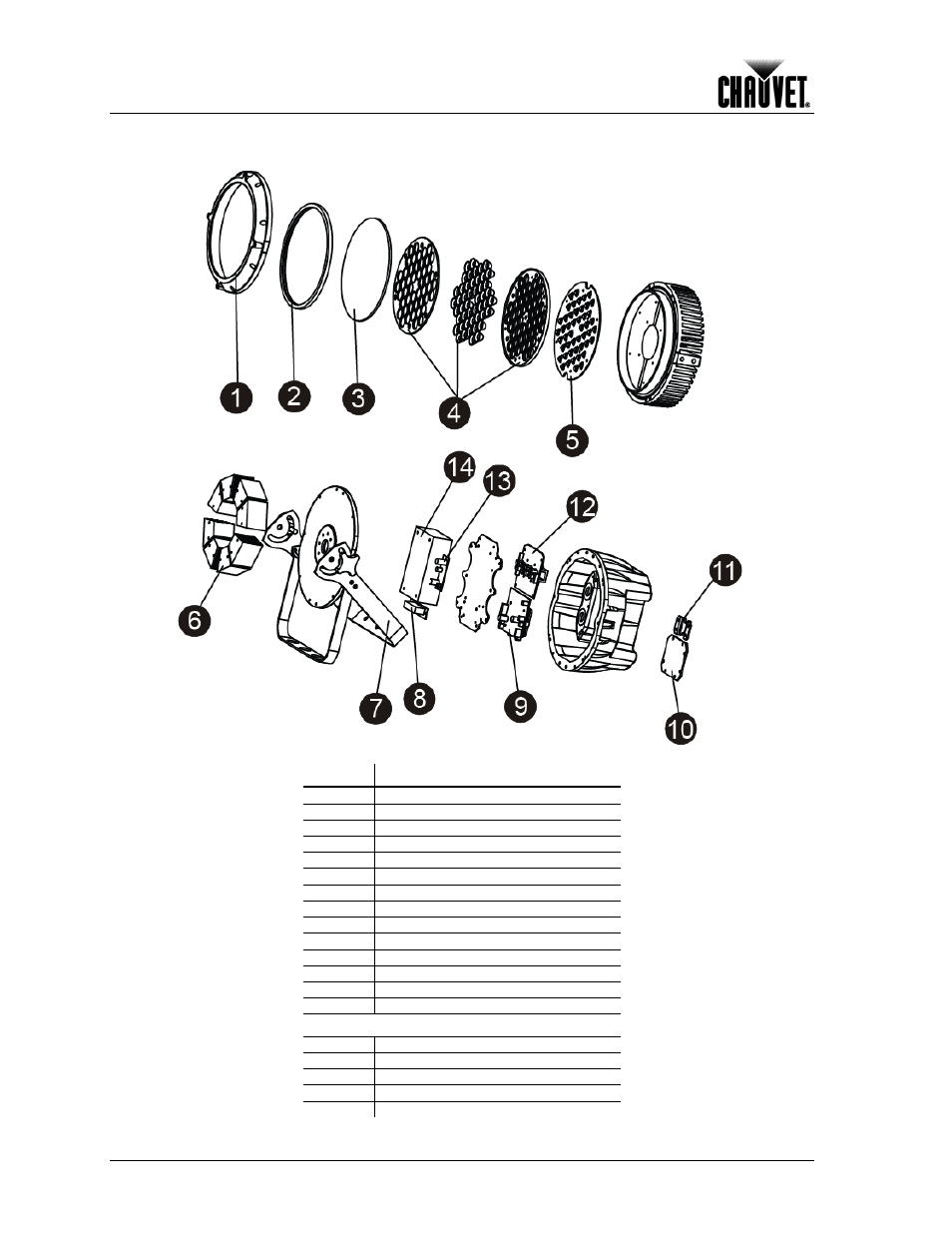

Exploded View
Item Description
1 Front cover
2 Rubber seal
3 Front tempered glass
4 Lens complete set
5 LED board
6 Heat sink
7 Bracket
8 Power connection board
9 Display / Main board
10 Display protection metal plate
11 Safety chain plate
12 LED driver board
13 Voltage regulator board (5 V)
14 Power supply (24 V)
Not Shown
15 DMX In socket
16 DMX Out socket
17 Power input cable (Neutrik to Edison)
18 Power output cable (Neutrik to Edison)
19 Display/Master IC chip
