Operation
COLORado™ 2 Tour User Manual Rev. 02b -9-
4. Operation

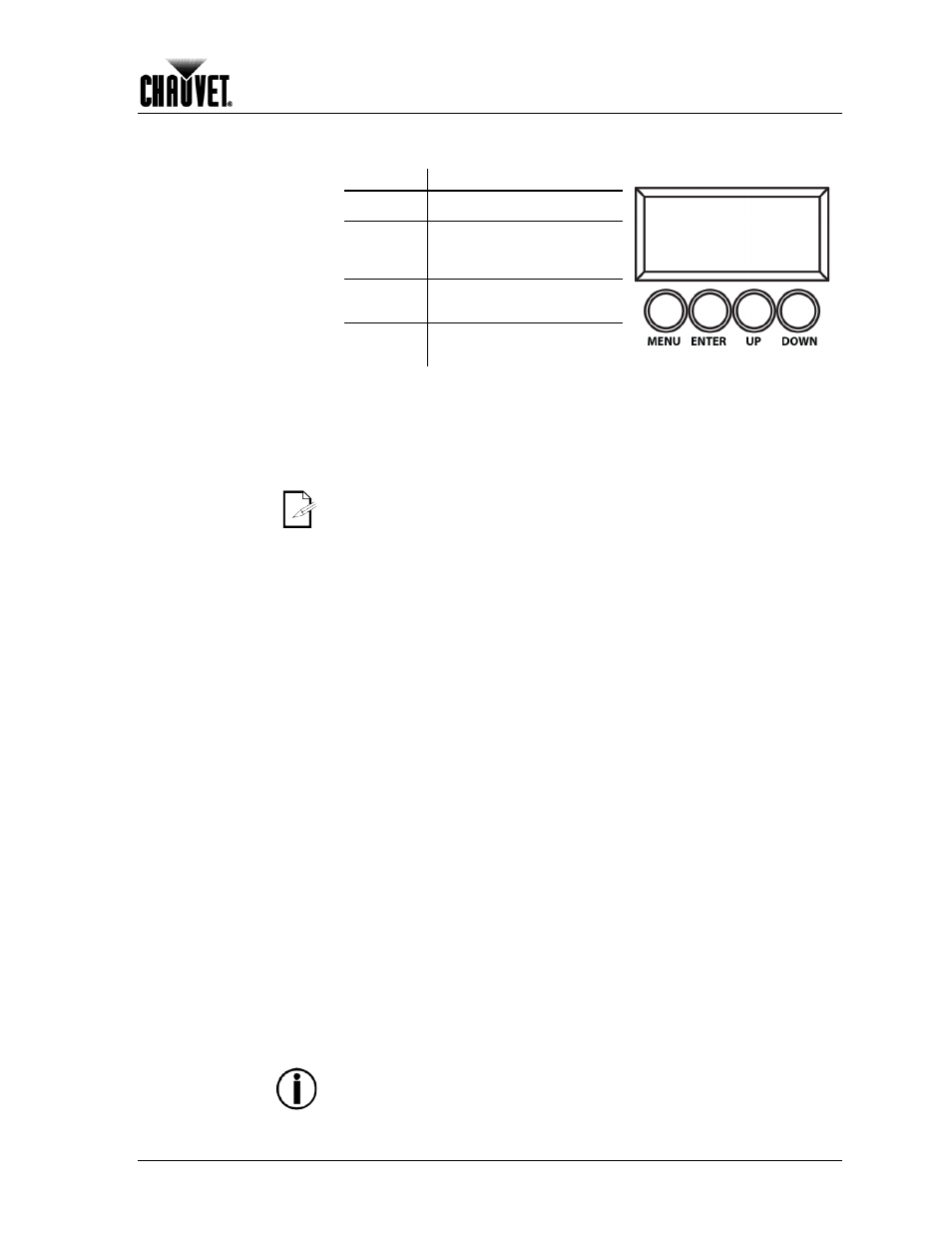

Control Panel
Description
Button Function
Exits from the current menu or
function
Enables the currently displayed
menu or sets the currently
selected value into the current
function
Navigates upwards through the
menu list or increases the
numeric value when in a function
Navigates downwards through
the menu list or decreases the
numeric value when in a function
Control Options You can set the COLORado™ 2 Tour start address in the 001~512 DMX range. This
allows for the control of up to 46 fixtures in the 11-channel TOUR personality. In
addition, the ID address system allows you to assign up to 66 fixtures within the same
DMX address, thus multiplying the number of fixtures you can control within a single
universe. You can access the fixture’s ID address system from channel 11 when in the
TOUR personality.
When programming live performances as well as cues that need to trigger on
demand or on a time line, program no more than 10 fixtures on ID addressing per
DMX channel. This is to remain within a one-second execution time.
Programming Carry out all the programming procedures indicated below from the control panel. Refer
to the Menu Map on page 14 to learn how the menu options relate to each other.
DMX Personality
This setting allows the user to choose a particular DMX personality.
1) Press
2) Use or to select the desired personality (TOUR, ARC1, AR1 + D,
ARC2, AR2 + D, AR2 + S, or HSV).
3) Press to accept.
4) Press
DMX Control
Without ID
Addressing
In this mode, each unit will respond to a unique starting address from the DMX
controller. All units with the same starting address will respond at unison.
1) Select the TOUR personality as shown in DMX Personality.
2) Set the running mode:
a) Press
b) Use or to select DMX; press to accept.
c) Press
3) Set the starting address:
a) Press
b) Use or to select the starting address (001~512).
c) Press to accept.
d) Press
4) Deactivate ID Addressing in each fixture:
a) Press
b) Use or to select ID; press to accept.
c) Use or to select OFF; press to accept.
d) Press
Make sure to deactivate ID Addressing in each fixture when using the TOUR
personality. Otherwise, unintended results may occur if channel 11 is not set to
“0”.
Continues on the next page
