Installation Guide
9

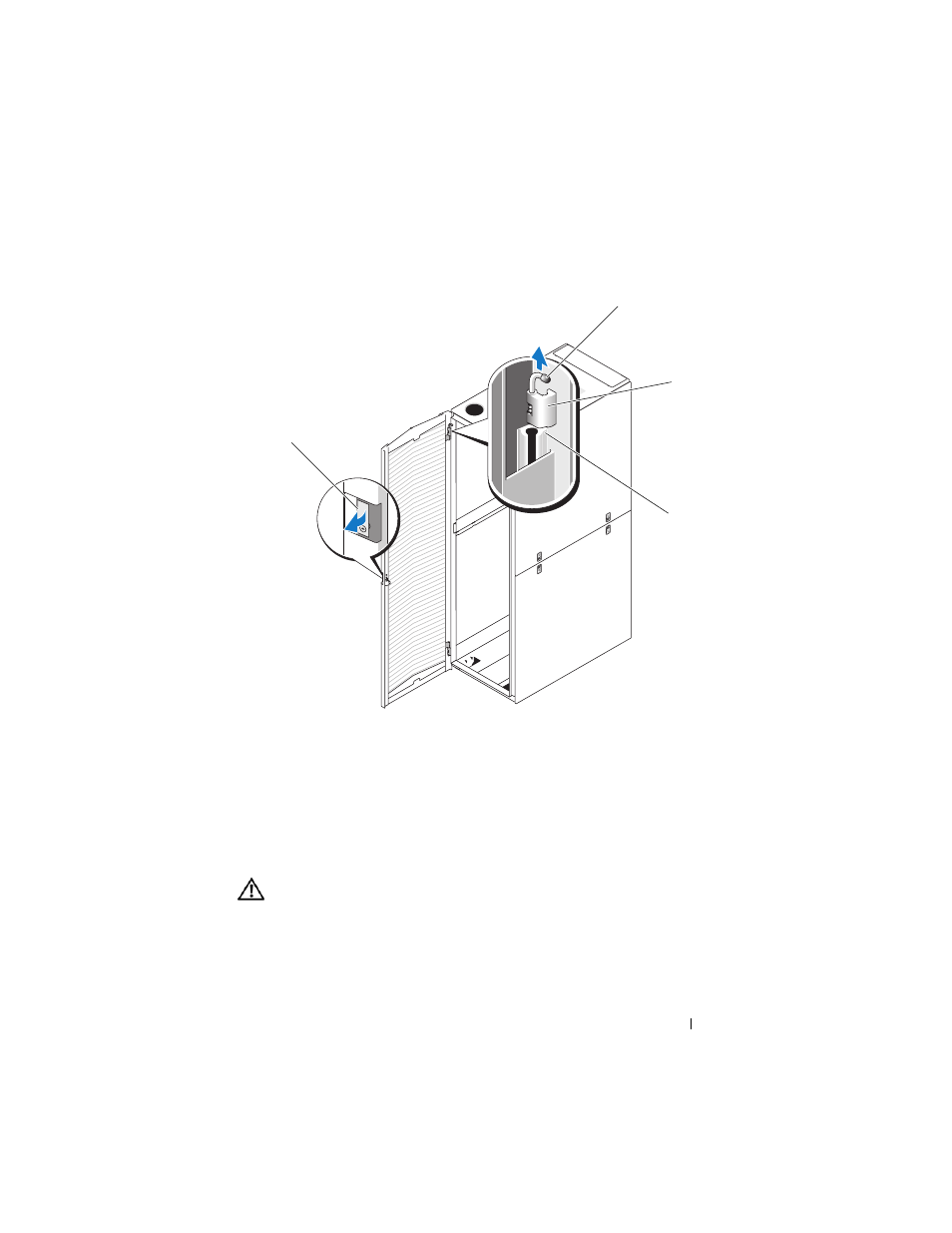

Figure 1-1. Removing the Front Door
3 While holding the hinge pin out of the door’s hinge-pin housing, pull the
door slightly away from the rack so that the door clears the hinge body.
4 Release the hinge pin.
5 Lift the door upward so that the door clears the bottom hinge post.
WARNING:
Due to the size and weight of the door, it is recommended that you lay
the removed door flat with its outer surface facing upward.
6 Lay the door in a safe location with the door’s outer surface facing upward
to help prevent damage to the door’s badge and cosmetic coating.
1 door latch 2 hinge pin
3 hinge body 4 hinge-pin housing
4
2
3
1
