Side view Top view
5"
127
5"
127
3
1
2 "
88.90
3
1
2 "
88.90
3
4 "
19.05
3
4 "
19.05
1
1
2 "
38.10
9
32 "
(x4)
7.11
1
2 "
12.70
on order
Length dependant
Installation Instructions
Vault w/ visor C-Scroll w/ visor Roundel w/ visor
These installation instructions are valid with the above Ametrix styles

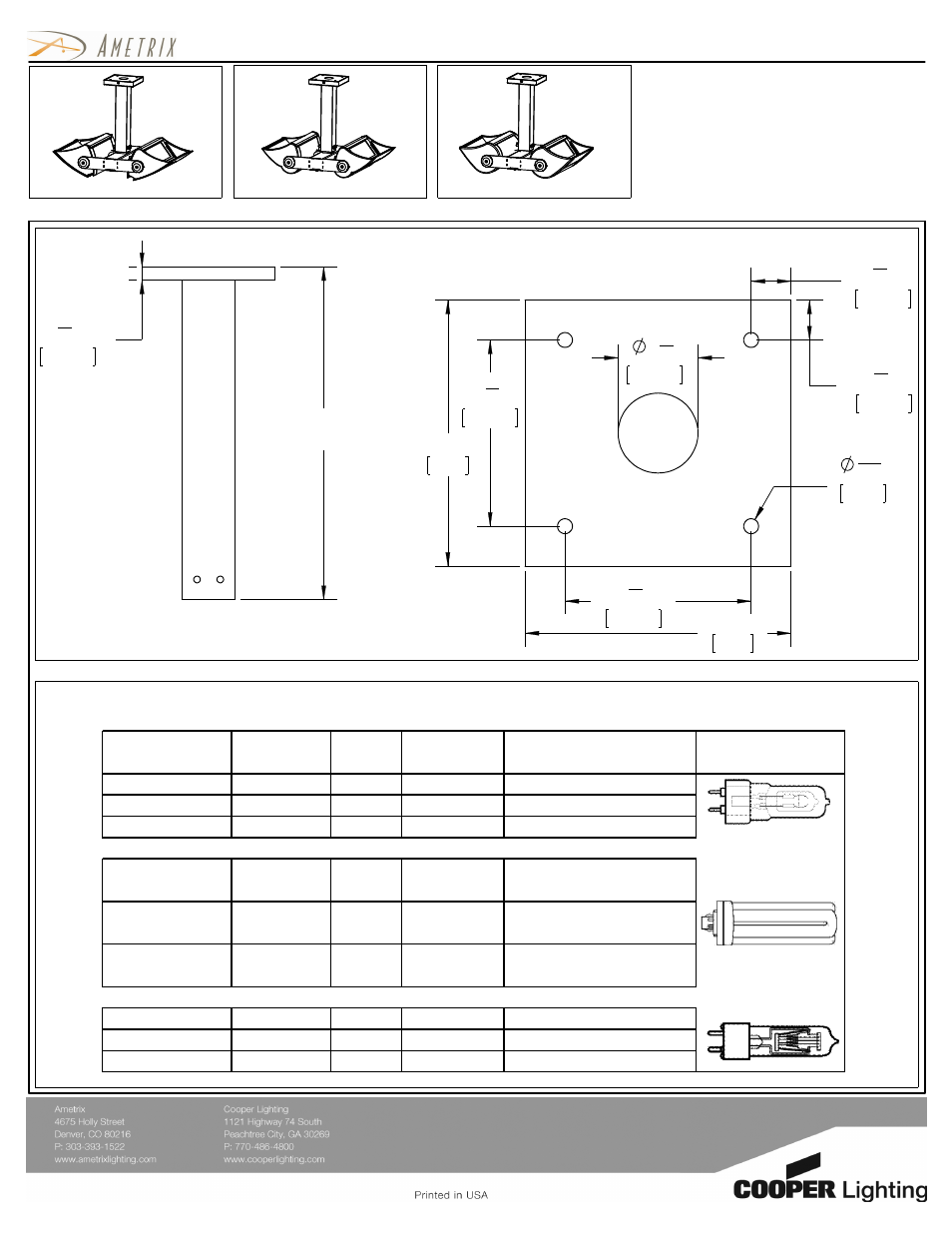

Mounting Plate Dimensions In [mm]
Lamping Size Chart
(lamps provided by others)
Warning : Before starting any work ensure
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician. Do not
mount fixtures vertically.
Small, OUTDOOR
P2R
(Pendant, 2-way, Remote ballast)
Visor and Non-Visor
Sheet 2 of 2
ADY071468 REV B(ECN80481)
Use only GE or Sylvania
SFL lamps
FIXTURE SIZE
(inches/ mm)
WATTAGE
# OF
LAMPS
LAMP TYPE LAMP DESCRIPTION
10 3/4 / 273.05 39 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 70 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 150 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 26 W 1
4-Pin Triple
Tube
Compact Fluorescent
12 3/4 / 323.85 32 W 1
4-Pin Triple
Tube
Compact Fluorescent
12 3/4 / 323.85 42 W 1
4-Pin Triple
Tube
Compact Fluorescent
10 3/4 / 273.05 100 W 1 T4 Halogen (Single Ended)
12 3/4 / 323.85 150 W 1 T4 Halogen (Single Ended)
12 3/4 / 323.85 250 W 1 T4 Halogen (Single Ended)
LAMP
(not to scale)
