iDP-3540/41 User’s Manual
CITIZEN 19/48
8. Parallel Interface
8-1. Specifications
a) Data Input system : 8 bit parallel (DATA 1~8)
b) Control Signals : ACK, BUSY, STB, FAULT, PE, RESET
c) Compatible Connector : Printer side : 57LE-40360
(AMPHENOL or equivalent)
: Cable side : 57-30360
(AMPHENOL or equivalent)

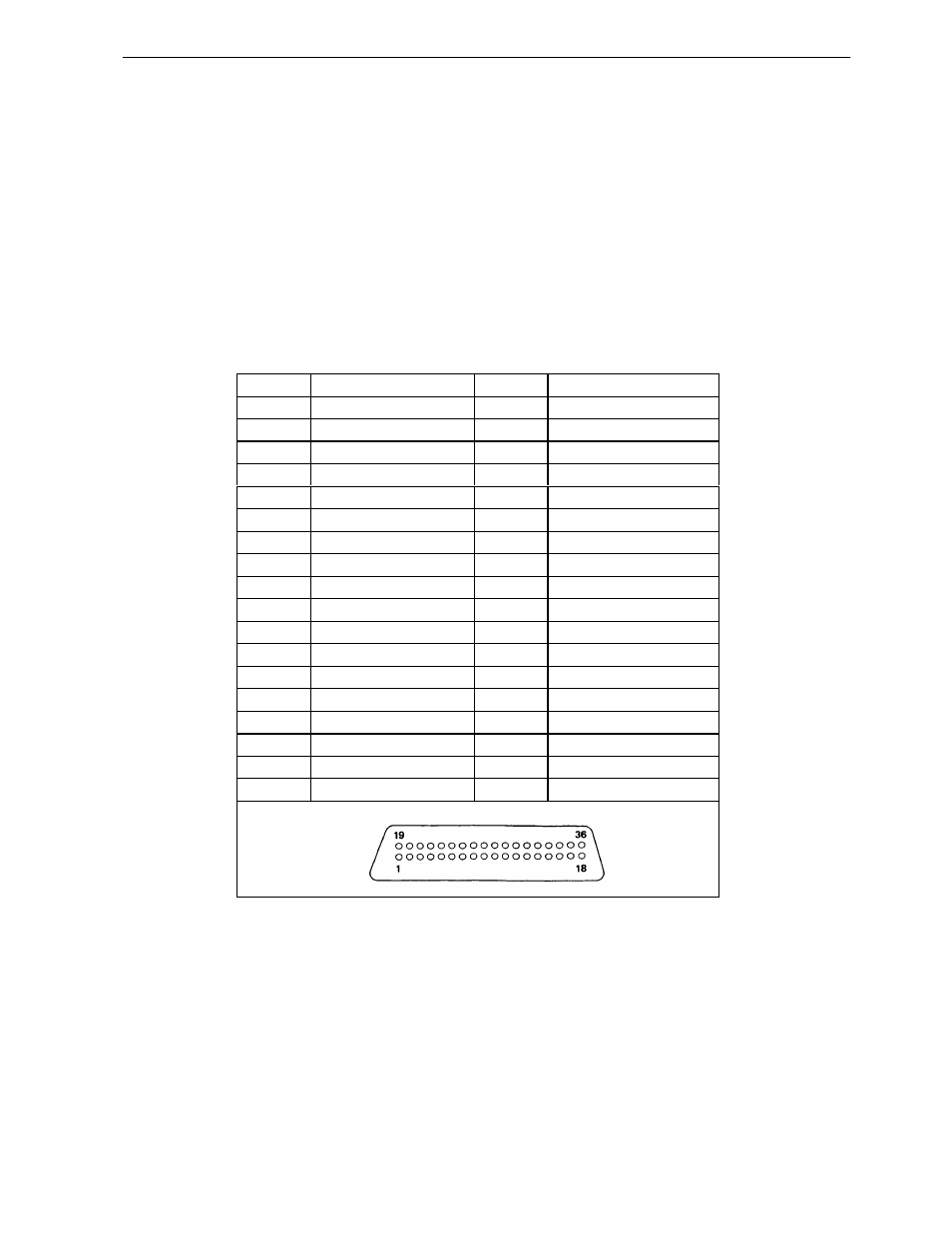

8-2. Connector Pin Assignment
Pin No. Signal Name Pin No. Signal Name
1 STB 19 Twisted Pair GND
2 DATA 1 20 “
3 DATA 2 21 “
4 DATA 3 22 “
5 DATA 4 23 “
6 DATA 5 24 “
7 DATA 6 25 “
8 DATA 7 “
9 DATA 8 27 “
10 ACK 28 “
11 BUSY 29 “
12 PE 30
13 "H" Level 31 RESET
14 GND 32 FAULT
15 GND 33
16 GND 34
17 FRAME GND 35
