6-4-2. Using Fan-Fold Paper (iDP3540P)
1) Remove the printer cover
2) Set the imprint face of the paper downward and put into the paper entrance.
3) If necessary to adjust the sprocket-wheel’s position, free the wheels using the lever on both
sides. Slide them to the appropriate position, and lock them back.
4) Hook some of the paper’s perforations on the sprockets and forward the paper into the printer
mechanism by pulling and turning the paper-feed knob until the paper’s tip reaches the platen.

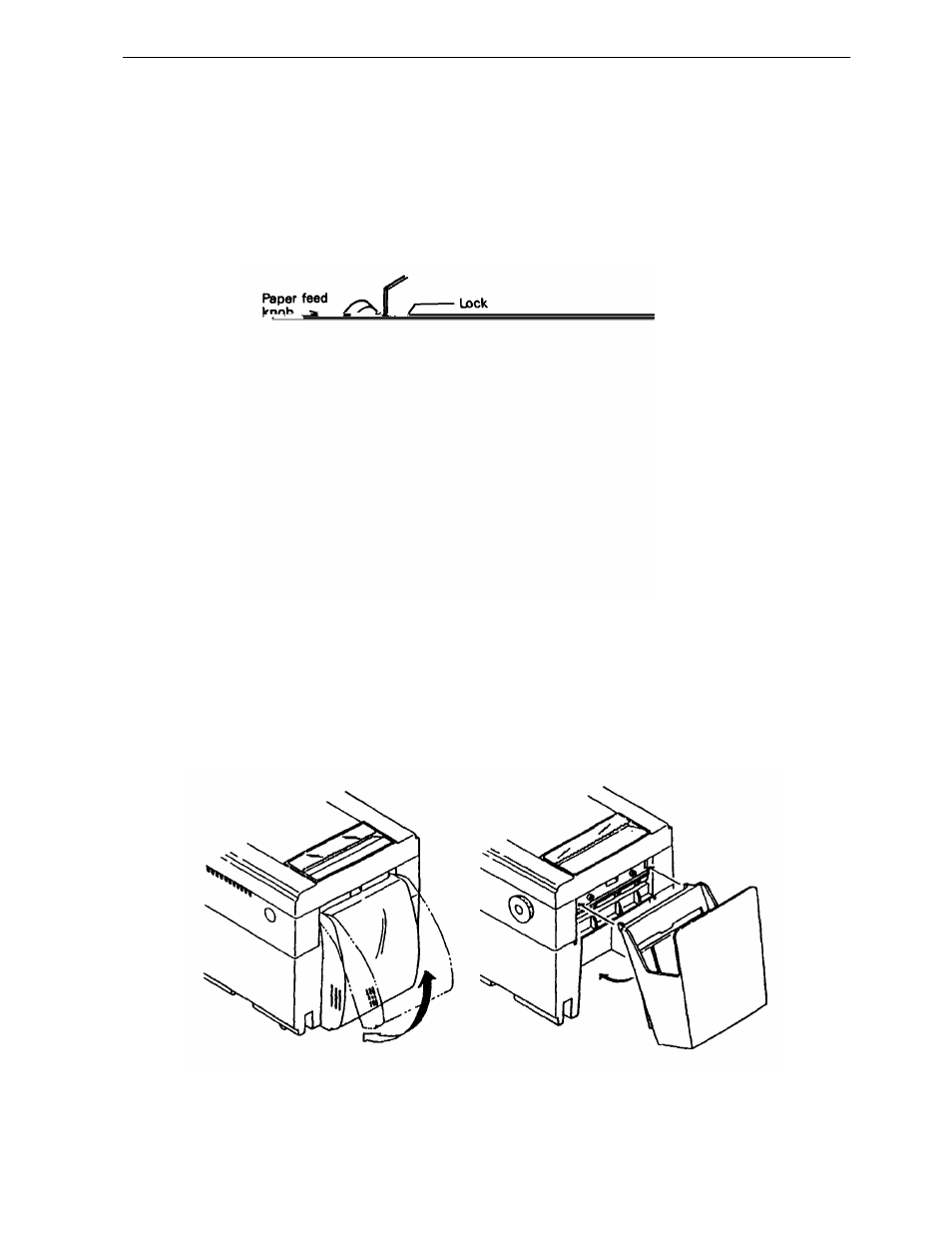

Fig. 8
6-5. Setting / Removing the Paper Cover and Stacker
1) Setting and removing the paper cover and the stacker as shown i Fig.9, 10.
2) Capacity of stacker
The maximum size of fun-fold paper sheaf which can be stored in this stacker is
3 to 3.5(W) x 6(H) x 1.6(D) inches.
Fig. 9 Fig. 10
