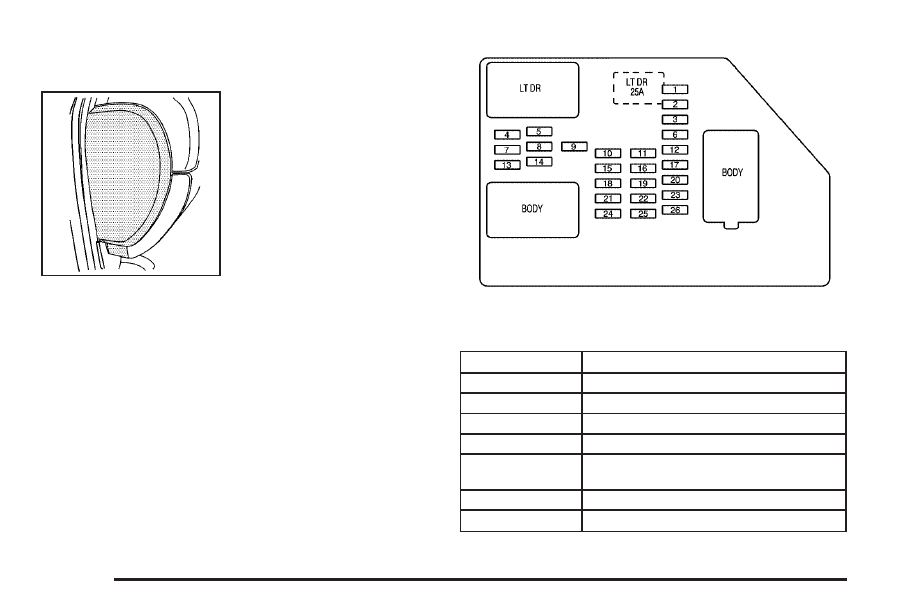

Instrument Panel Fuse Block
The instrument panel fuse
block access door is
located on the driver side
edge of the instrument
panel.
Pull off the cover to access the fuse block.
The vehicle may not use all of the fuses shown.
Fuses
Usage
1
Rear Seats
2
Rear Accessory Power Outlet
3
Steering Wheel Controls Backlight
4
Driver Door Module
5
Dome Lamps, Driver Side Turn
Signal
6
Driver Side Turn Signal, Stoplamp
7
Instrument Panel Back Lighting
6-104
