Page 13

About Your Wireless AP Router 2-2
Rear Panel
LAN 1, 2, 3,
4
❍ Off: Network device not connected or not ready
❍ On: Network device connected and ready
❍ Blinking: Sending/Receiving data via wired LAN
LED
Status

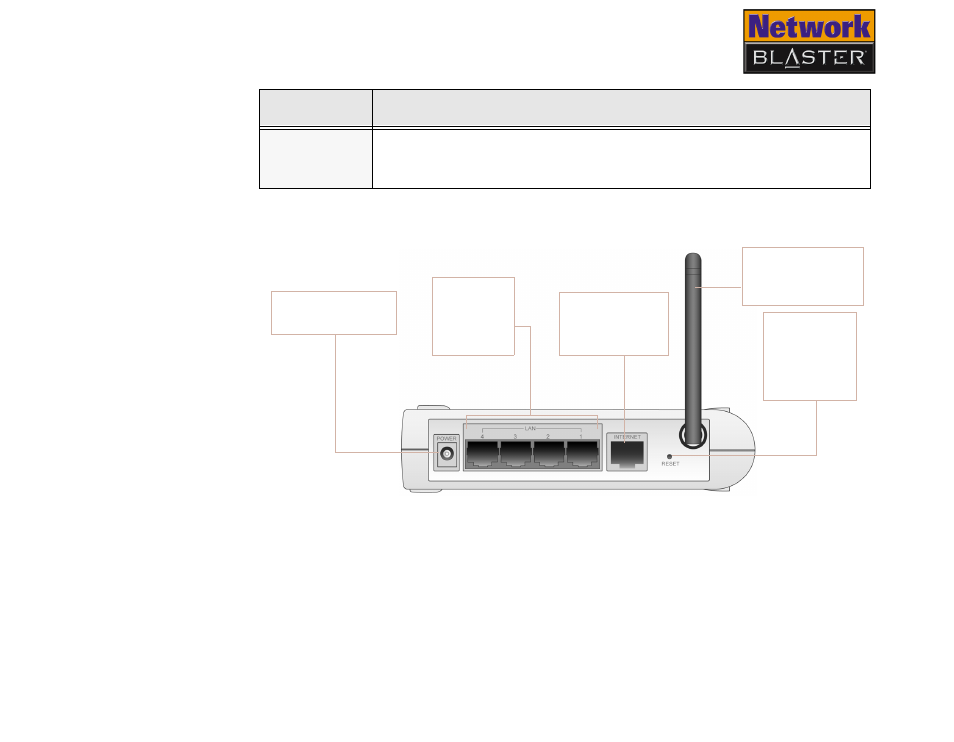

Figure 2-2: Rear panel of the Wireless AP Router
RESET button
Erases all of
your configured
settings and
replaces them
with the factory
defaults
INTERNET port
Connects to the
DSL modem or
cable modem
CW2202
LAN ports
Connect to
the Ethernet
ports of your
computer
Antenna
Sends data to, and
receives data from,
wireless clients
POWER connector
Connects to the 12 V
DC power adapter
