5.1.3.2 Example of Teaching an Object

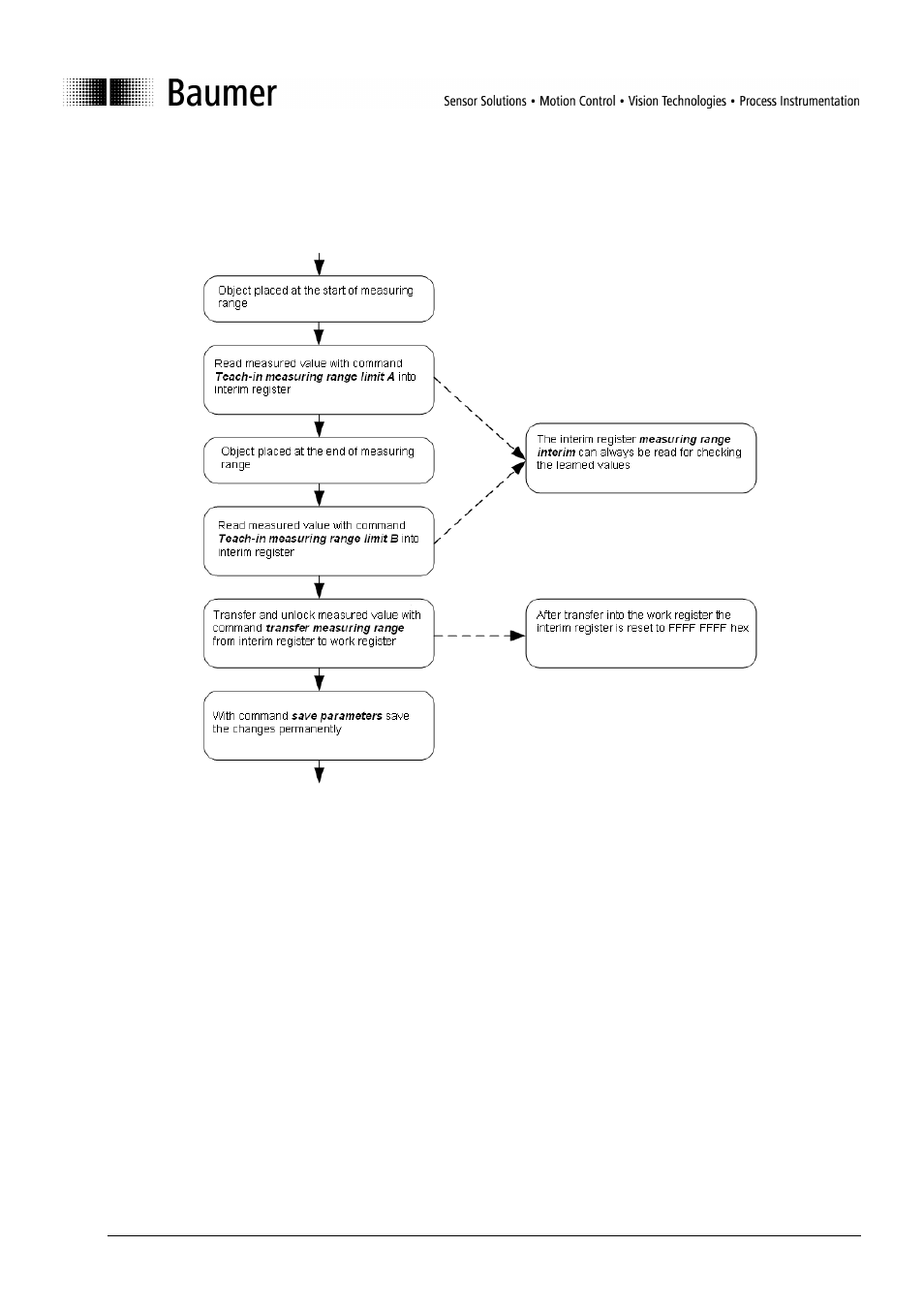

The measuring range is to be taught for an object (characteristic curve 2).
Figure 3: Teaching characteristic measuring value curves
For an inverted characteristic curve (characteristic curve 3), the distance between the sensor and Measuring
range limit A must exceed that to Measuring range limit B.
5.1.4 Error Handling
The taught measuring values lie closer together than is permitted by the learnable measuring range (20mm):
•
Error message: Interfering parameter (refer to: Table Fehler! Verweisquelle konnte nicht gefun-
den werden., Fault codes);
•
Interim register is set to FFFF FFFF hex;
•
The most recent valid values remain active.
The learned measuring value lies outside the original measuring range (measuring range on the specification
sheet):
•
Numerical teaching: Unable to write to Measuring range work; error message: Parameter value
out of range. The most recent valid values remain active.
