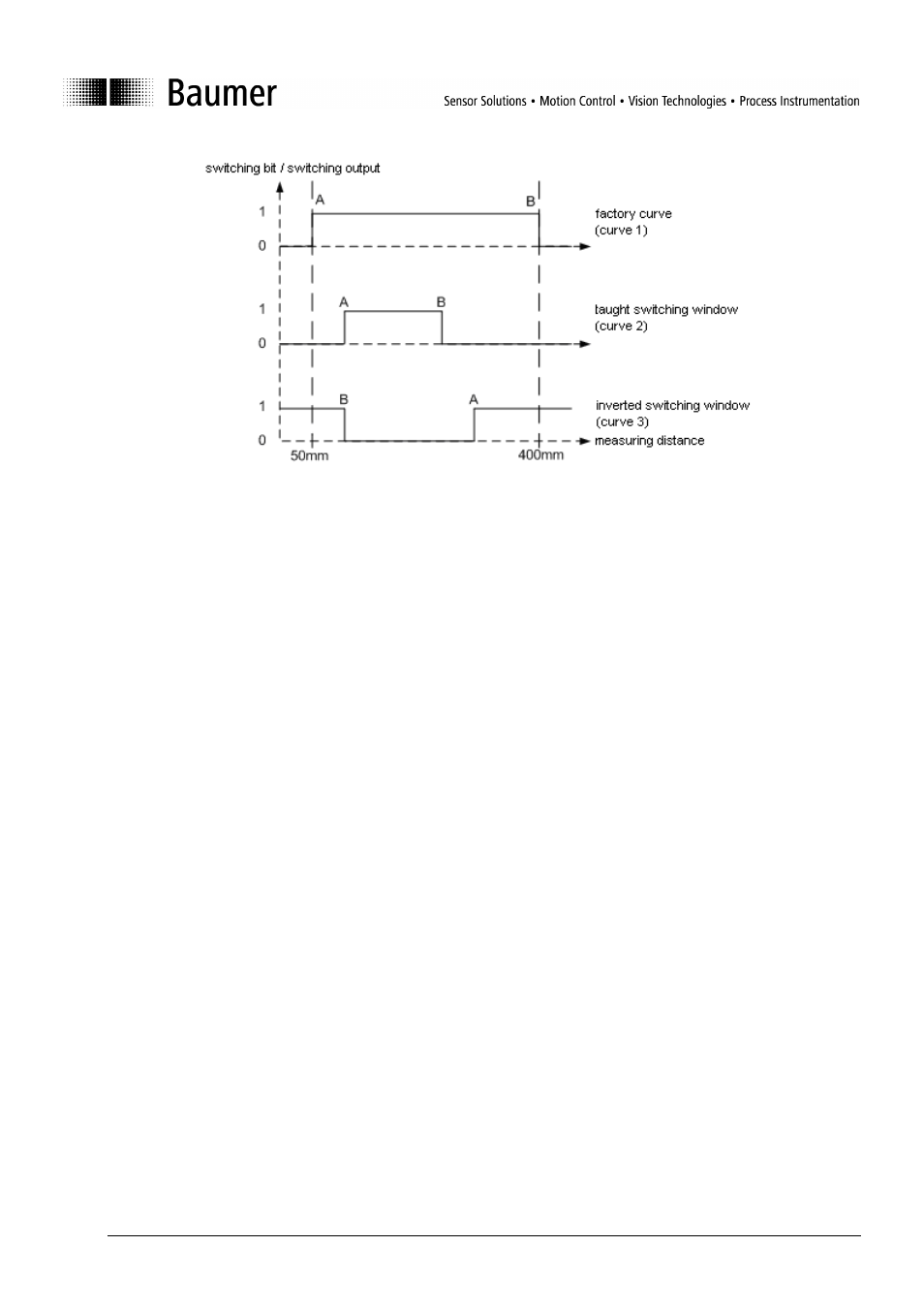

Figure 4: Possible characteristic switching curves
5.2.3.1 Example of Numerical Teaching:
1) A switching window is to be set between 150mm (A) and 300mm (B) (characteristic curve 2).
Point A, absolute value in 0.1 mm:
1500 05DC hex (= Switching point A)
Point B, absolute value in 0.1 mm: 3000 0BB8 hex (= Switching point B)
Parameter to be written:
Switching points work:
05DC0BB8 hex
Save parameters to permanently store the values!
2) An inverted switching window is to be set between 200mm (B) and 400mm (A) (characteristic curve 3).
Point A, absolute value in 0.1 mm:
4000 0FA0 hex (= Switching point A)
Point B, absolute value in 0.1 mm: 2000 07D0 hex ( = Switching point B)
Parameter to be written:
Switching points work:
0FA007D0 hex
Save parameters to permanently store the values!
