Baumer BA FADx14 IO - Manual (Page 12)

BA_FADK14IO-Link_V01-02-11_EN.doc 12/18 Baumer Electric AG
04.12.2012 Frauenfeld, Switzerland
5.2.3.2 Example of Teaching an Object
The switching window is to be taught for an object (characteristic curve 2).

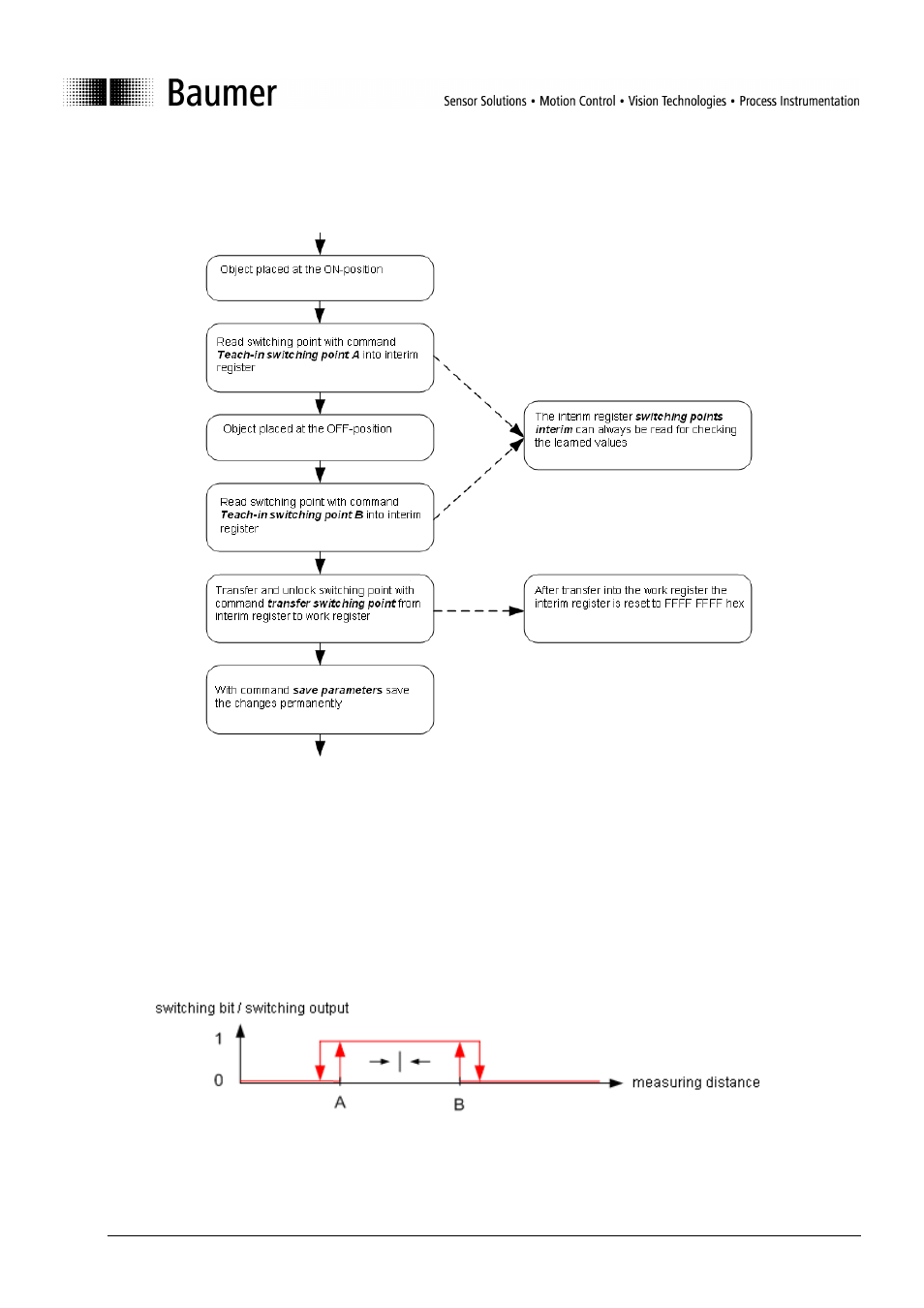

Figure 5: Teaching a switching window
For an inverted switching window (characteristic curve 3), the distance between the sensor and Switching
point A must exceed that to Switching point B.
5.2.4 Hysteresis
In the approach direction to the switching window, the sensor switches at the precisely the learned switching
points. If the switching window is then exited, a hysteresis value is then added (refer to Figure 6).
Figure 6: Switching window hysteresis
