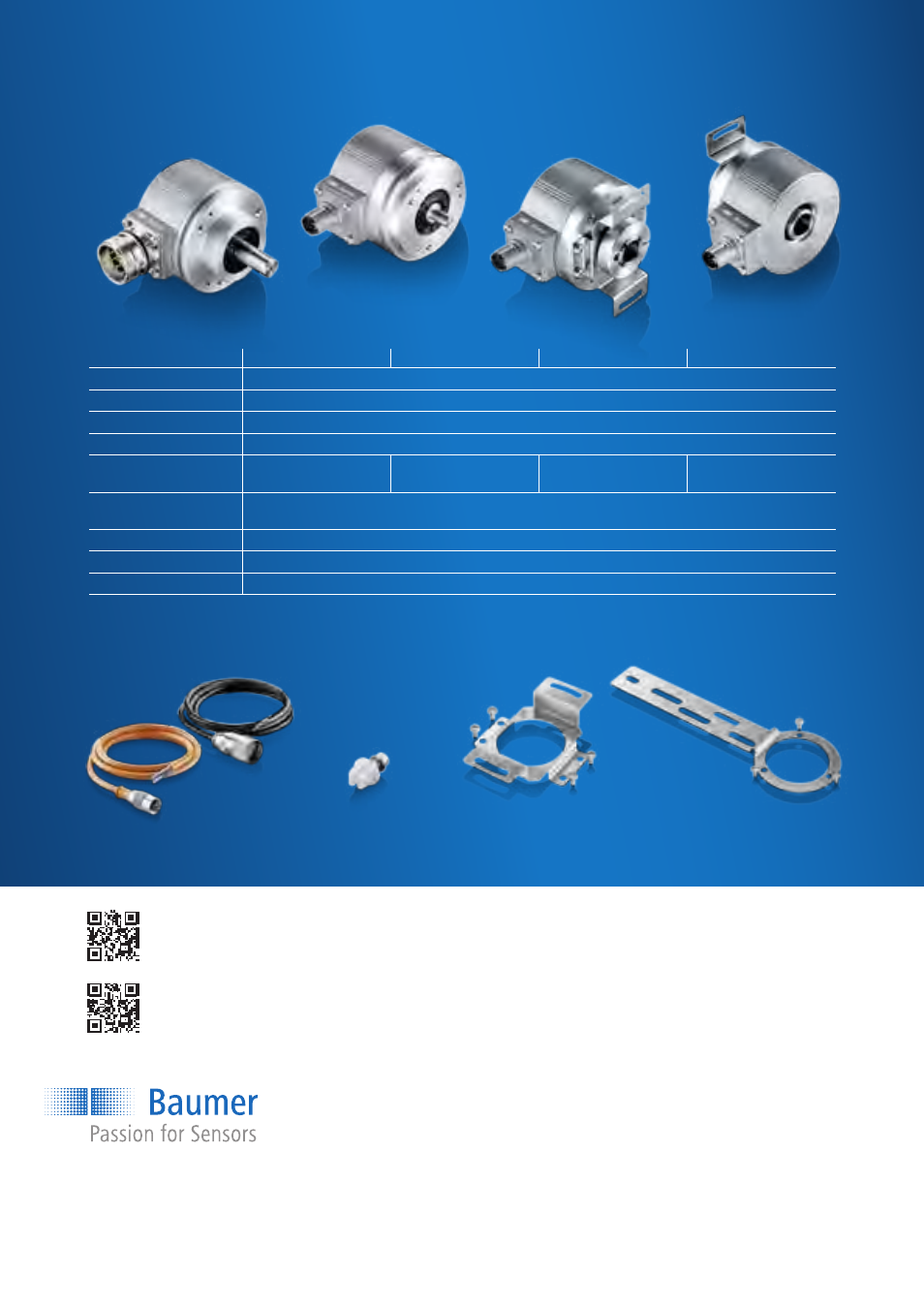

EIL580P-SC
EIL580P-SY
EIL580P-B
EIL580P-T
Technical modifications and err
ors r
eserved.
11/13 Nr
. 11119510
Latest accessory highlights
EIL580P-SC
EIL580P-SY
EIL580P-B
EIL580P-T
Sensing method
Optical
Size
ø 58 mm
Voltage supply
4.75 ... 30 VDC
Output stages
HTL/push-pull or TTL/RS422, programmable
Shaft type
Solid shaft ø10 mm
Clamping flange
Solid shaft ø6 mm
Synchro flange
Blind hollow shaft
ø 8...15 mm
Through hollow shaft
ø 8...15 mm
Connection
Radial, axial: Flange connector M23 or M12, with cable
Tangential: cable outlet
Pulses per revolution
1... 65536, programmable
Protection
IP 67 with shaft seal, IP 65 without
Operating temperature
–40 ... +100 °C
Varied cable outlet and
connector options for
any housing design and
installation condition
Clip for easy mounting on
top or underneath the fan
guard with 8 mm grid
Optimally matching
stator coupling
Torque support optionally cut
to length for universal installation
Product overview OptoPulse EIL580P
Learn more about our OptoPulse EIL580 encoder series at
www.baumer.com/optopulse
You will encounter our complete portfolio of incremental and absolute encoders at
www.baumer.com/motion
