OptoPulse EIL580P
Flexible, robust, precise.
„ „ Robust mechanics with ShaftLock bearing feature
„ „ Extraordinarily durable
„ „
Optical sensing technology,
up to 65536 pulses per revolution
„ „
Operating temperature from
-40 °C to +100 °C
„ „ High protection up to IP 67
„ „ Speed up to 12000 rpm
„ „
Excellent price-performance ratio
„ „
One-stop source for encoders
and accessories
There are many benefits of the OptoPulse EIL580P programmable
encoder and its multiple configuration options:
„ „ Any resolution programmable from
1 to 65536 pulses per revolution
„ „
Programmable pulse sequence
„ „
Output stage HTL or TTL
„ „
Reference pulse setting function
„ „
Reference pulse 90° or 180°
„ „ Universal voltage supply from 4.75 to 30 VDC
„ „ Eletronic product label
„ „
Convenient programming via handheld tool,
PC software or software library
Additional benefits of the flexibility and efficiency of the
OptoPulse modular encoder family:
„ „
Cost-efficient realization of individualized,
even high-resolution ppr
„ „ Rapid setup by reference pulse setting function
„ „ Quick, efficient exchange and retrofit
„ „
Eliminating downtime
„ „
Electronic product label, ensuring full traceability
„ „
Less product variety, reducing inventory cost
(e.g. spare parts)
„ „ Enhanced flexibility, speeding up order processing
and delivery time
„ „ Simplified component management, reduced inventory
and handling cost
Reducing inventory cost and
shortening delivery time.

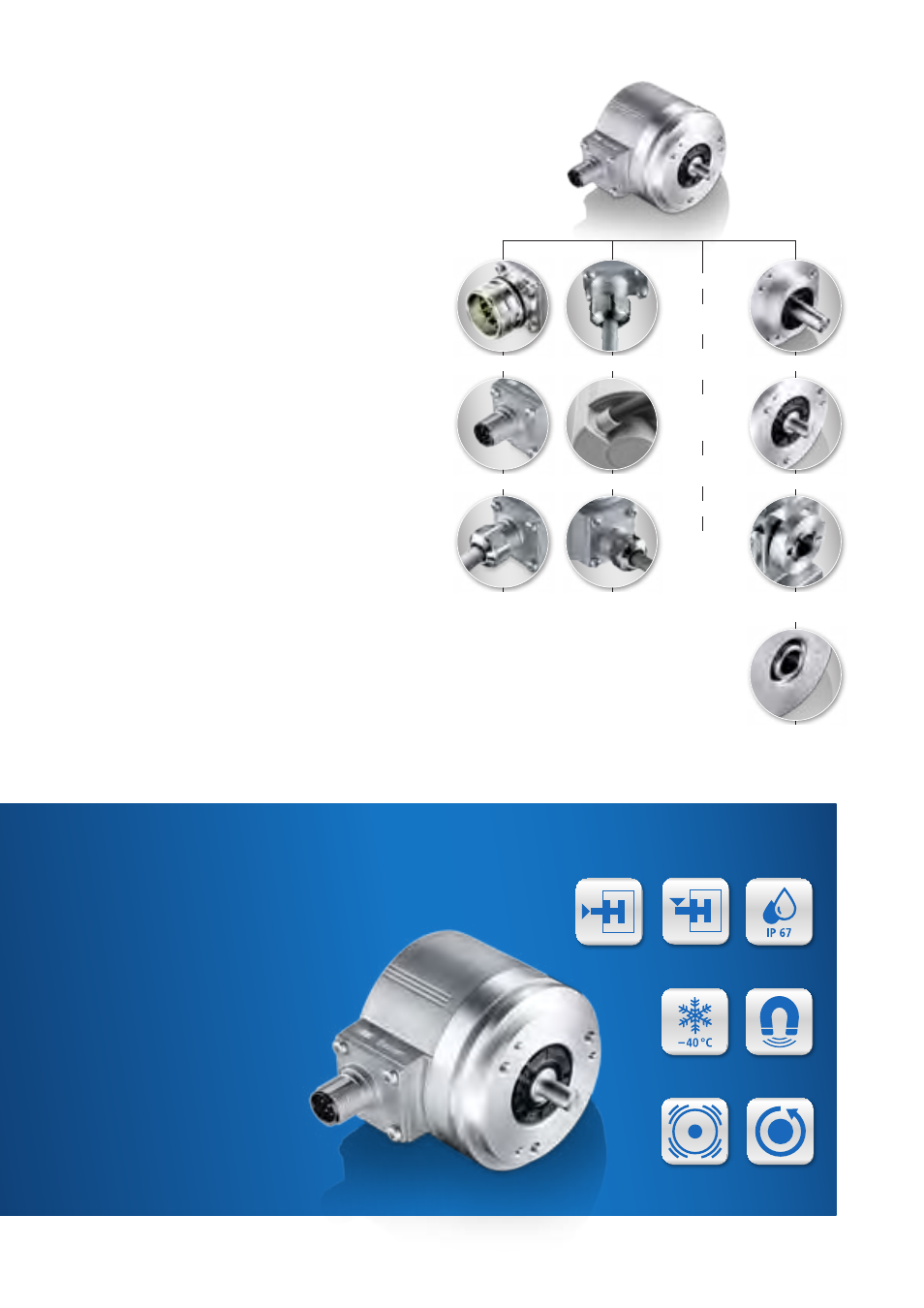

ShaftLock
Magnetic
immunity
High
protection For high shaft
loading
Shock and
vibration proof High speed
Low
temperatures
Clamping flange M 23, 12-pin
Tangential
Radial
Synchro flange M 12, 8-pin
Axial Blind hollow
shaft
Cable
Through-hollow
shaft
TTL / HTL
Pulse
sequence
1...65536 pulses
per revolution
Reference
pulse setting
function
Reference pulse
90° or 180°
4.75...30 VDC
Electronic
product label
