8. Press down firmly on the HSIM-W85 until the connector slides all the
way onto the HSIM pins. Ensure that the standoffs on the standalone
device align with the standoff screw holes on the HSIM-W85.
9. Secure the HSIM-W85 to the module faceplate using the mounting
screws saved in
step 5 .
10. Secure the HSIM-W85 to the module standoffs using the standoff
screws included in the HSIM-W85 shipping materials.
11. Replace the chassis cover on the standalone device, reconnect the
power cord, and reconnect the standalone device to the network.
2.3 CONNECTING THE HSIM-W85 TO THE NETWORK
The HSIM-W85 is connected to the carrier’s DS1 service using twisted
pair cable. The cable may run a maximum of 5000 feet or greater,
depending on the dB loss of the cable. Refer to
Appendix A for more
details on cable length. The Cabletron Systems part number for the T1
cable is 9732094.

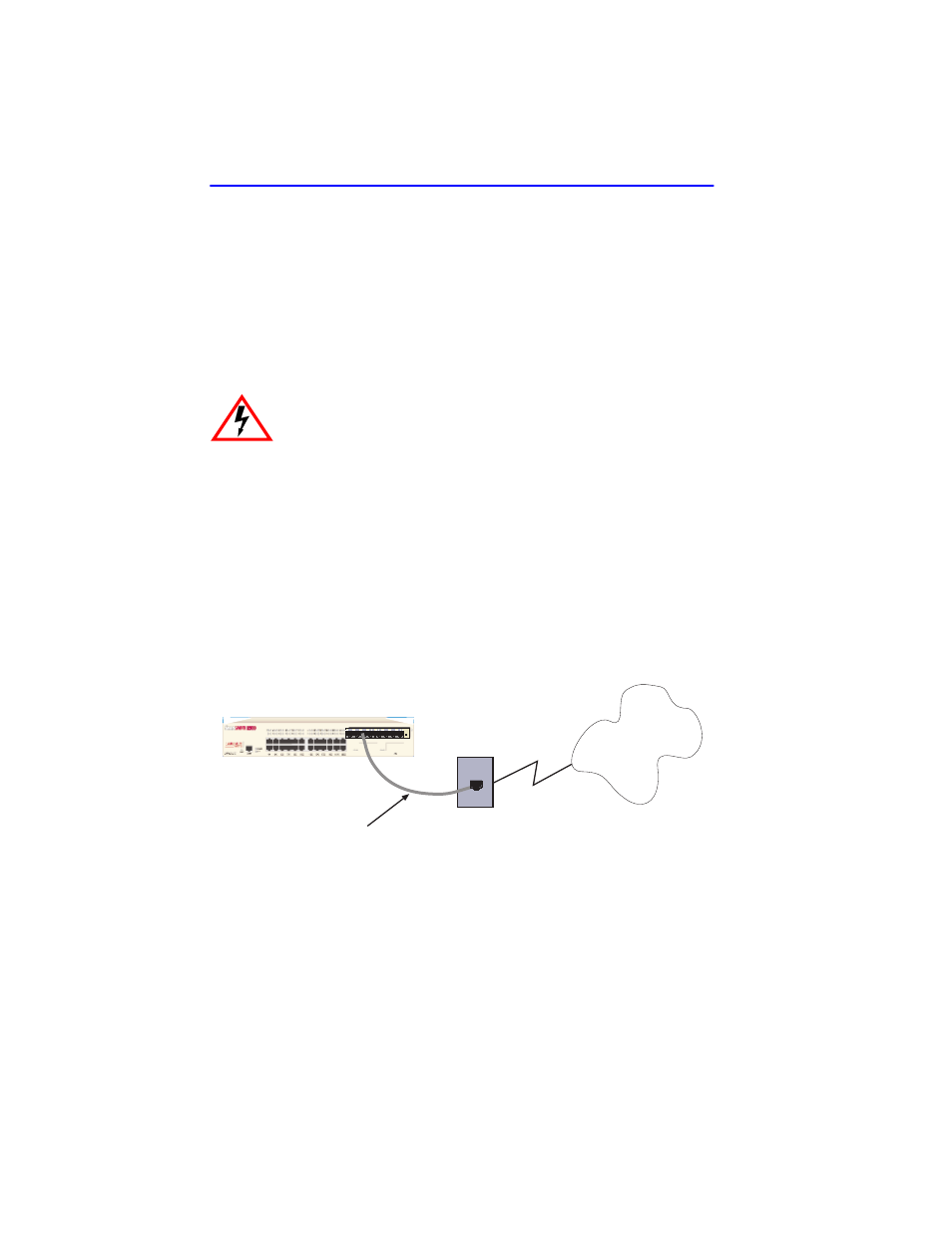

Figure B-3 HSIM-W85 Cable Connection
For information on configurations for the HSIM-W85, refer to
Appendix B .
Ensure that the chassis cover is in place before reconnecting
the power cord.
Telco Cloud
2842_1
2E42-27 with HSIM-W85
HSIM-W85
CPU
L S L S L S L S L S L S L S L S
Wall Jack
Cable Part
Number:
9372094
