DWZZH 16–Bit UltraSCSI Hub (Rack-Mountable)
2–2 EK–SMDZS–UG. B01
2. Install and secure tri-link in storage port of right-hand SBB (-A5). Then
install and secure the opposite end of the cable in the storage port of the left
hand SBB (-05), Figure 2-2.

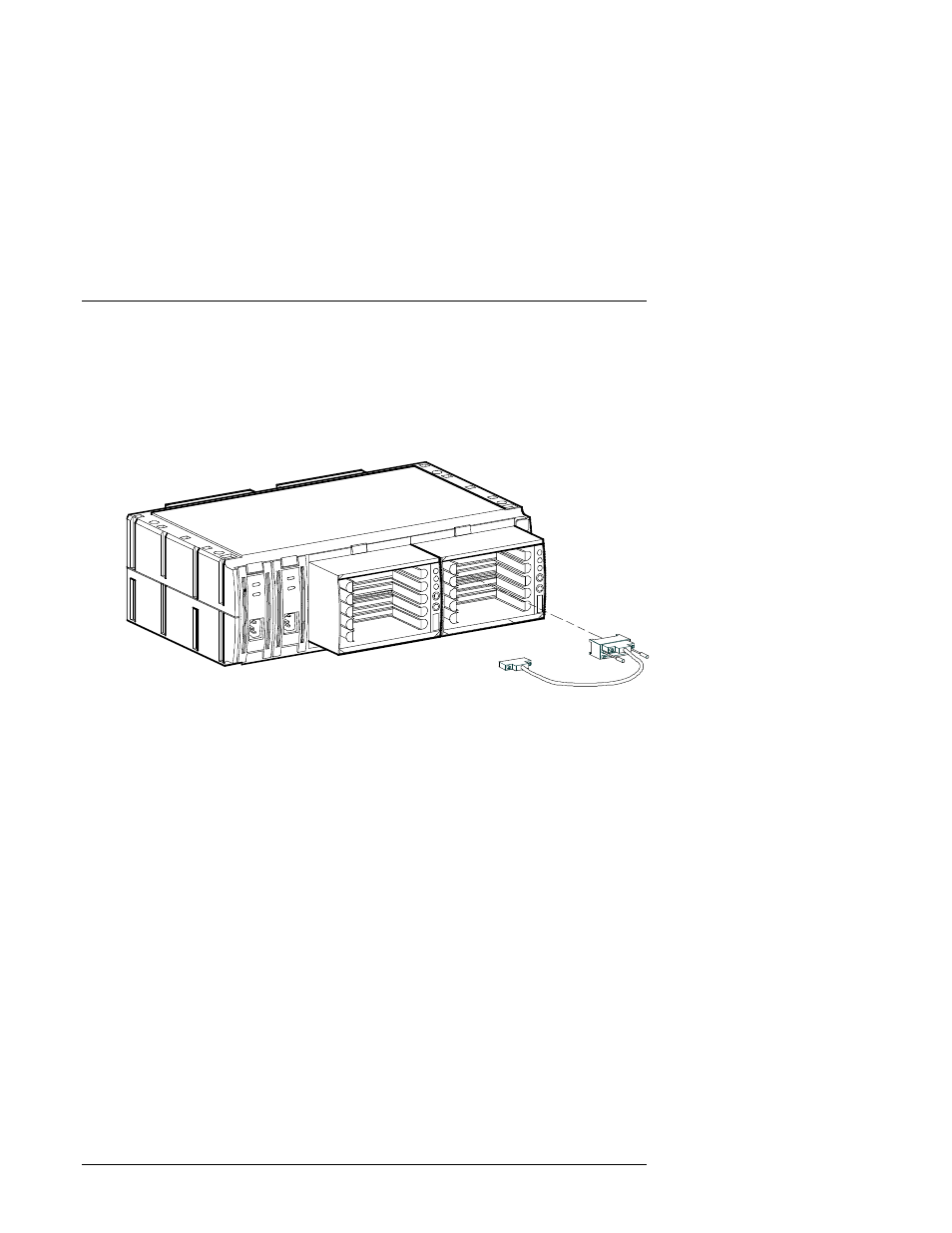

Figure 2-2 Install Tri-link and Cable in Storage Ports of SBBs
S H R-111 0
3. Install power cords in power supplies on unit.
4. Attach the cables from your host bus adapters to their respective ports on the
DS-DWZZH-09. Refer to Chapter 3, Figure 3-2 for the SCSI ID port
assignments on the DS-DWZZH-09.
5. Connect your storage subsystem via cable to the remaining port on the
tri-link attached to the right-hand SBB of the DS-DWZZH-09.
