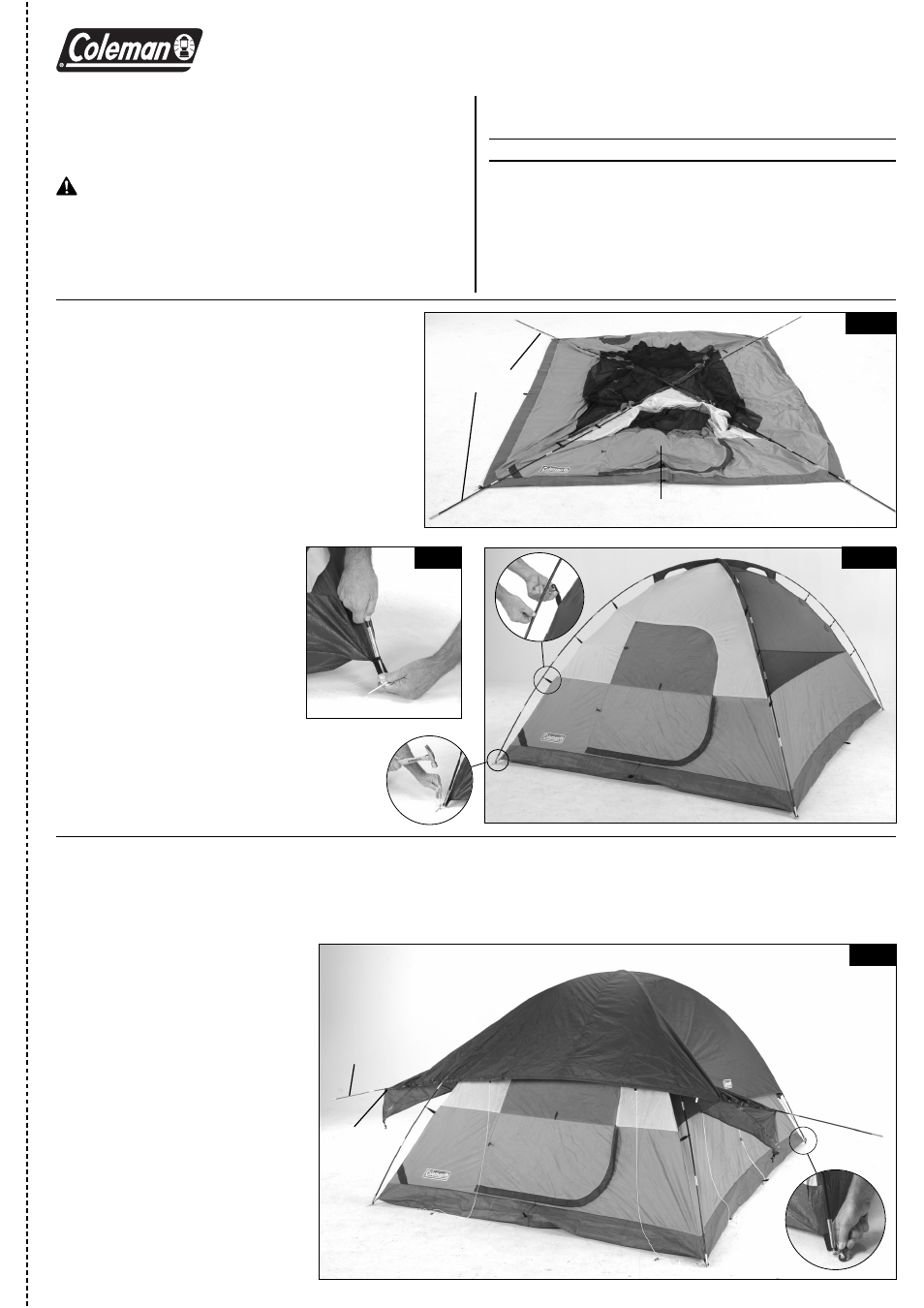

Coleman 2000001080 - Manual

4. Insert one end of each black pole
into pins in front corners of tent.
(Fig. 2)
5. Go to opposite end of each pole
and gradually apply pressure to
the pole forming an arch. Insert
the pin into the pole end at the
corners of tent. (Fig. 3)
6. Attach frame clips along edges
of tent to black main poles.
(Fig. 3A)
7. Stretch corners and sides of tent until floor is
taut then hammer stakes through loops to
secure. (Fig. 3B)
STITCH LINE
HOLIDAY DOME TENT 12’ X 10’
MODEL 2000001080
Before you begin
Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard
or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees.
• For best results in windy conditions, position end of tent into
the wind.
• Enlist the help of at least one other person to assist you when
it is time to assemble the tent.
Fig. 2
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface
with the door facing the desired direction. (Fig. 1)
2. Assemble two main tent poles by interlocking the
longer, black shock-corded, poles.
3. Insert both, long, black poles through sleeves in top
of tent as shown. (Fig. 1)
Fig. 3
Parts and Components
Description Part Number
Main Poles, Long, Black (2) 5010000364
Rainfly Awning Pole, Thin, Black (1) 5010000365
Rainfly 5010000366
1. Assemble longer interlocking shock-corded rainfly pole.
2. Unfold rainfly. Locate the sleeve, along front edge, and the hook & loop fasteners on the underside of rainfly.
3. Drape rainfly over tent. Make sure the sleeve is centered over the door and the hook & loop fasteners, on the underside of the rain
fly, are positioned over the black
main poles.
4. Clip hooks on elastic cords, on the
back corners of rainfly, onto metal
loops at back corners of tent.
(Fig. 4A)
5. Slide rainfly pole through sleeve at
front of the flap. (Fig. 4)
To Attach Rainfly
(continued on other side)
Fig. 1
Door
Fig. 4
Rainfly
Awning Pole
Sleeve on
Front of
Rainfly
Long, Black,
Shock-corded
Main Poles
3A
Door
3A
3B
