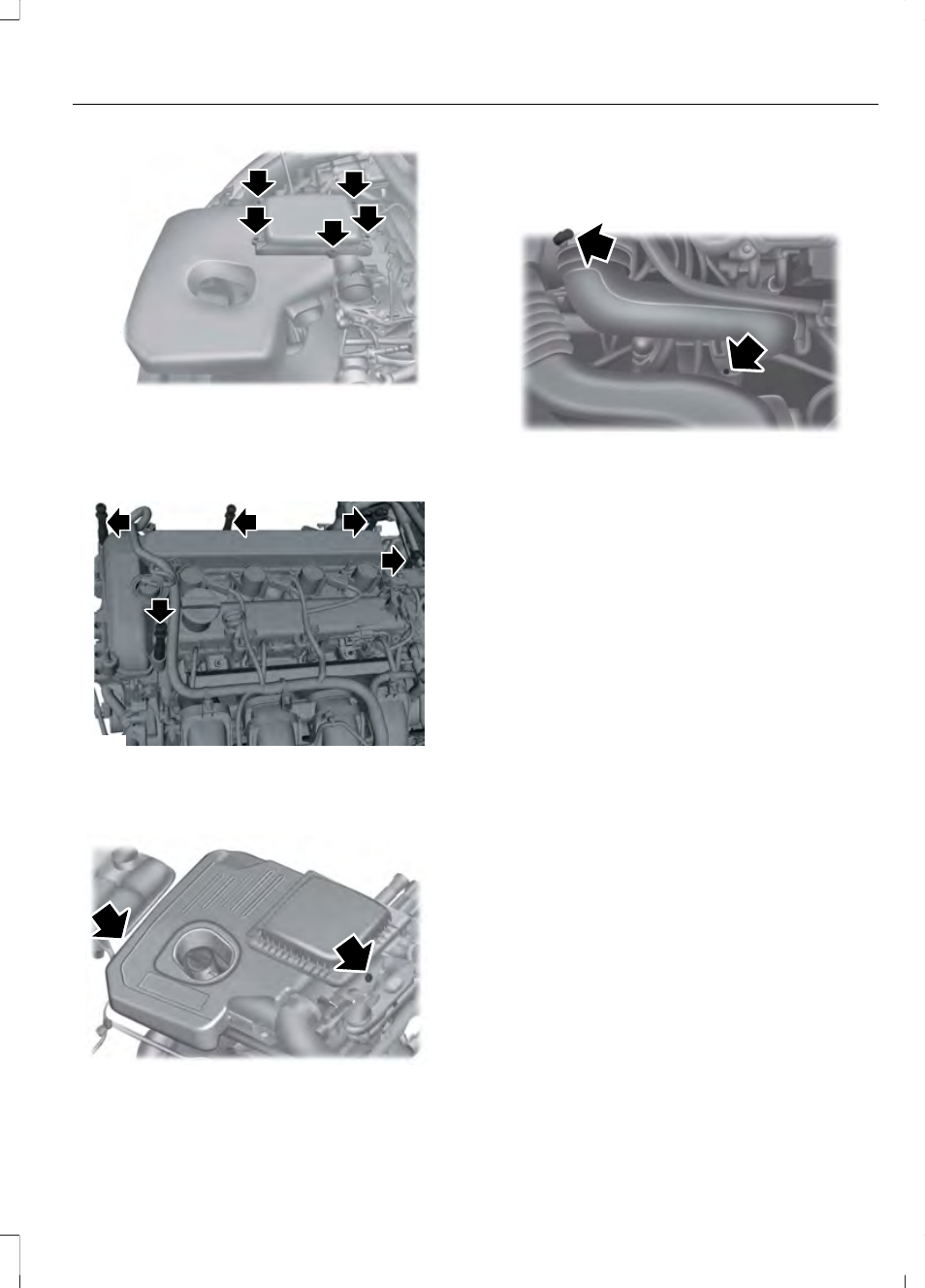

E162538

1.

Install the new engine air filter into the
engine air cleaner assembly.

2. Install the air cleaner cover (B) and

tighten the 5 bolts.

E162539

3. Position the air cleaner assembly (A)

onto the engine and make sure the
assembly is aligned with the studs.

E162540

4. Install and tighten the bolts to each

side of the air cleaner assembly (A) as
shown with arrows.

E162541

5. Install and tighten the bolts to each

side of the air cleaner assembly (A) as
shown with arrows.

6. Connect the PCV tube (D) to the air

cleaner outlet tube ©).

7.

Connect the air cleaner intake tube (E)
to the air cleaner assembly (A).

231

C-MAX (CCG)

Maintenance
