11

12

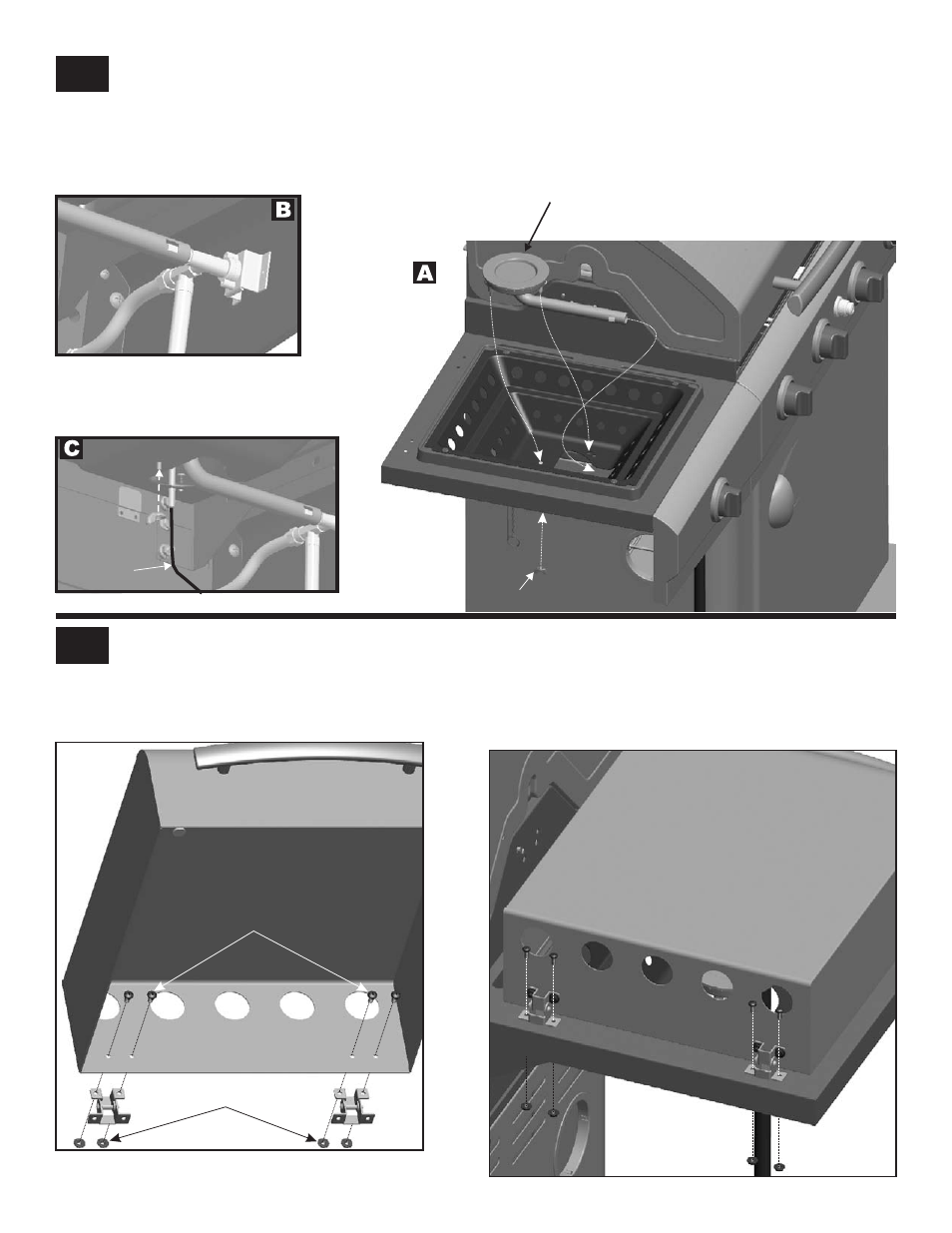

Attach and fully secure hinges to lid with four

#8-32x3/8" screws, #8-32 flange nuts first. Place sideburner lid onto left side

shelf and align hinges to holes on side shelf top. Attach sideburner lid assembly to side shelf using four

#8-32x3/8" screws,

#8-32 flange nuts.

Sideburner Lid

#8-32x3/8" screw

#8-32 flange nut

Insert sideburner burner into sideburner drip pan

(A), making sure burner tube engages sideburner valve. See illustration (B)

for proper burner-to-valve engagement. Center stud on bottom of burner fits into center hole in sideburner drip pan. Secure
burner to drip pan with one wing nut

(C). Finally connect sideburner ignitor wire to sideburner electrode.

Burner tube

Valve

Sideburner

Ignitor Wire

Sideburner Burner

Wing Nut

22
