5

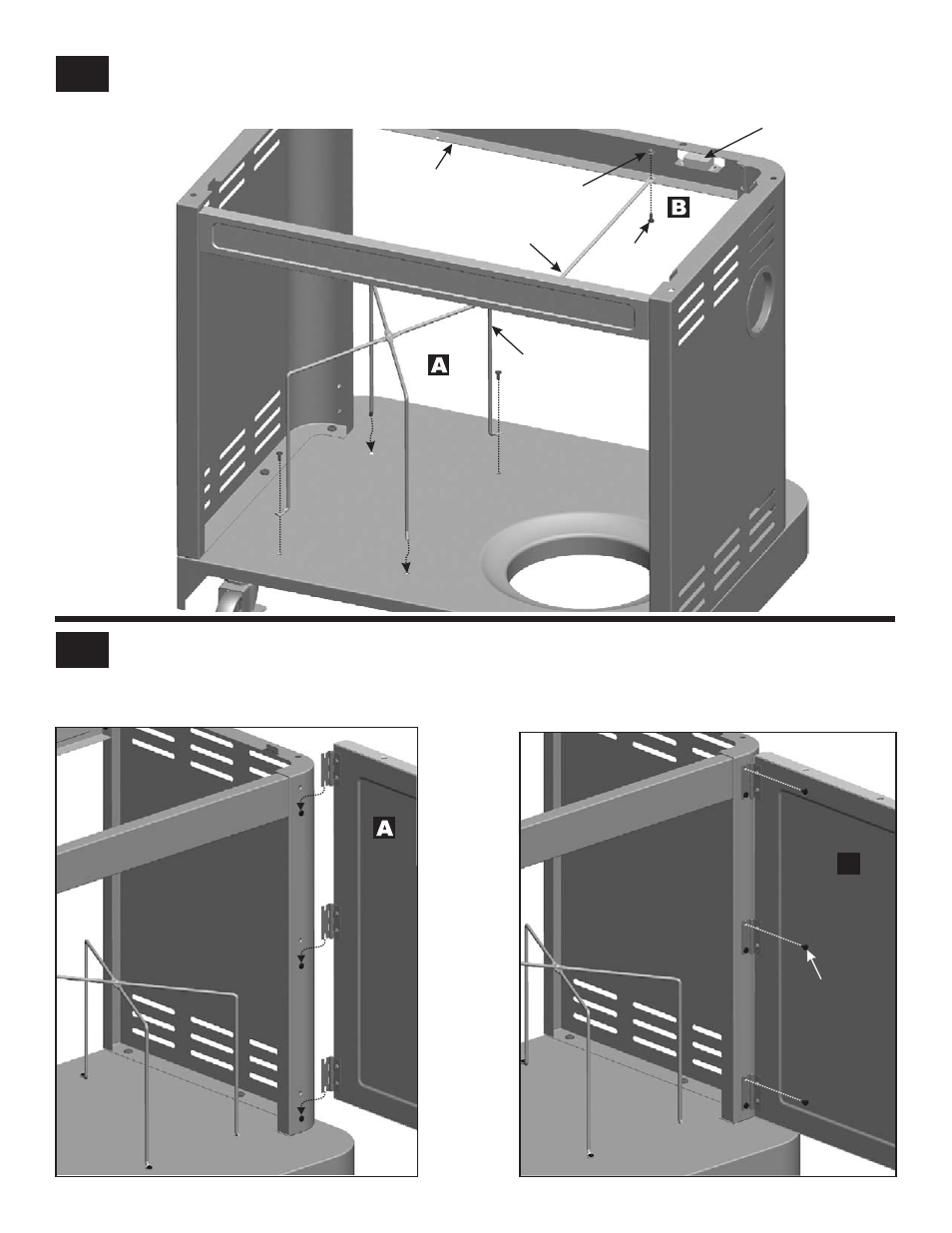

6 Slid the door hinges onto the screw with arrow direction as indicated. Secure the door with all six #8-32x3/8" machine screws (A).
Screw two
#8-32x3/8" machine screws in the cart side panel (B).
B
#8-32x3/8”
machine screws
Insert wire ends on lower tank exclusion wire into bottom shelf
(A). Attach with two #8-32x3/8" screws diagonally. Place
upper tank exclusion wire on front brace and back brace as shown, secure with two
#8-32x3/8" screws and #8-32 flange
nuts (B) .
Front brace
#8-32x3/8"
screw
#8-32
flange nut
Upper tank
exclusion wire
Lower tank
exclusion wire
Magnet
19
