Operation – Humboldt HM-1327 Humboldt Marshall/TSR Loader User Manual
Page 11
Operation
Power Switch
The Power Switch is located in the back panel on the rear of the machine
above the electrical cord inlet. Also, located between the electrical cord
inlet and the Power Switch is the Fuse Compartment. The HM-1327 uses a
10 amp fuse. To begin operation, press the Power Switch.

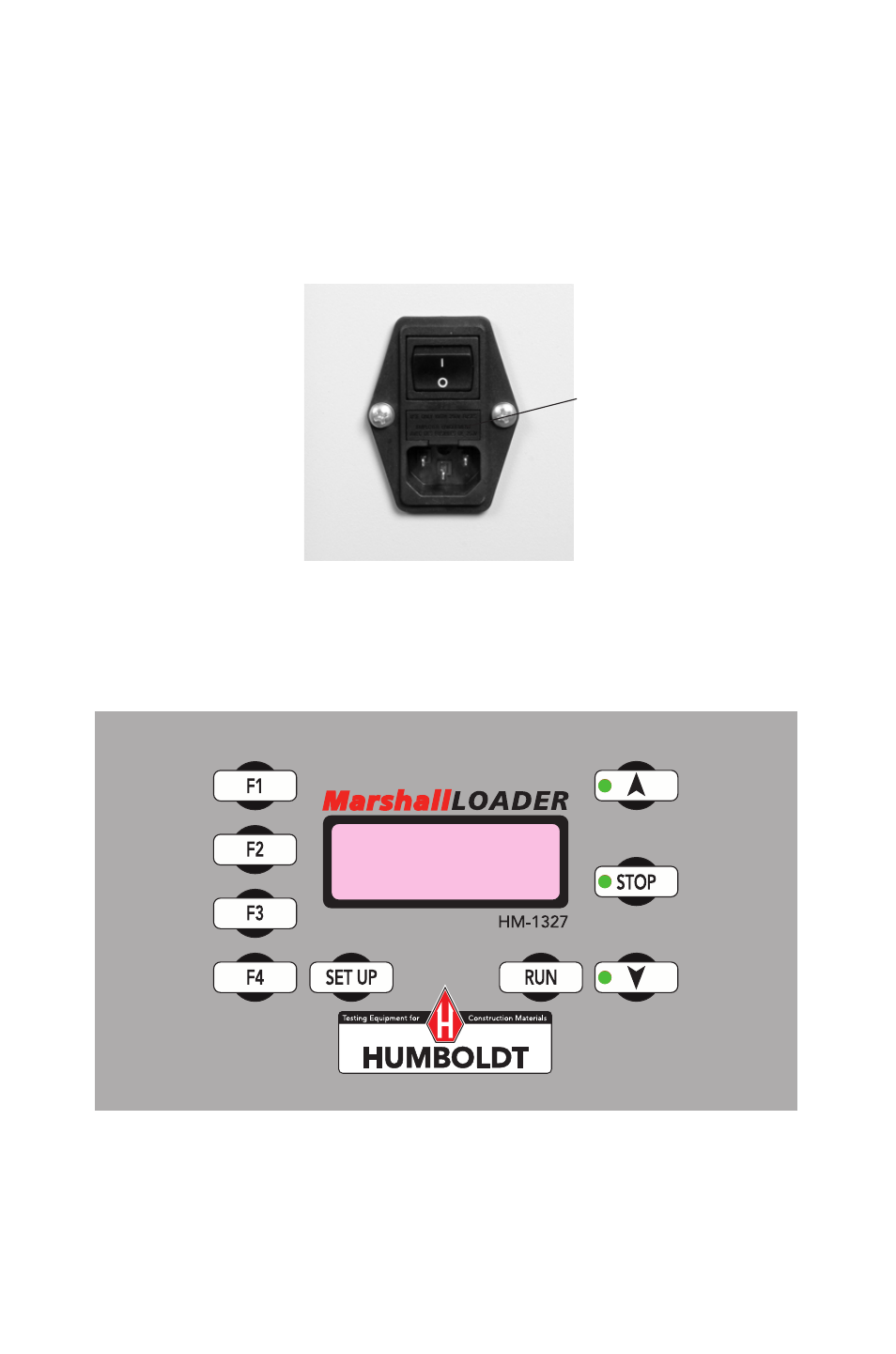

Figure 10. HM-1327 Power Switch, Electrical Cord Inlet and Fuse
Compartment.
Figure 11. HM-1327 Front Control Panel
Key Functions
Fuse Compartment.
8
