Computer Connection
Single Device Connection
The HM-1327 can be connected to a PC computer to take advantage of
Humboldt’s HMTS software capabilities, conduct real time data logging
and enhanced report generation, or with the HM Download Software to
download tests performed directly on the device. This is accomplished via
the RS-232 port on the back panel of the machine (refer to Figures 7 & 8.).
Use a RS-232 cable (supplied) and attach it between the computer’s RS-232
port and the HM-1327.
The minimum compatible computer configuration is a PC with Pentium III
800 MHz processor, 512 MB of RAM and a 40GB hard drive. Windows 2000
or XP with SP2 or later.
Analog Device Connection
The HM-1327 can be set up to output directly to a chart recorder to provide
a hard copy printout of test results. To accomplish this, connect your chart
recorder via cable attached to the HM-1327’s Analogue port on the back
panel (see Figure 7).
7

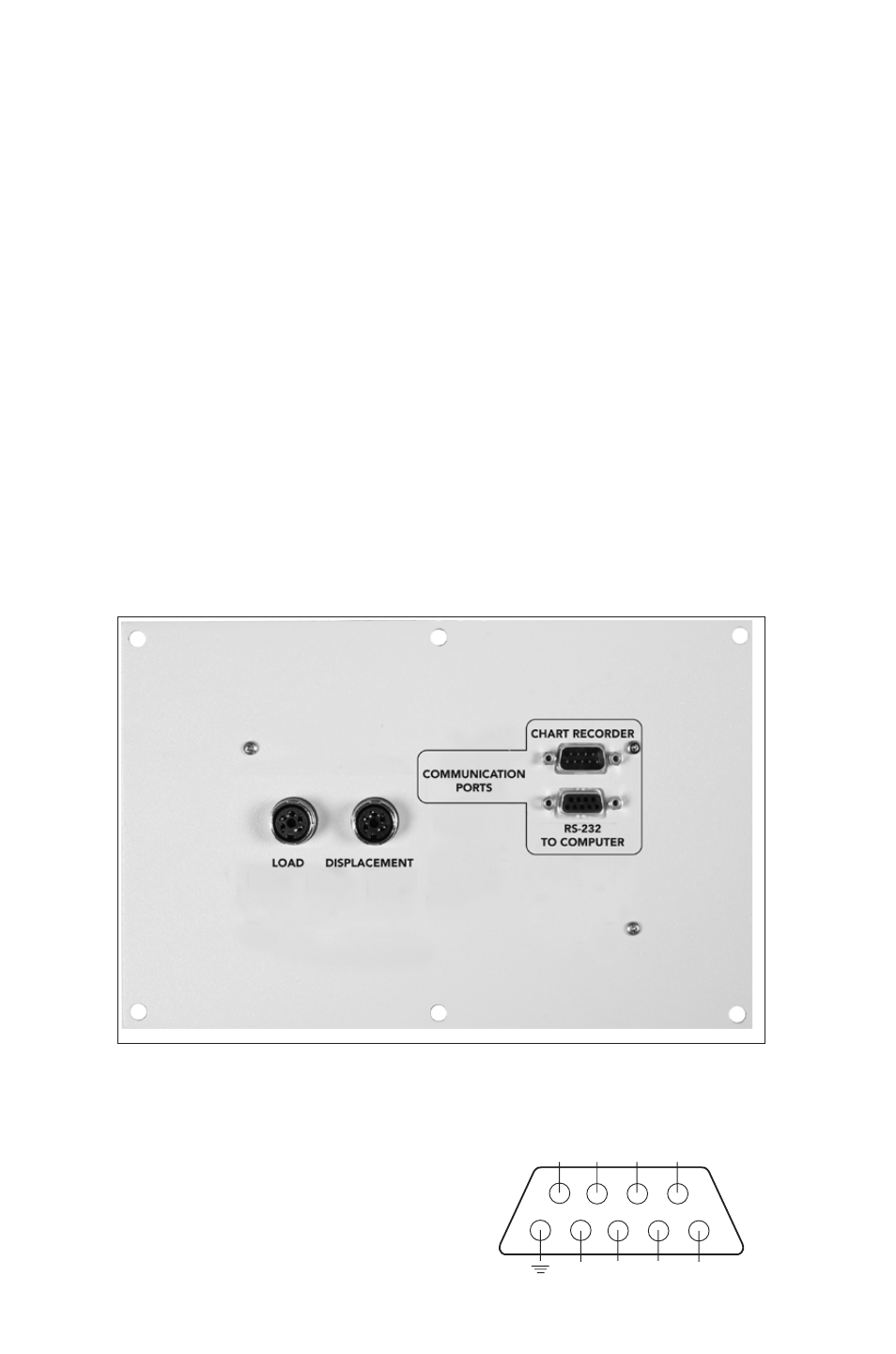

Figure 7. Rear panel of HM-1327 showing Chart Recorder Port, RS-232
Port and the two instrumentation channel inputs.
6 9
5 1
sweep reset
not
connected
CH3 CH4 CH1 CH2
D-SUB, 9-PIN MALE
ANALOG PORT ACCESS
Cable configuration for
analogue port access.
Pins 1, 2, 3 & 4
(Reserved for
Humboldt Chart
Recorder)
