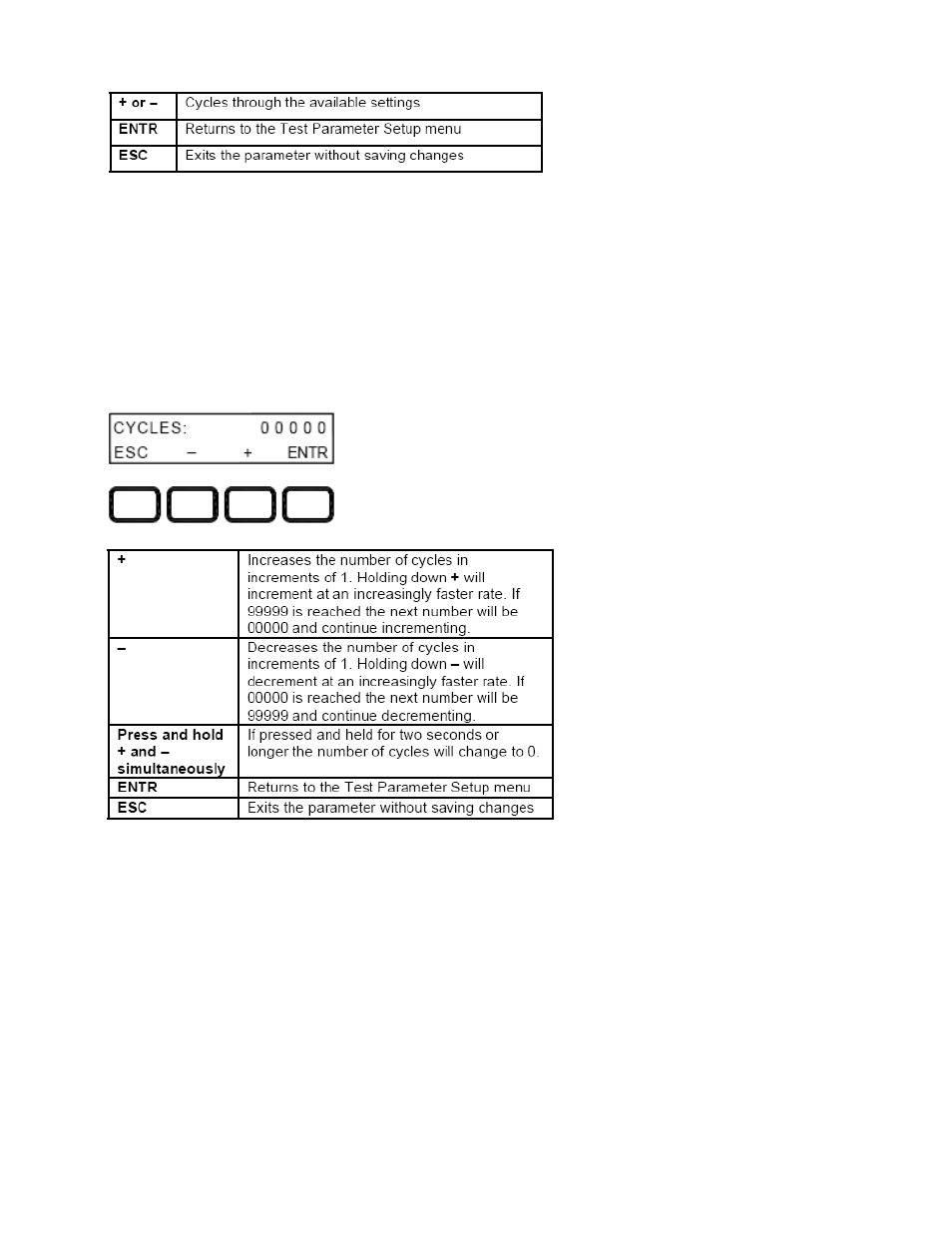

5.3 Cycling (CYCLES)
This setting allows the user to configure the number of cycles through which the test stand will sequence. One cycle
consists of the test stand moving to a limit switch, load set point, or travel limit (TSTM / TSTMH only), whichever occurs
first, at the specified speed, stopping for the specified amount of dwell time, and returning to the other limit at the
specified speed.
Default setting: 00000 (off)
Available settings: 00000 – 99999
5.4 Dwell Time
This setting corresponds to the amount of time, in seconds, for which the test stand stops at the limit during a cycle
sequence. Independent dwell times can be set for both limits.
Note: the dwell time setting is unavailable for an auto return sequence.
Default setting: 0 (no dwell time)
Available settings: 0 – 9999.9
