TSFM 500 DC 8 32-1101 REV 2 710

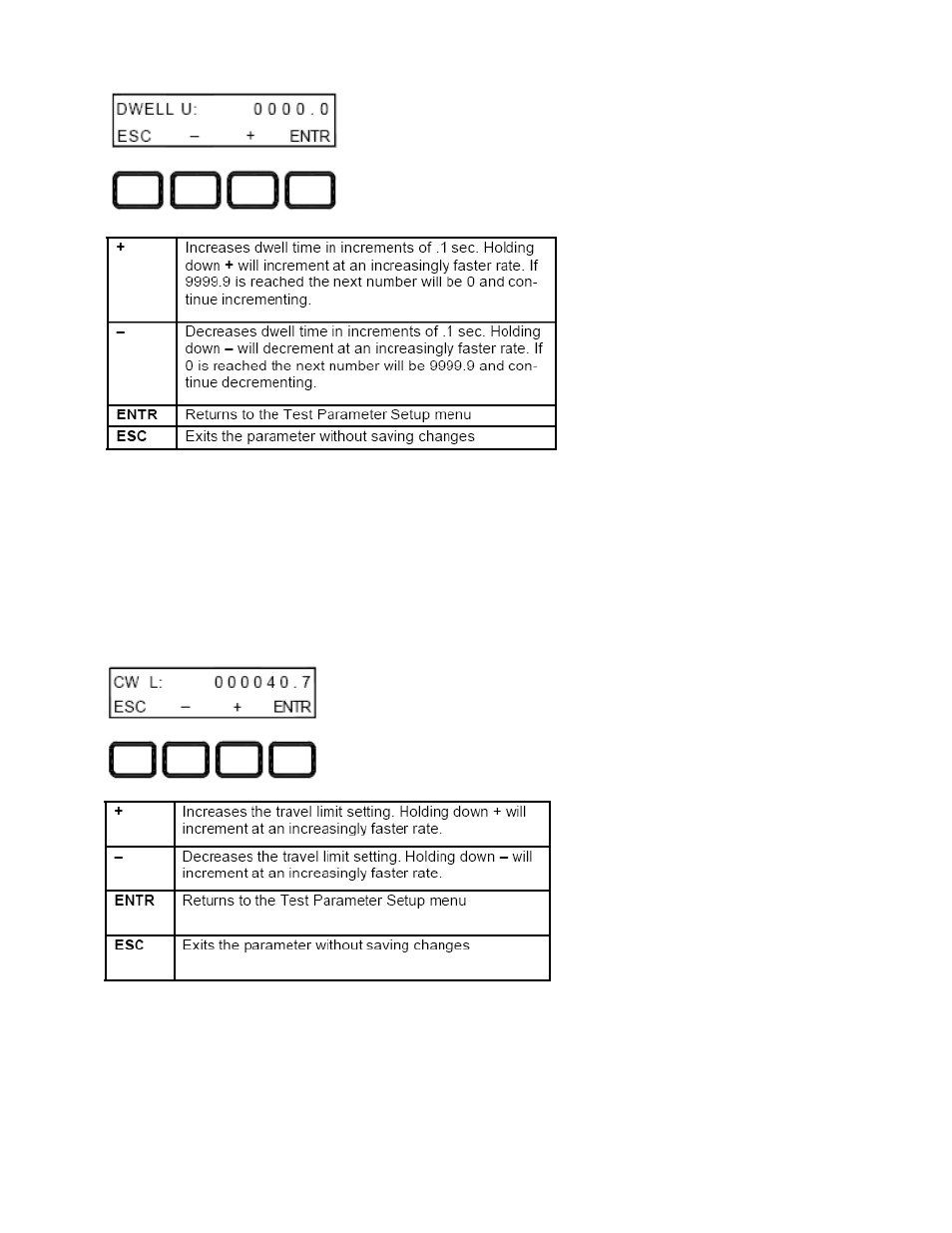

5.5 CW and CCW Travel Limits (CW L and CCW L)
Applies to TSTM / TSTMH only
This setting corresponds to the rotational travel distance the test stand moves before stopping or cycling. CW and CCW
limits are programmed individually. The programmed distances are relative to the zero position of the test stand. The
travel indicator can be zeroed by pressing and holding STOP for three seconds.
Default setting: 1 revolution
Available settings: ±
2,777.77 revolutions
5.6 Overload Analog Output Voltage (OVRLOAD V)
This setting corresponds to the full scale analog voltage output of the force or torque gauge. Series DC controllers
protect gauges from overload by measuring incoming analog voltage and stopping test stand motion when the
programmed percentage of full scale has been reached (see Section 5.7). The value for Mark-10 gauges is ±1V.
Adjustable voltage allows for compatibility with other brands as well.
