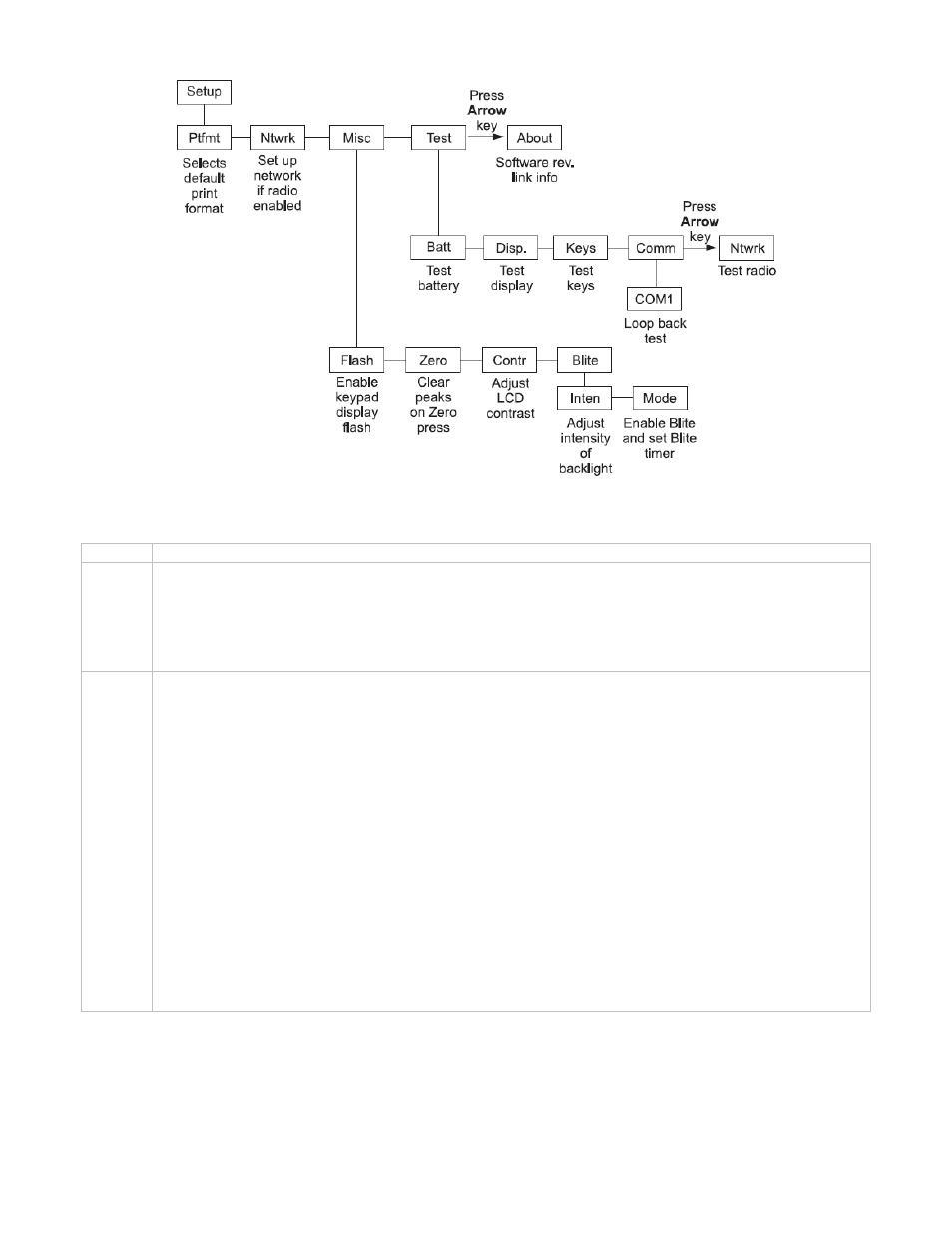

Figure 9. Setup menu
9.2 Setup Menu
Ptfmt Select from print formats 1-7. See Print Formats section on the following pages.
Ntwrk Setup the network.
First choice is Radio Channel #. Can pick 1-64. All LTL 730s set to this same number will
communicate with this Communicator.
Next choice is number of LTL 730s in the network. Pick from 1-15.
Next choice, you must set the address for each LTL 730. Each LTL 730 in the network must have a
unique number. Pick from 1-15.
Misc Lets you setup the following items:
Flash Use this to enable the visual confirmation of keystrokes. Display will flash on
keystrokes if enabled.
Zero Use this to enable or disable clearing of peak force values upon ZERO key press or
Z.All soft key press.
Contr Use this to adjust the contrast of the Communicator display. Follow onscreen prompts
for directions.
Contrast shortcut There is a keypad shortcut for increasing and decreasing contrast.
While in normal display mode press Arrow key and F2 simultaneously to increase
contrast. Press Arrow key and F1 simultaneously to decrease contrast.
Blite Use this to adjust the intensity and mode of the optional backlight. Intensity adjusts
the brightness of the backlight. Using Mode you can set the backlight to OFF, ON, or
TIMER. If you select TIMER, the backlight will shut off after a configurable period of
time (in seconds), without a keystroke. You are also given the option of choosing if
motion will reset the backlight timer to
start counting again. Backlight intensity
shortcut Press Arrow key and F4 simultaneously to increase intensity. Press Arrow
key and F3 simultaneously to decrease intensity.
Backlight intensity shortcut Press Arrow key and F4 simultaneously to increase
intensity. Press Arrow key and F3 simultaneously to decrease intensity.
