7.1 Configuration Menu

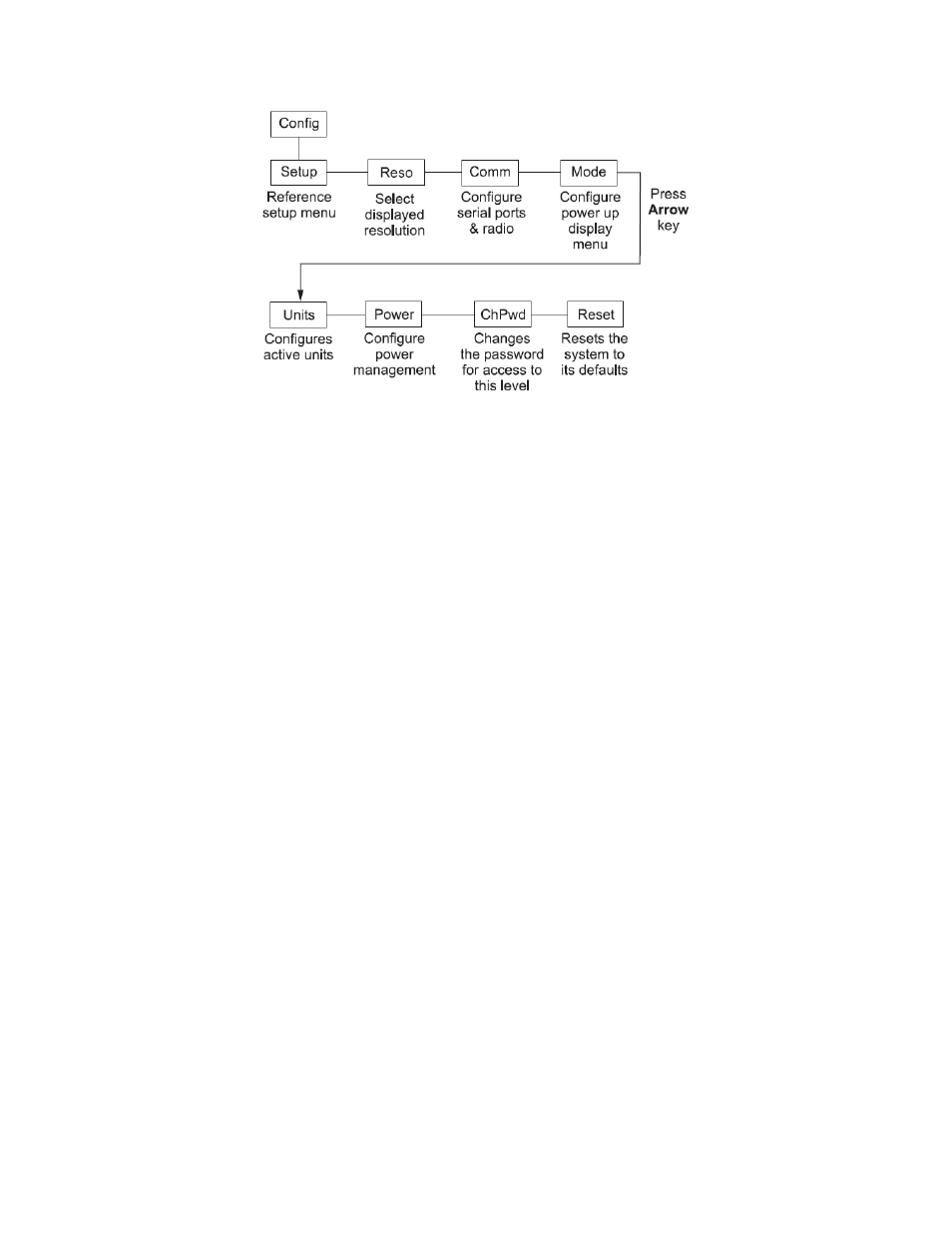

Figure 7. Configuration menu
Config Setup
The first soft key is Setup. Press this and you access the setup menu shown in Figure 4. All its features are
covered in that section of the manual.
Config Reso
Reso stands for resolution. Resolution is the value by which the LTL 730 displays increments. Press this key to
set the unit to standard (1000 divisions) resolution or enhanced (5000 divisions) resolution. For example: 10,000
lbf would count by
10 lbf (10,000 lbf/1000 divisions = 10 lbf) in standard resolution
2 lbf (10,000 lbf/5000 divisions = 2 lbf) in enhanced resolution
Enhanced Resolution mode drains more battery power than standard resolution.
Standard resolution may have 1000 or 1250 divisions. Enhanced resolution may have 4000 or 5000 divisions.
This follows normal display increment practice of changing by 1, 2, 5 or a multiple or submultiple of those
numbers (e.g. 10, 20, 50, .1, .2, .5, etc.).
Config Comm
Press this key to enable or disable radio communication and configure serial ports.
Default Serial Communications
Baud Rate = 57600
Parity = None
Databits = 8
Stop bits = 1
There is no option for handshakes. All settings should be None.
RS-232/RS-485 activity consumes more battery power.
To configure serial ports, follow these steps:
1.
Press the Comm key and you see the following screen:
