Comm The serial test is an internally conducted diagnostic that requires a jumper across transmit and
receive. This requires a plug or cable assembly. Pressing the Serial soft key accesses the following
soft keys:
COM1 Press this key to test COM1 in a loopback test.
COM2 Press this key to test COM2 in a loopback test.
To perform a COMM test, the unit must be configured to use RS-232 communications.
7.0 CONFIGURATION
The configuration menu is a group of settings that may be password protected if desired to prevent operators
from making significant system changes. It is used to configure the following:
• radio
network
• resolution
• communication
ports
• power up display mode
• units of measure
• power
management
• password
management
• system default reset
To access the configuration menu, press the Config soft key shown in Figure 5.

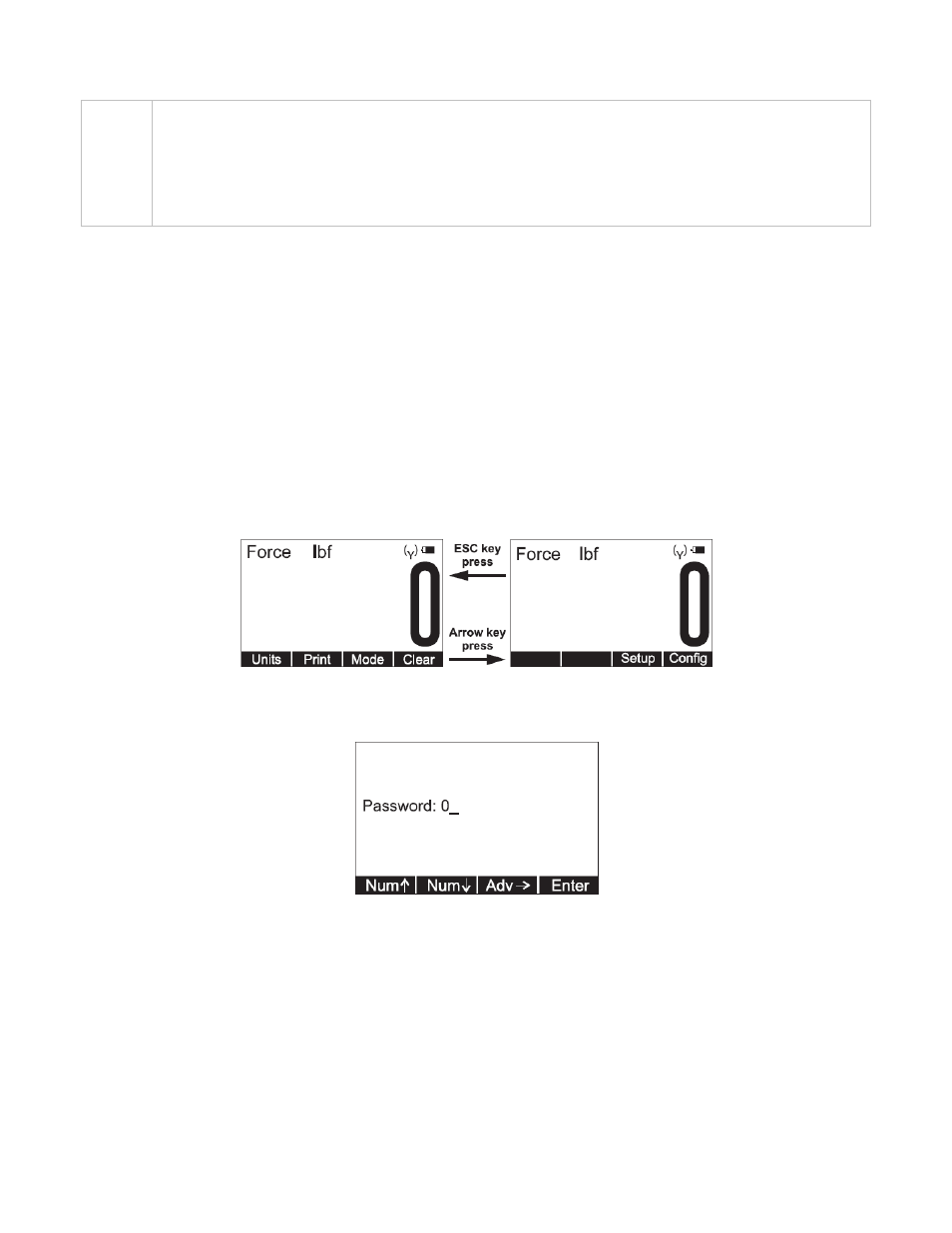

Figure 5. Accessing Config soft key and menu
The display prompts for a password. See Figure 6.
Figure 6. Password screen
Use the Num keys to enter the first character of the password and the Adv key to move to the next character.
When you are done press the Enter key and the soft keys shown in Figure 7 become available.
The default password is “0”. If the password has been changed and forgotten, contact Cooper Instruments for
assistance.
