Tank Level Sensing Processor and Sensors
Page 4

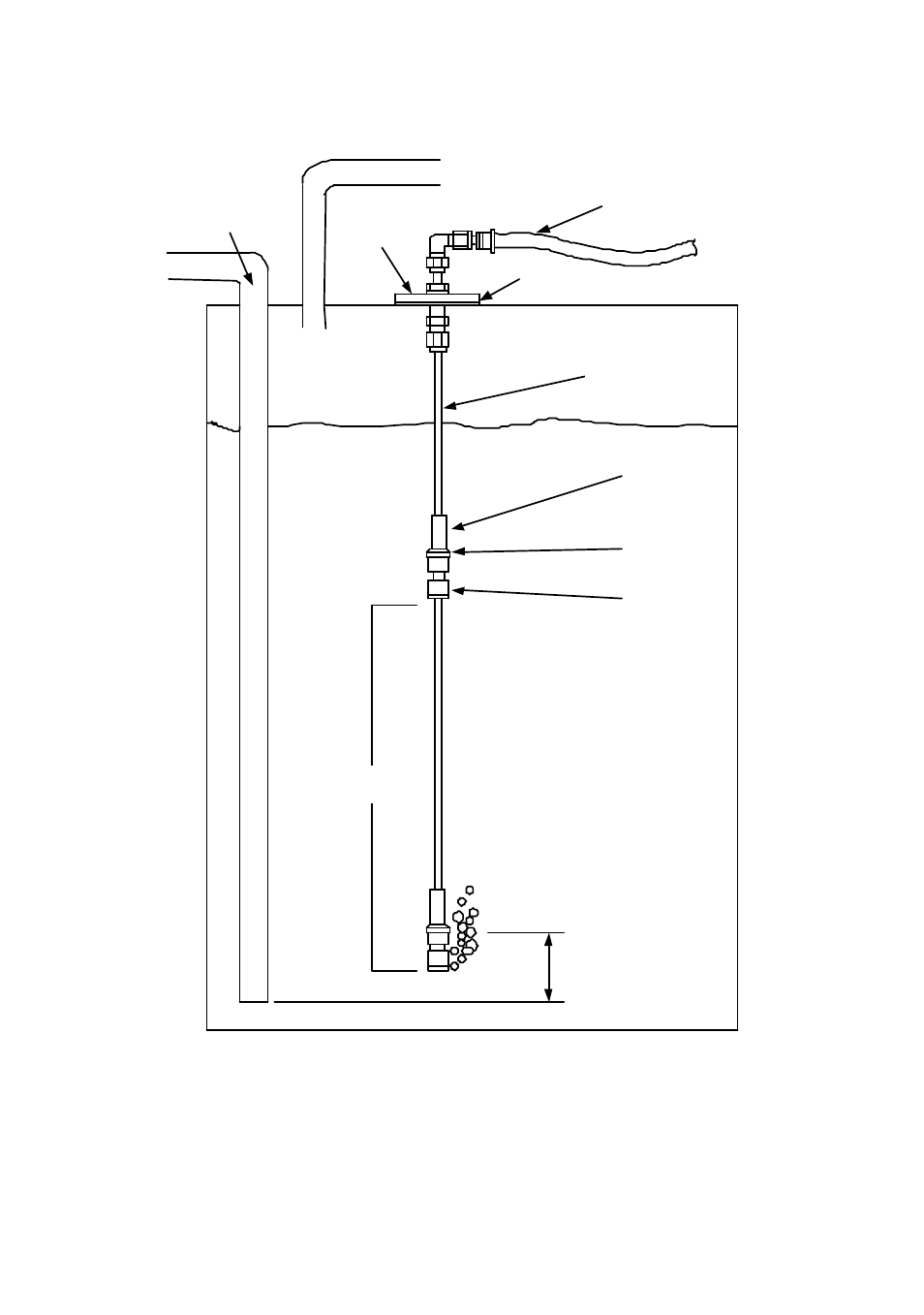

6.2 Deep Top Tank Installation
Flange
Assembly
Yellow flame
resistant tube
(Swagelock)
Stainless Steel
weight
Union
7.5mm (1/4 inch)
Nylon Tubing
Collet
Extension Kit
T a n k V e n t
P u m p
Pick-up
Tube
Gasket
Cut Length of Nylon Tube -
Approimately 50mm (2")
Above the Length of the
Pump Pick-up Tube Before
Attaching Weight
Notes:
The end of the nylon tube must be installed above the pick-up tube for any installed tank,
otherwise your system may display fluid that you cannot access.
To use the Extension Kit, simply push the second piece of nylon tubing into the bottom of
the union fitting and cut the tube to the correct length and fit the weight as previously
described.
The maximum length of the nylon tube must not exceed 2.7m (9 feet); the minimum length
is 228mm (9 inches).
