Charts
The chart function displays your vessel’s position relative to land and other chart objects.
On the panel you can plan and navigate routes, place waypoints, overlay a radar image or
weather information, and display AIS targets.
The Zeus Touch has different embedded cartography depending on region. Units sold
in America will include Insight cartography, while units sold in other regions will have
embedded Navionics coastal (Silver) cartography split by region. All units will support
Navionics Platinum Plus and TurboView via Micro-SD Card slot accessible from the front of the
unit.
Charts are shared over the network, so only one chart card per boat is required.
The first part of this section describes how to use the charts, and is common to both Insight
and Navionics. Chart options depend on which cartography is in use on the unit. These are
covered in a separate section.

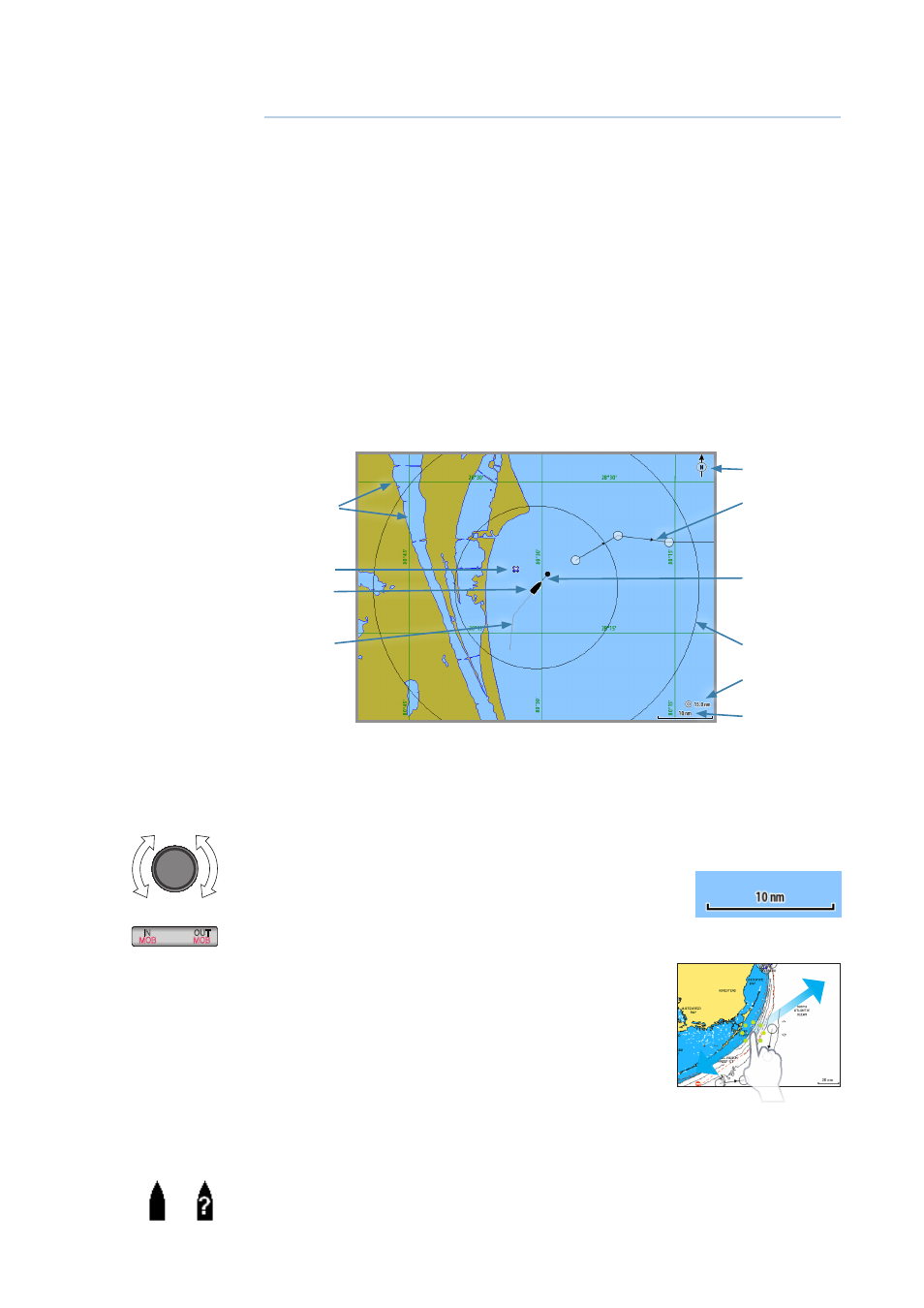

The chart panel
Grid lines *
Extension line *
Range rings * Track *
Route *
Vessel
Chart range scale
Range rings
interval *
North indicator
Waypoint *
* Optional chart items
¼ Note: You turn the optional images on/off individually. See “The chart settings panel” on
page 16.
Chart scale
You zoom in and out on the chart by using the IN/OUT keys or by
using the rotary knob.
Chart range scale and range rings interval (when turned on) will be
shown in the lower right corner of the chart panel.
Panning the chart
You can move the chart in any direction by tapping the screen
and dragging your finger in the selected direction.
Pressing X key will remove the cursor from the panel, and the
chart center will be positioned at the vessel.
The vessel symbol
Position and orientation
When a GPS and a suitable heading sensor are connected to the system, the vessel symbol
indicates vessel position and heading.
Without a heading sensor fitted, the vessel icon will orientate itself using COG (Course over
Ground). If no GPS is available the vessel symbol will include a question mark.
