Page 8

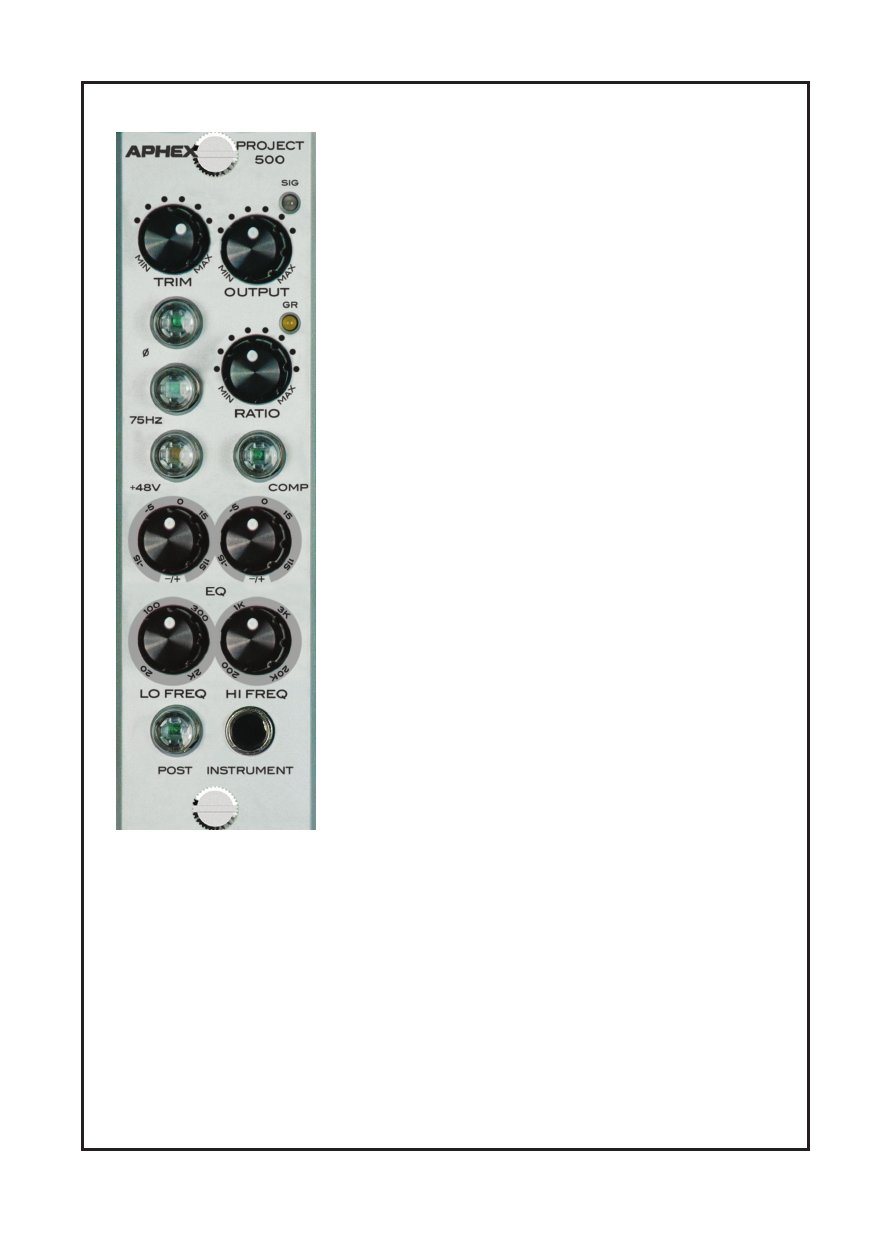

EQUALIZER CONTROLS
3.6 CUT/BOOST KNOBS
Each EQ band can be cut or boosted by
15dB.
3.7 FREQUENCY KNOBS
The low frequency band knob allows set-
tings from 20Hz to 2kHz.
The high frequency band knob allows set-
tings from 1kHz to 20kHz.
3.8 OUTPUT KNOB
The Output level knob determines the over-
all output level of the module.
3.9 PHASE REVERSE BUTTON
The Phase Reverse Button shifts the input
signals phase by 180 degrees.
3.10 HIGH PASS FILTER
The HPF rolls of frequencies below 75Hz
at 12dB per octave. This function comes
before the compressor and equalizer func-
tions.
3.11 PHANTOM POWER
The phantom power button supplies 48V to condenser micro-
phones.
3.12 INSTRUMENT INPUT
The 10Mohm instrument input allows a direct input to the Project
500 from an electric guitar or bass. This input overrides the XLR
input on your 500 series receiving frame.
