Amico Barcode Dock Mount - Manual (Page 8)

8 Amico Accessories Inc.
Mounting of Devices
SECTION 4: Device Installation
FIGURE 8
FIGURE 9
FIGURE 10
FIGURE 11
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
Figure 8 Figure 9
Figure 11 Figure 10
FIGURE 8
FIGURE 9
FIGURE 10
FIGURE 11
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
FIGURE 8
FIGURE 9
FIGURE 10
FIGURE 11
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
FIGURE 8
FIGURE 9
FIGURE 10
FIGURE 11
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com

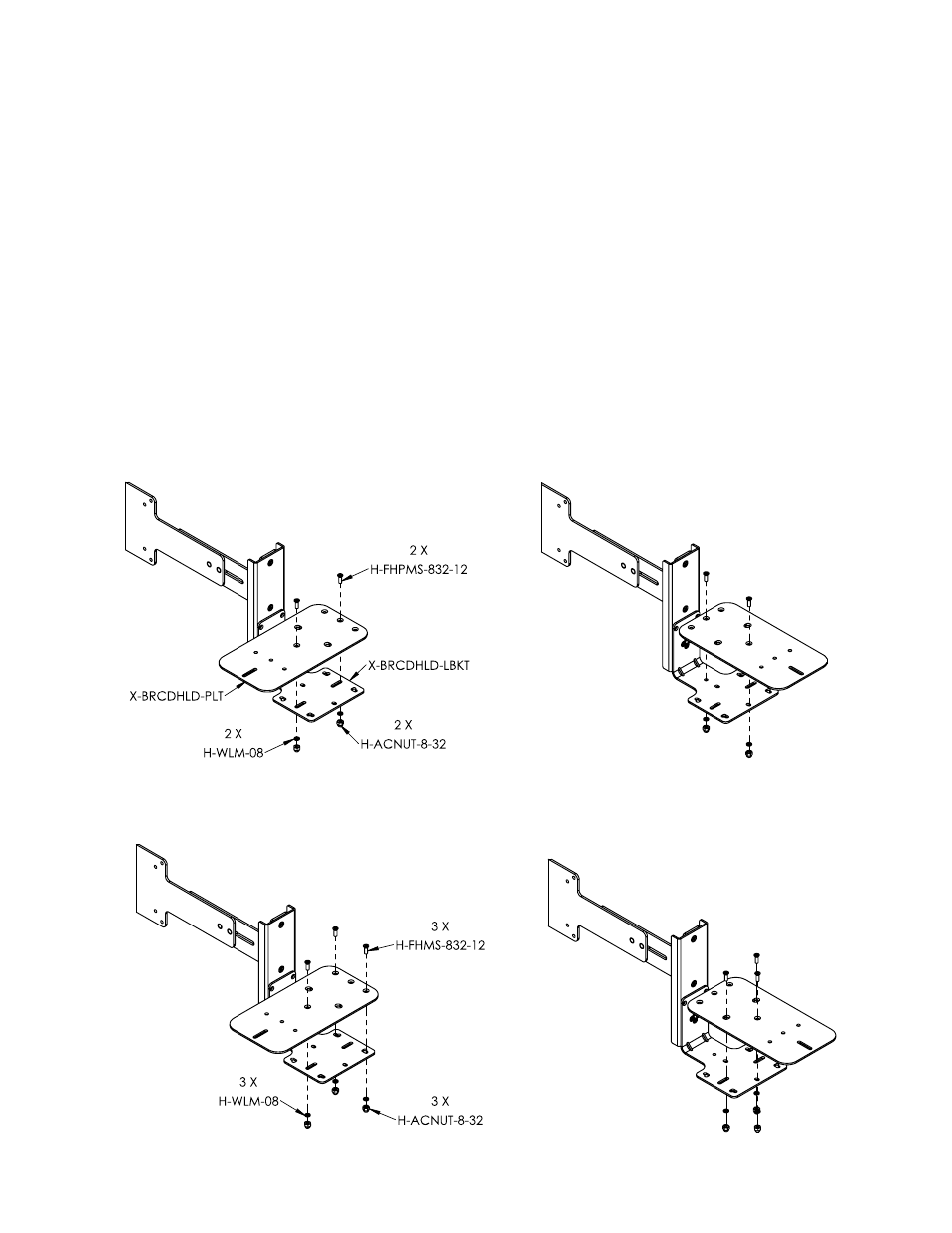

1. For the BARCDHLD2-LCD:
Determine the mounting pattern on the barcode scanner base to be mounted. If the barcode scanner base is too
large to mount onto X-BRCDHLD-LBKT, proceed to step 2 for the installation of the secondary plate.
2. If the secondary plate X-BRCDHLD-PLT is required, determine the preferred orientation and secure by
inserting two or three H-FHMS-832-12 through X-BRCDHLD-PLT, X-BRCDHLD-LBKT, two or three H-WLM-08, two
or three H-ACNUT-8-32 ensuring that the mounting screws do not interfere with the mounting pattern of the
barcode scanner base.
NOTE: Please use two or three points to attach the secondary plate depending on what will get you the most secure
connection without interfering with the product on the mounting platform.
