Amico Barcode Dock Mount - Manual (Page 10)

10 Amico Accessories Inc.
Mounting of Devices
Determine the preferred orientation of the barcode charging base and refer to the below illustrations for mounting.
NOTE: The illustrations shown may not portray the configuration purchased. Use this as a reference to pair hardware
and mounting hole pattern with respective barcode scanner base (not provided).
SECTION 4: Device Installation

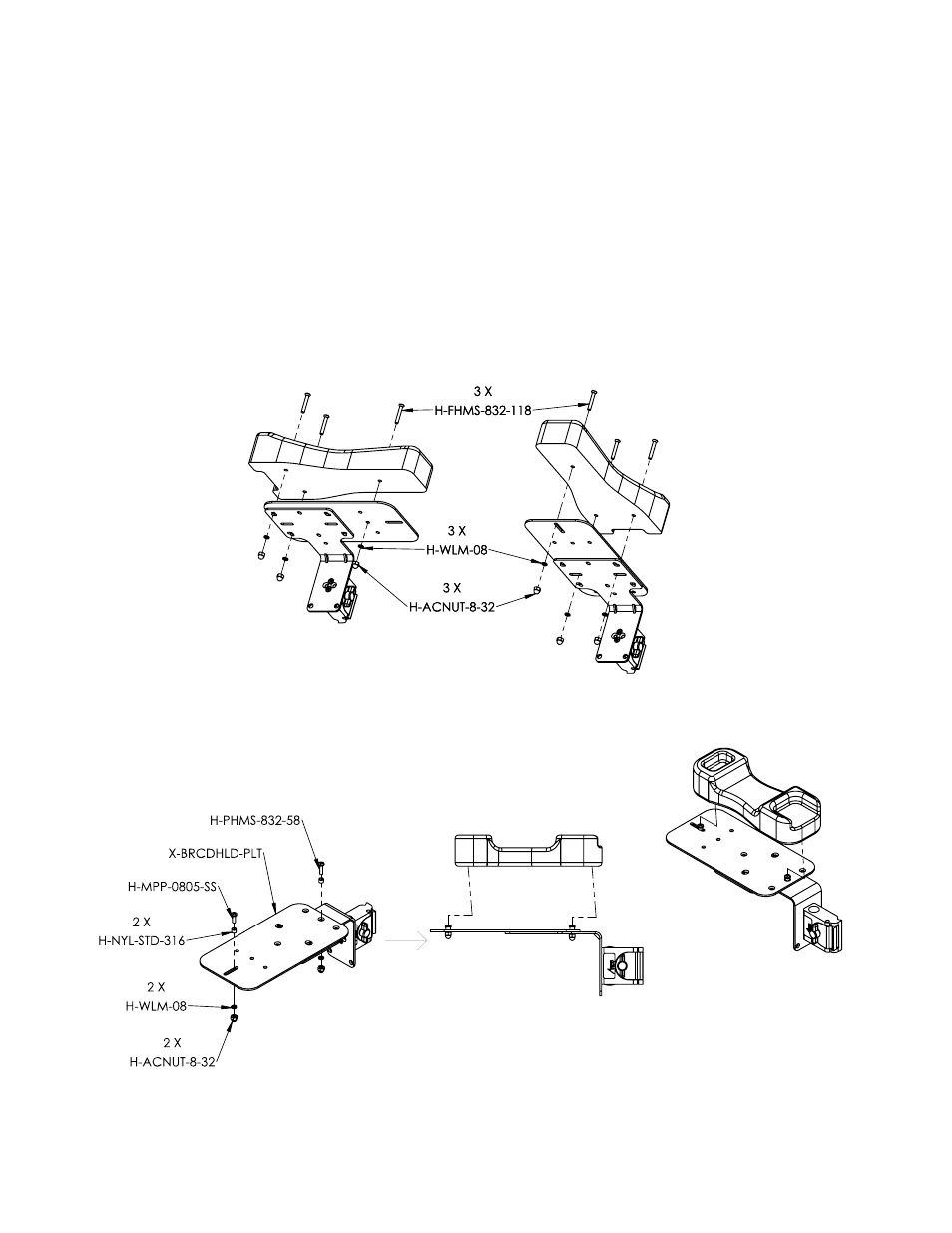

Figure 15
Figure 16
Barcode charging base with three holes, such as
Honeywell CCB02-100BT for Honeywell Granit 1910i, 1911i.
Barcode charging base with two keyholes, such as Motorola/Symbol
STB4208-C000_ for Motorola Li4278 or Symbol LS4278.
FIGURE 15
FIGURE 16
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
