www.amico.com 7
Mounting of Devices
1. For BARCDHLD2-(M/F/A/E25/R125/RMC/V/D/G/S):
Before mounting product onto mounting platform, determine the mounting pattern on the barcode scanner
base to be mounted. If the barcode scanner base is too large to mount onto X-BRCDHLD-LBKT, proceed to step 2
for the installation of the secondary plate.

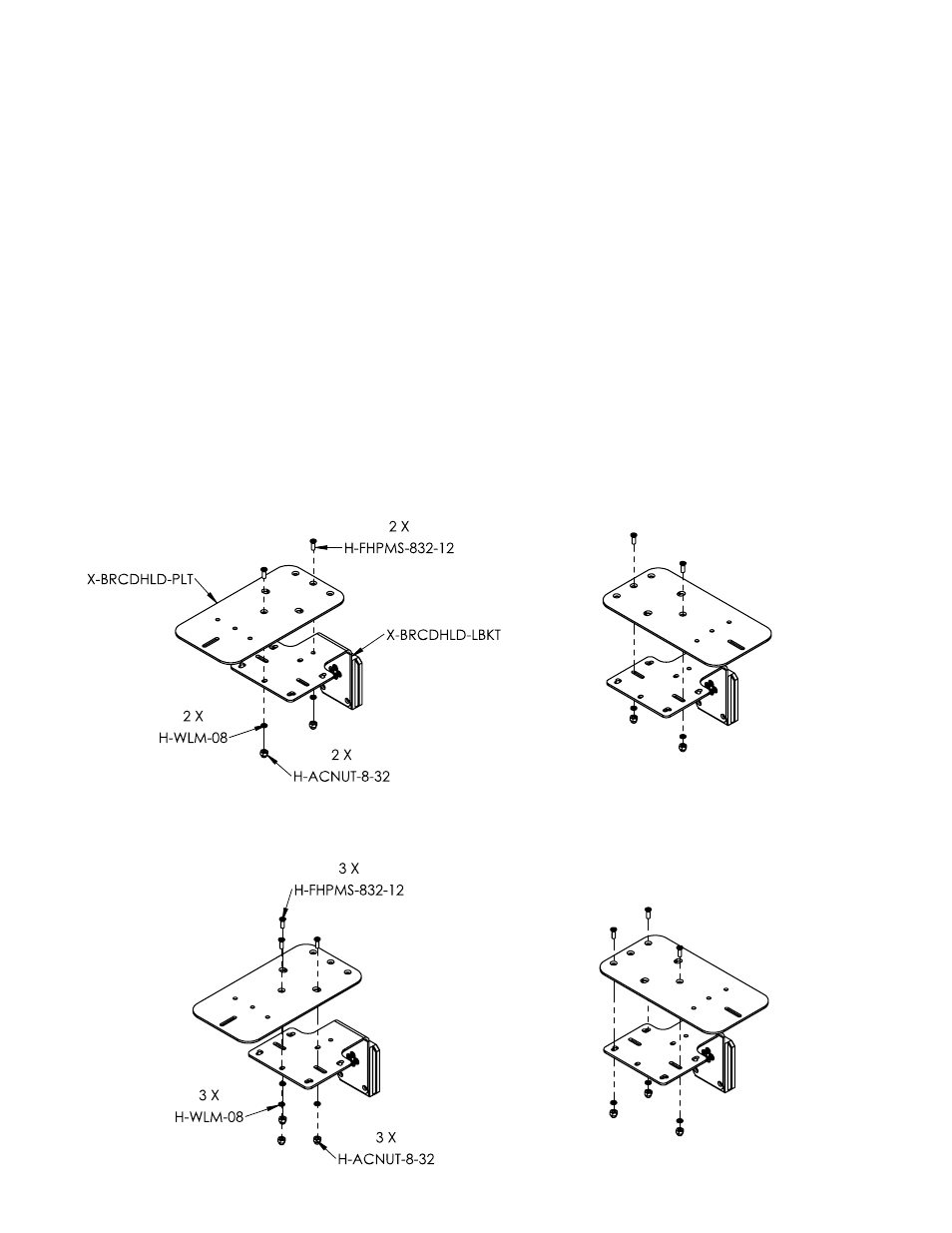

2. If the secondary plate X-BRCDHLD-PLT is required, determine the preferred orientation and secure by inserting
two or three H-FHPMS-832-38 through X-BRCDHLD-PLT, X-BRCDHLD-LBKT, two or three H-WLM-08 as well as
two or three H-ACNUT-8-32 ensuring that the mounting screws do not interfere with the mounting pattern of
the barcode scanner base.
SECTION 4: Device Installation
Figure 4 Figure 5
Figure 6 Figure 7
FIGURE 1
FIGURE 3
FIGURE 2
FIGURE 4
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
FIGURE 1
FIGURE 3
FIGURE 2
FIGURE 4
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
FIGURE 1
FIGURE 3
FIGURE 2
FIGURE 4
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
FIGURE 1
FIGURE 3
FIGURE 2
FIGURE 4
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
NOTE: Please use two or three points to attach the secondary plate depending on what will get you the most secure
connection without interfering with the product on the mounting platform.
