Amico Barcode Dock Mount - Manual (Page 5)

www.amico.com 5
SECTION 2: Installation Preparation
Installation, Tools and Part Requirements
• No. 2 Phillips head screwdriver (not provided)
• 1/8" HEX key for BARCDHLD2-M (not provided)
• 7/16" wrench for BARCDHLD2-LCD configuration (not provided)
WARNING It is the installer’s responsibility to ensure all components are properly assembled and installed
using the provided instruction manual.
WARNING Exceeding weight capacities can result in severe personal injury or damage to equipment.
It is the installer’s responsibility to ensure the combined weight of all components does not
exceed the weight capacity of 5 lbs (2.3 kg).
WARNING The mounting platform must be strong and stable enough for supporting BARCDHLD2-_ as well
as the barcode scanner and base.
WARNING Verify that rails have been installed in accordance with Amico rail installation instructions.
Rail failure with mounted devices can cause serious injury and/or equipment damage.
WARNING DO NOT position the BARCDHLD2-_ above a patient.
WARNING It shall be the responsibility of the hospital, its consultants and/or contractors to determine if
the mounting surface is adequate to safely mount the specific instrument. This includes the
selection of appropriate fasteners and the proper installation, REGARDLESS OF WHAT IS
SUPPLIED WITH YOUR BARCDHLD2-_. See Amico rail installation instructions for specific wall
channel guideline information.
WARNING DO NOT attempt to mount/remove the BARCDHLD2-_ from the rail when loaded with any
instrument.
WARNING To prevent mounting adapter from sliding down the rail, ensure that all set screws are fastened
to the tightest possible position. Serious injuries could result if the set screws are not properly
fastened.
Contact Amico Accessories Inc. to discuss solutions not covered in this manual at 1.877.264.2697.

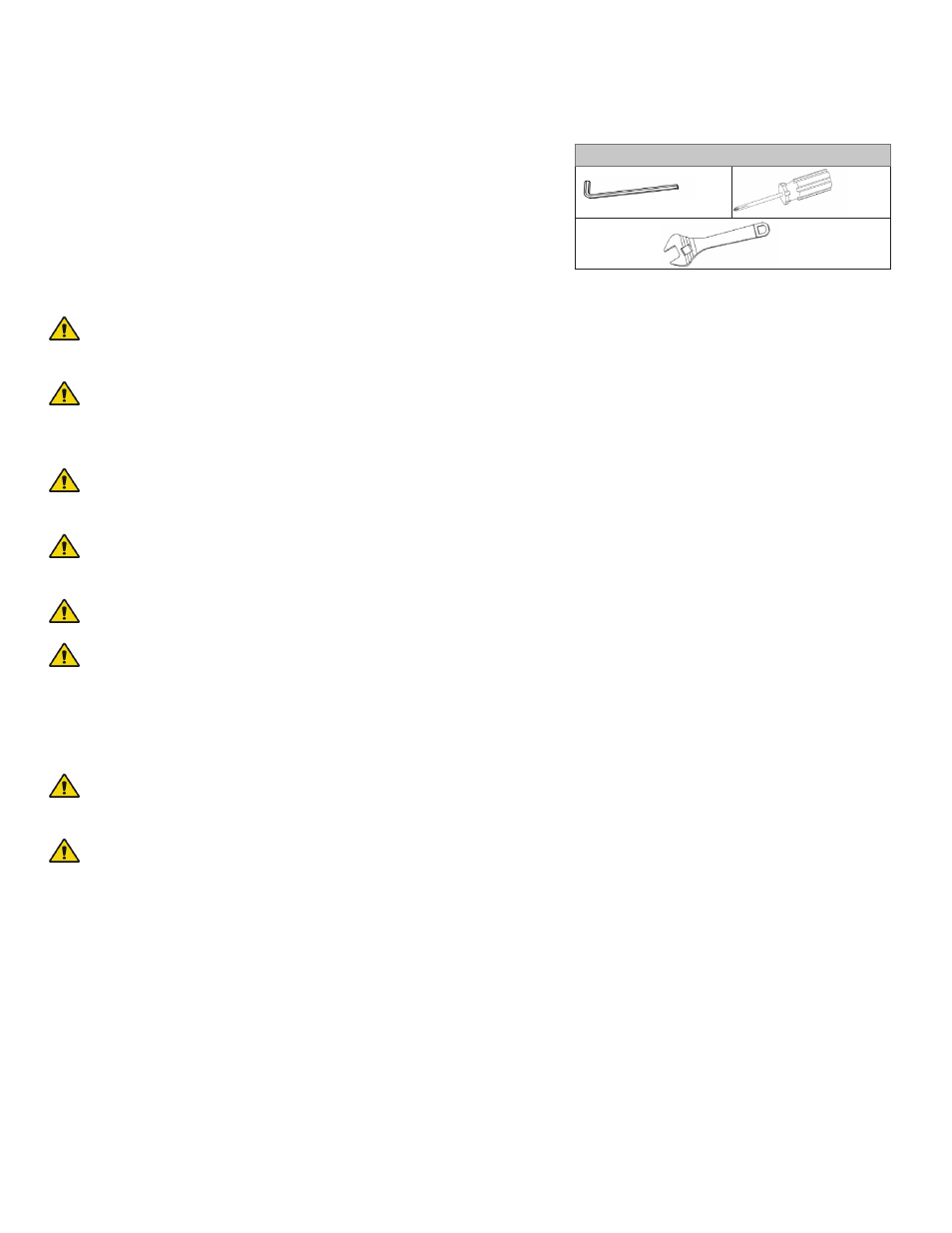

Tools
1/8" HEX key No. 2 Phillips screwdrive r
Adjustable wrench
* Tools not provided by Amico
