Riser plate to outlet detail c - riser, Approval signature date phone no – Amico Ceiling Column Motorized Retractable User Manual
Page 8

Approval Signature
Date
Phone No.
Access Panel This Side
NOTE:
1.
Riser plate is completed with DISS pipe stubs, typical for each gas (For DISS riser pipe inlet see page 11).
2.
Pipe stubs diameters are 3/8” [9.97mm] ID and 1/2” [12.7mm] OD for all gases. Refer to Riser Pipe cut sheet.
3.
Exact locations of gas terminations on riser plate will be determined after receiving this booklet.

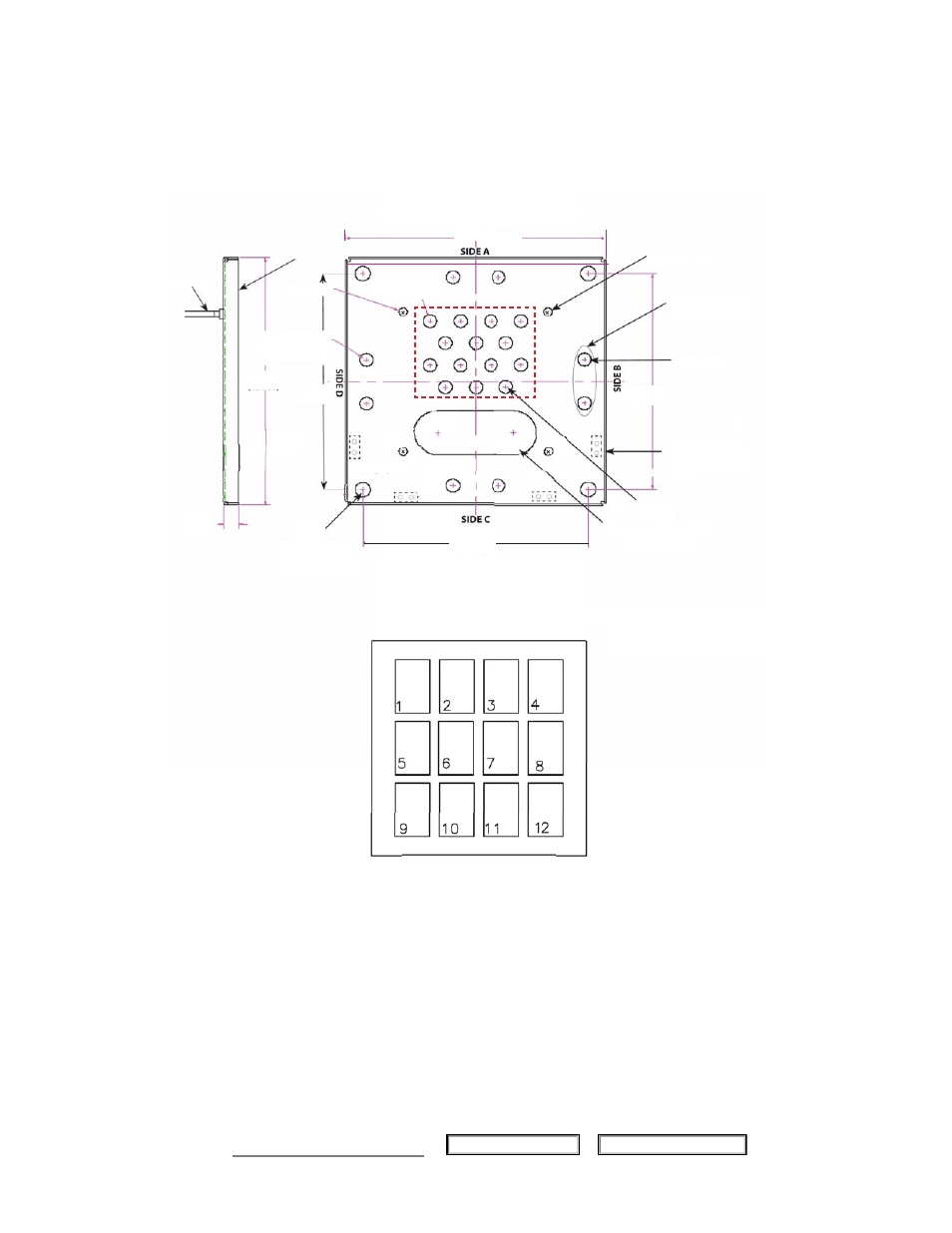

BOTTOM VIEW COLUMN
Looking Up
X4 See
page 9
2A
1A
Access panel This side
Side A
B
D
C
4.5” [114.3 mm] above
7/8” [22.2mm] hole X8
Termination X4
box use
see page 10
Mounting holes for
threaded rod X4
see note #4
for column X4
Access Panel This Side
Riser Plate Bottom View Looking Up
pipe stub
fi nished ceiling
For DISS riser pipe
inlet (see page 9)
anti-sway support
(supplied by others)
17”
[431.8mm]
14.75”
[374.65mm]
1.00”
[25.4mm]
1.00”
[25.4mm]
14.75”
[374.65mm]
anti-sway support
(supplied by others)
for electrical conduit use
DISS
14.75”
[374.65mm]
17”
[431.8mm]
BOTTOM VIEW COLUMN
Looking Up
Riser Plate to Outlet Detail C - Riser
BO
BO
BO
BO
BO
TT
TT
TT
OM
OM
OM
OM
OM
V
V
V
IE
IE
IE
W
W
W
CO
CO
CO
CO
CO
LU
LU
LU
MN
MN
MN
BOTTOM VIEW COLUMN
BOTTOM VIEW COLUMN
Access Panel This Side
Side A
B
C
D
8
Amico Pipeline
