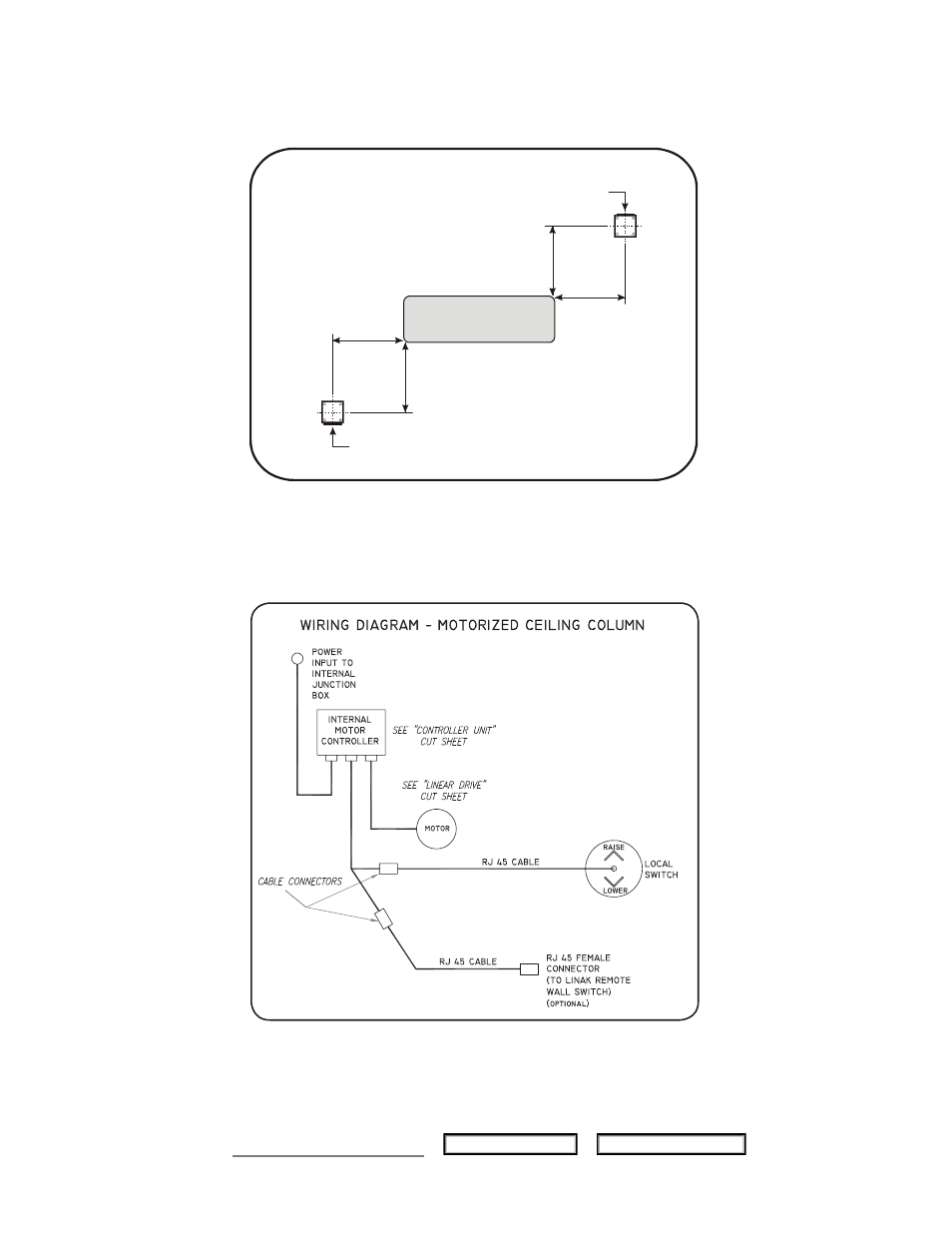

Typical Location View
Approval Signature Date Phone No.
Wiring Diagram
OPERATING ROOM
OPERATING
TABLE
Access Panel Recommended location of
columns in surgeries and
special care areas.
Access Panel
3' to 4'
3' to 4'
3' to 4'
3' to 4’
3’ - 4’
[914.4 - 1219.2mm]
3’ - 4’
[914.4 - 1219.2mm]
3’ - 4’
[914.4 - 1219.2mm]
3’ - 4’
[914.4 - 1219.2mm]
*Conduit and wiring to internal junction box by others.
Flexible conduit must be used. Allow a minimum of 24” (609.6mm) of wiring to internal junction box for extension and retraction of column.
