Linear Drive Specifi cations

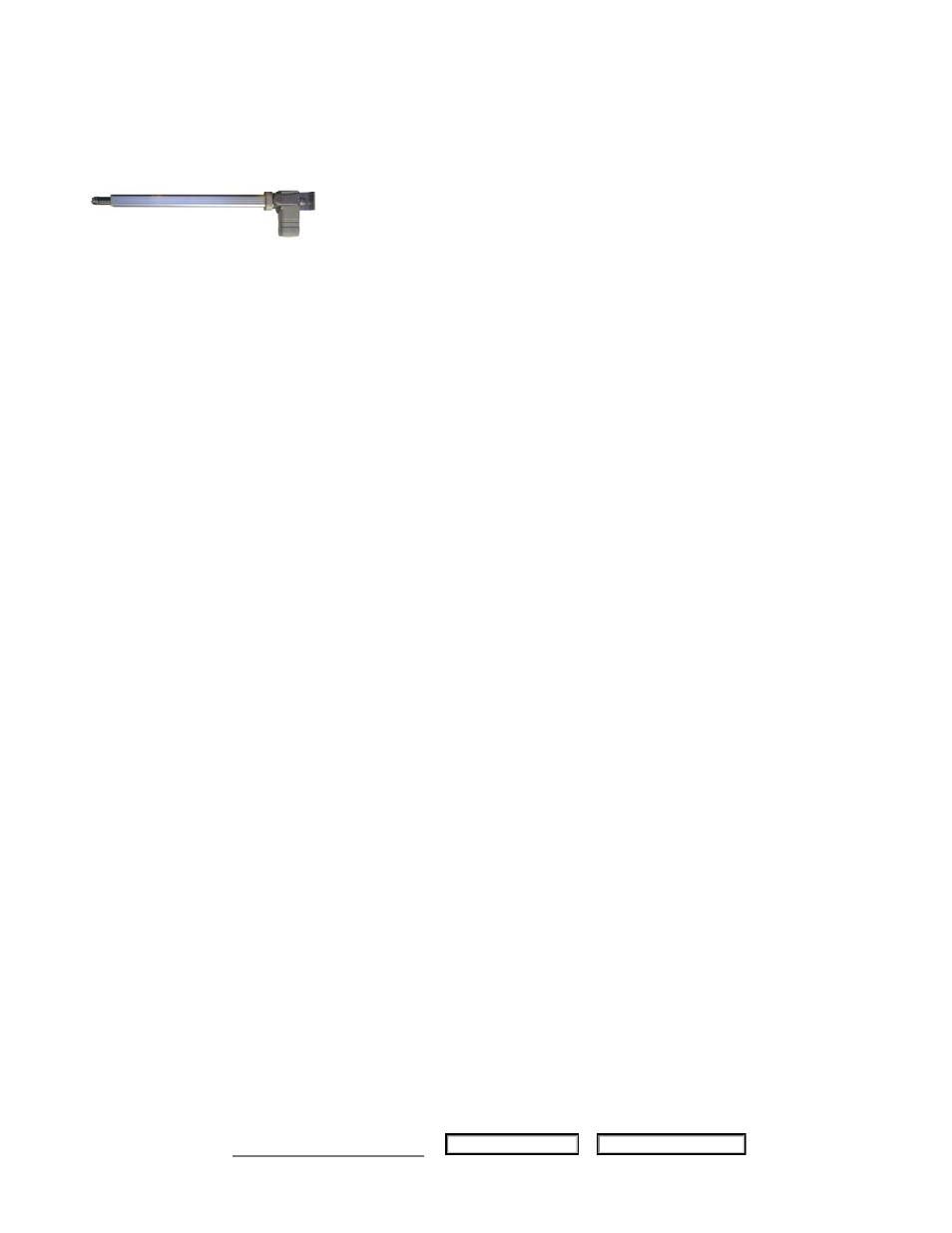

The linear actuators shall be designed for seating and reclining operations. It adjusts the column to the required
level by raising and lowering it.
The drive is provided by a DC motor with worm geat which acts on a trapexoidal threaded spindle drive or ball screw
system.
The actuators shall be protected against overheating by the Magnetic control unit.
Amico actuators shall use a push / pull force. They shall have a self-locking function which is activated by a built-in-
brake. A safety nut shall also prevent overload of the actuator.
All forces shall be transmitted through die-cast metal parts.
Amico products comply with NFPA-99 and CSA Z7396.1.
Push / pull force
1.5N
Speed at 24 V constant
14 mm/s
Stroke
1.97
-
27.56”
[50-700
mm]
Voltage
24
DC
Power
Consumption
120
W
Current Consumption 24V
5 A
Duty Cycle (ON / OFF)
1 min / 9min. int.
Ambient
Temperature
0
/
+40
C
Degree
of
Protection
IP66
Protective
Tube
1.69”
[43
mm]
Weight
3
kg
•
high-quality die-cast metal parts, stainless steel push tubes & ultrasonic-welded plastic parts guarantee high
performance
•
customizable stroke & mounting lengths in increments of 1.97 - 15.75” [50 - 400mm] & increments of 3.94”
[100mm] over the range of 15.75 - 27.56” [400 - 700mm]; other options are available upon request.
•
maintenance free with a long lifetime
•
push force us reduced by 50% when operated in parallel with the control unit.
•
quiet in running
