Range of column retraction, Low medium high – Amico Ceiling Column Motorized Retractable User Manual
Page 4

Approval Signature
Date
Phone No.
LOW
MEDIUM
HIGH
108
"
[2743mm]
CEILING HEIGHT-LOW
114
”
[2895.6mm]
CEILING HEIGHT-MEDIUM
120"
[3048mm]
CEILING HEIGHT-HIGH

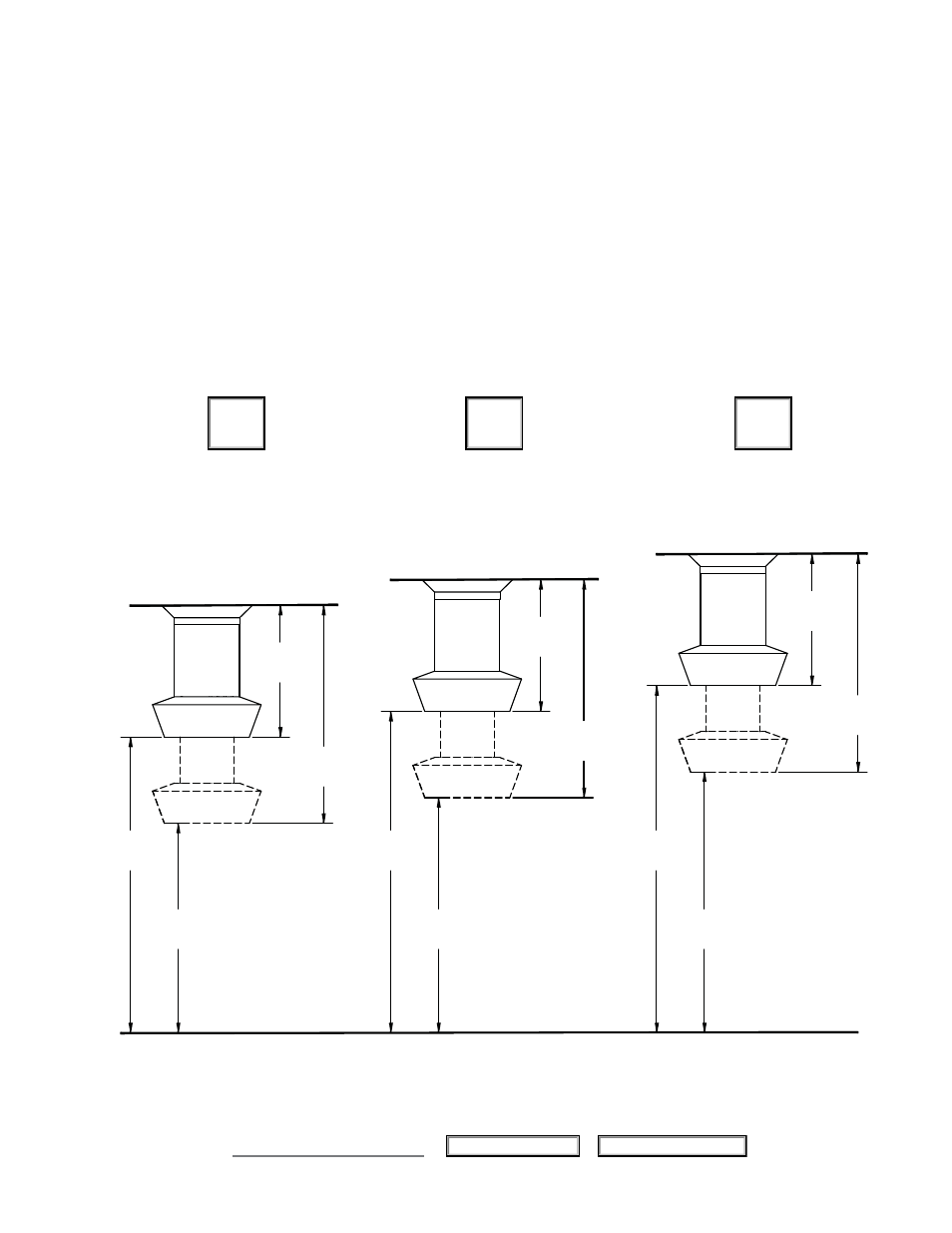

Range of Column Retraction
FINISHED FLOOR LINE
30
[762mm]
44
[1117.6mm]
78
[1981.2mm]
62
[1625.6mm]
60
[1524mm]
78
[1981.2mm]
60
[1524mm]
78
[1981.2mm]
60
[1524mm]
42
[1066.8mm]
54
[1384mm]
36
[914.4mm]
To accommodate for diff erent ceiling heights, Amico Corporation has standardized three diff erent variations.
The LOW height is designed for ceilings below 9’ - 0” (2743mm) 10” (254mm) Retraction Only.
The MEDIUM height is designed for ceilings between 9’ - 1” (2769mm) and 9’ - 11” (3023mm) 14 “ (355.6mm) Retraction Only.
The HIGH height is designed for ceilings above 10’ - 0” (3048mm) 18” (457.2mm) Retraction Only.
Please select the nominal column height below that applies to you application.
