Great Plains Manufacturing, Inc. Assembly 19
01/14/2014 564-070Q
Attach Cables
Refer to Figure 18
49. Attach one end of each cable to center frame lugs
with 1 x 3 1/4 clevis pin , 1.5 x 1.0 x 0.075
machine washer and 3/16 x 2 cotter pin. Bend cot-
ter pin to secure.
50. Route cables under wing support .
51. Attach one end of each chain to between the top
holes of each cable lift arm , with 3/8 x 2 1/2 hex
bolt and 3/8 lock nut
52. Drape chain from top of cable lift arm to rear
and towards outside wing frame. Remove any twists
from chain.
53. Remove bolts from 5/16 x 1 1/4 utility clevis .
Route cable through 5/16 x 1 1/4 utility clevis
and hook clevis to end link of chain , secure with
bolt that was removed from clevis. Be sure cable is
still under wing support.
54. Attach other end of cables to wing lugs (on
600-800 Series Flex Harrows attach to Wing Adjust-
ment) with 1 x 3 1/4 clevis pin
, 1.5 x 1.0 x 0.075
machine washer and 3/16 x 2 cotter pin. Bend cot-
ter pin to secure.
55. Tighten all bolts with lock nuts snug, but do not
torque.
1
2 3
4
5
6
7
8
6 7
9
1 9
6
1 10
3
4

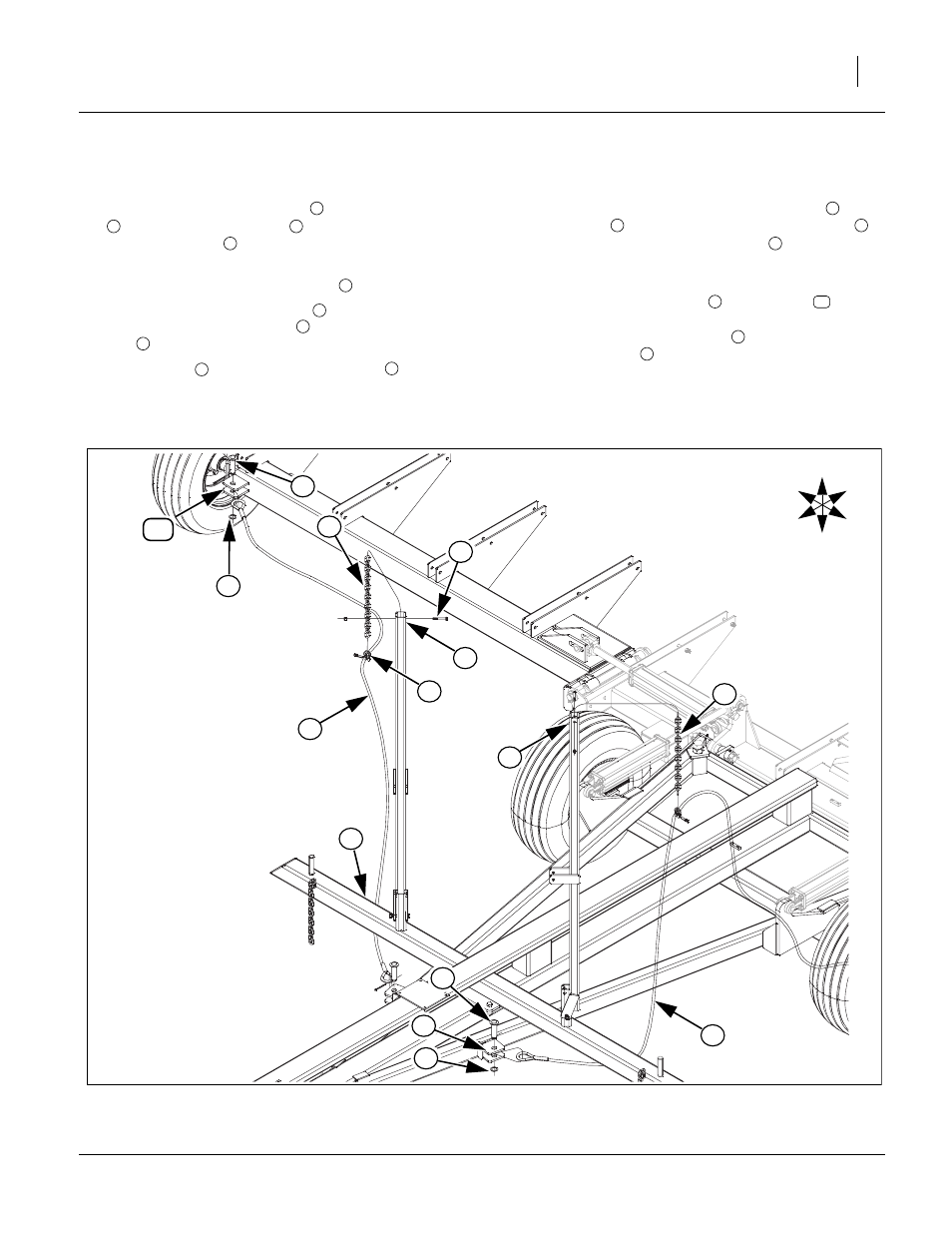

Figure 18
Attach Cable 42999
1
U
D
F
B
L
R
4
9
8
6
6
2
3
1
7
3
5
7
4
10
