Great Plains Manufacturing, Inc. Assembly 15
01/14/2014 564-070Q
Hydraulic Purging
Refer to Figure 12
Note: When all the fittings and hoses are routed and
hooked up the system will need purged of air. The
system will need purged before the rod end of cyl-
inders are hooked up as cylinders will not extend
fully if hooked up. Be sure rod end of cylinders
and
are un-pinned and wood blocks are put
under cylinder to allow rod ends of cylinders to
fully extend without hitting anything on machine.
37. Extend the lift and fold cylinders (green Han-
dles) until cylinders are fully extended. Fully retract
and extend the cylinders several times to purge air of
system. Watch for leaks and retighten fittings if nec-
essary.
38. Now the rod end of the lift cylinders may be
hooked up with the 1 x 3 1/8 pins , 1.5 x 1.0 x
0.075 machine washer and 3/16 x 2 cotter pin. Bend
cotter pin to secure.
39. The rod end of lift cylinders may be hooked up
with the 1 x 4 1/2 pins , 1.5 x 1.0 x 0.075 machine
washer and 3/16 x 2 cotter pin. Bend cotter pin to
secure.
1
2 3
1 2
1
4
2
5

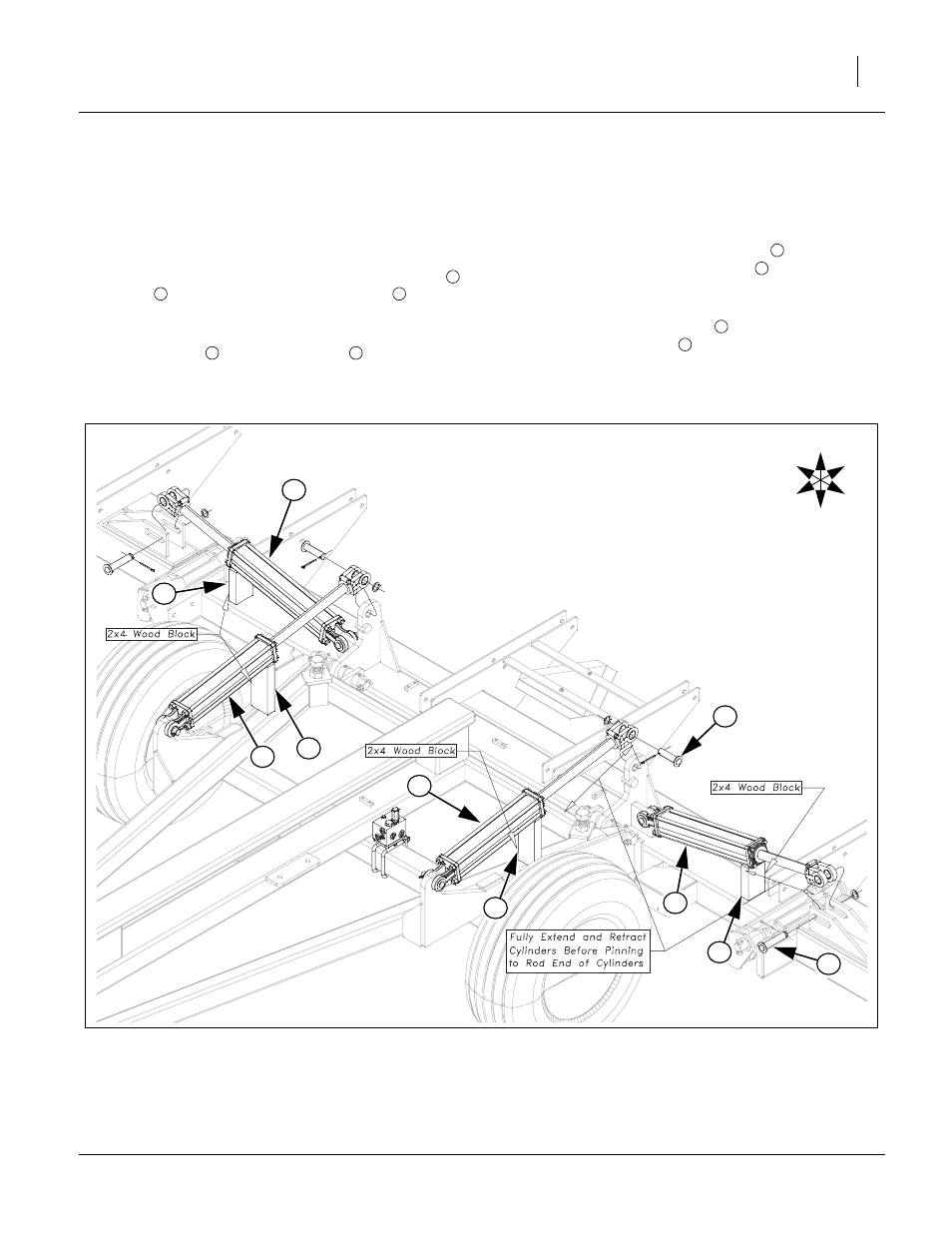

Figure 12
Hydraulic Purging 42996
4
3
U
D
F
B
L
R
2
1
5
2
1
3
3
3
