Great Plains Manufacturing, Inc. Assembly 17
01/14/2014 564-070Q

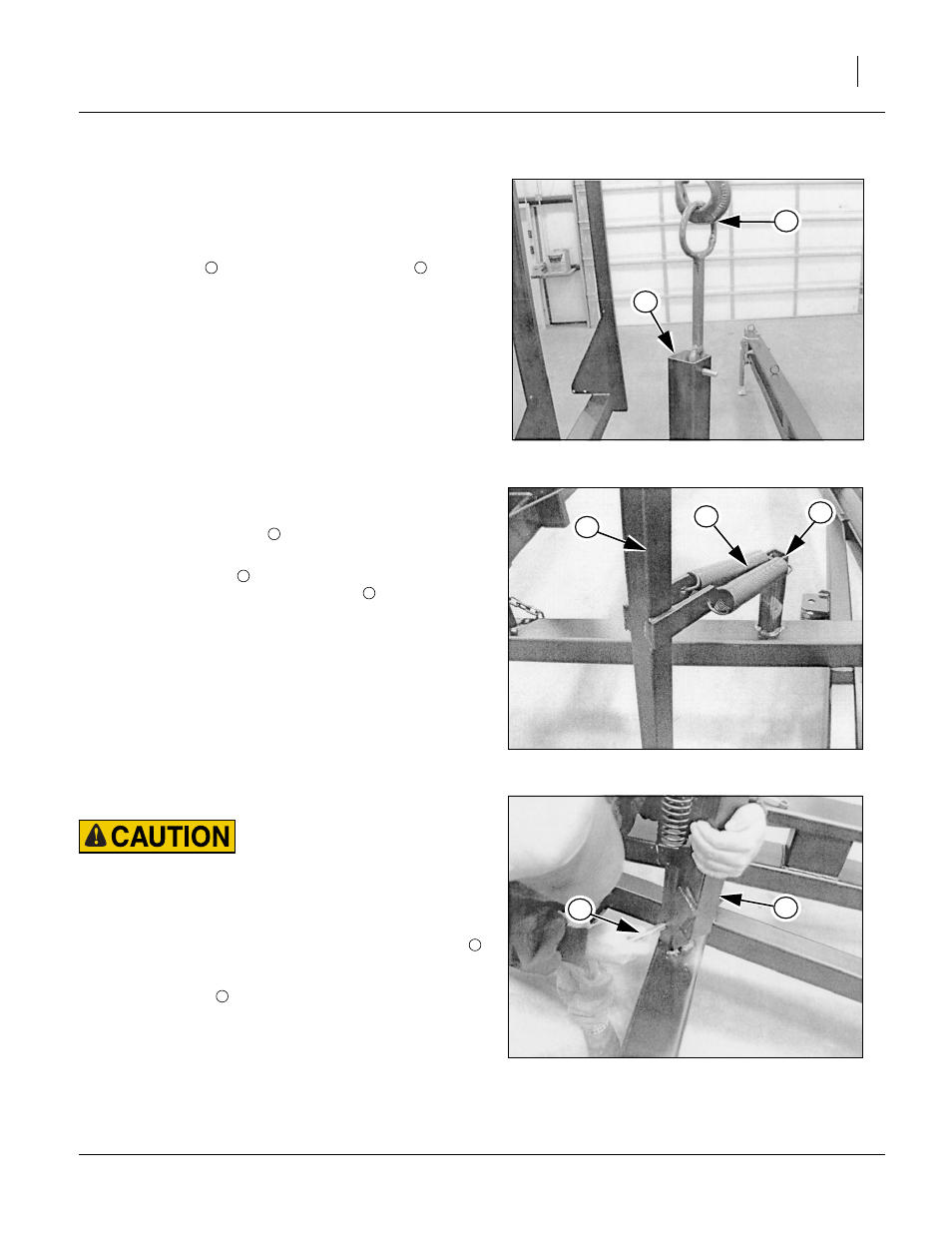

Mount Cable Lift Arms
Refer to Figure 14
Note: Model FH6400 does not have cable lift arms. For
FH6400 models, continue at, See “Drag Arms” on
page 20.
43. Attach a hoist to the top of a cable lift arm .
Refer to Figure 15
44. Position the arm behind the wing support cross mem-
ber, near the arm base , and with the arm’s spring
lugs facing toward the base
45. Select two springs and connect them from the arm
lugs to the top holes of the arm base .
Refer to Figure 16
Pinch Hazard:
Use two people for the next step. Wear gloves. Exercise care. The
springs will be trying to pull the arm from your grasp, and can
cause injury.
46. Using two people plus the hoist, carefully lift the arm
against the spring tension and align the arm pivot lugs
with the lower bolt holes of the arm base. Insert the 1/2
x 3 1/2 hex bolt
Figure 14
Hoist Cable Lift Arm
31761
2
1
1 2
Figure 15
Cable Lift Arm Springs
31760
2
4 3
3
4
3
Figure 16
Cable Lift Arm to Base
31763
5 2
2
5
