17 Assembly
Monitor Mounting Plate Installa-
tion (Optional)
The Yield-Pro Planter® is supplied with an option-
al mounting plate that may be used to mount the
Point-Row Monitor, the Electrohydraulic Control
Valve (Fasse Switch), the Veris Monitor, and the
DICKEY-john® Monitor.
Refer to Figure 22
1. If equipped with Veris, remove suction cups
and mounting bracket from veris monitor.
Keep suction cups and bracket for reuse.
2. Attach large suction cup included with mount-
ing plate to the top hole on the plate using bolt
and lock washer.
3. If not equipped with Veris, skip this step and
continue with step 4. If equipped with Veris,
using lock washers and nuts secure suction
cups removed in Step 1 to plate. Secure suc-
tion cups to holes directly above the bottom
two holes on the plate.
4. Place DICKEY-john® mounting bracket on
mounting plate. Secure bracket to plate in
bottom two holes directly below the suction
cups. Use bolts and nuts to install.
5. If equipped with Veris, attach Veris Drive
mounting bracket above DICKEY-john®
mounting bracket using the included bolts
and nuts.
6. Remove mounting bracket from electrohy-
draulic valve control. Install mounting bracket
to mounting plate.
7. Attach point-row monitor to mounting plate
with 10-32 x 5/8 machine screws, lock wash-
ers, and nuts. Let wires fall in the front of the
plate.
8. Secure electrohydraulic valve control to
mounting bracket on plate using 10-32 x 5/8
machine screws, lock washers, and nuts. Let
wires fall in the front of the plate.
9. Mount veris drive monitor to mounting bracket
on plate. Secure veris drive monitor to bracket
using 1/4-20 x 5/8 bolts, 1/4 lock washers,
and 1/4-20 nuts. Wires should fall in the front
of the mounting plate.
10. Attach DICKEY-john® Monitor to DICKEY-
john® mounting bracket on plate. Thread
monitor wires through slot in plate. Trap all
other wires between DICKEY-john® monitor
and mounting plate.

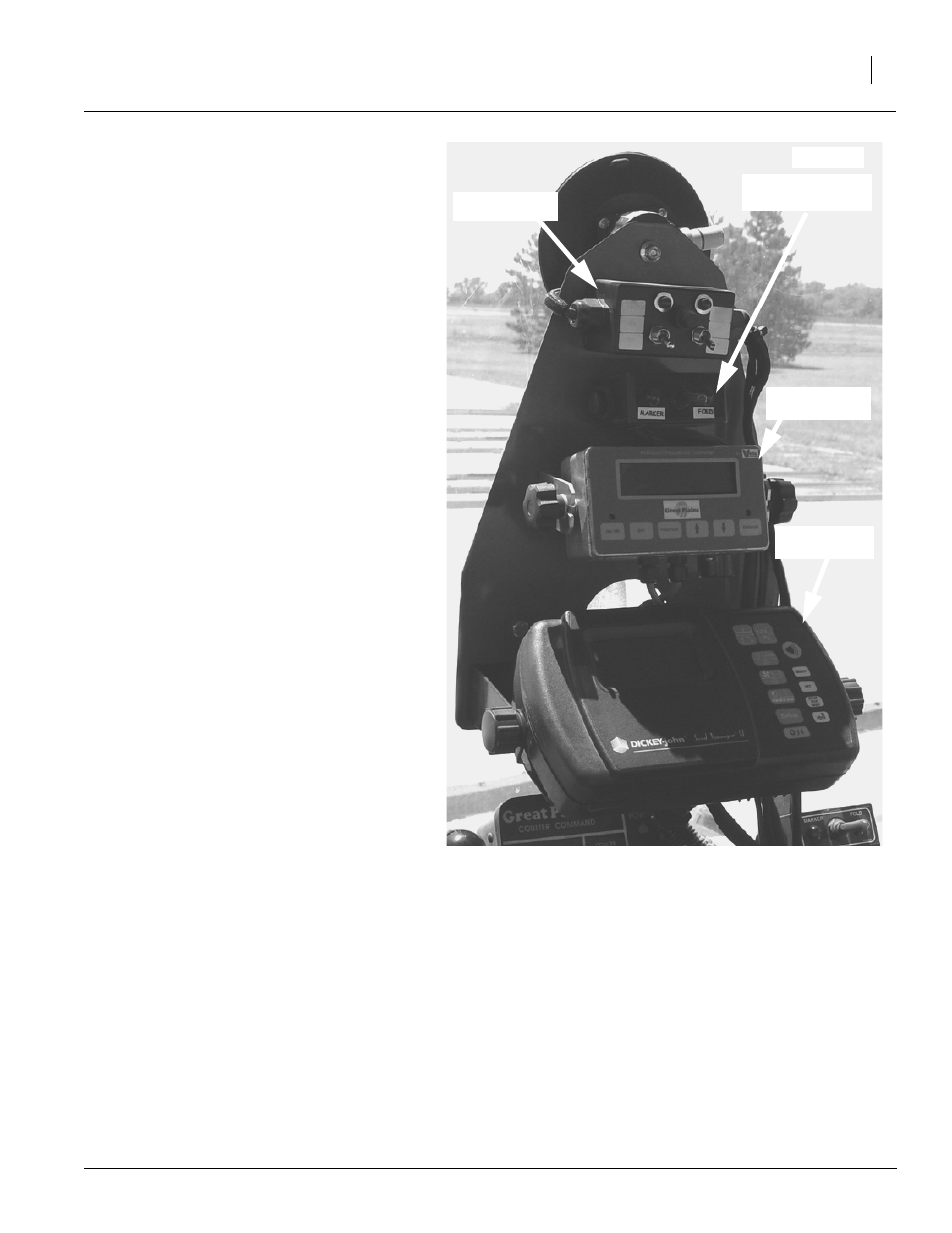

23283
Point-Row
Monitor
Electrohydraulic
Valve Control
Veris Drive
Monitor
DICKEY-john®
Monitor
Figure 22
Optional Monitor Mounting Plate
