9 Assembly
Refer to Figure 2
5. Attach second section marker arm to
first section marker arm.NOTE: Sec-
ond section marker arms come in a
pair of left and right. When the cor-
rect marker arm has been attached
to the correct corresponding wing
frame, marker shear bolt (8) will go
toward planter front.
6. Partially insert second section into first
section marker arm.
7. Align holes in first and second section
marker arms.
8. Insert marker shear pivot pin through
holes. Slide washer over pivot pin and
secure with cotter pin.
9. Slide washer up from bottom of marker
shear pivot pin and secure with cotter
pin.
10. Secure first section marker to second
section marker arm using shear bolt
and hardware.
24407
Marker
Shear Pivot
Pin
Second
Marker
Section
First
Marker
Section
24408
Shear
Bolt

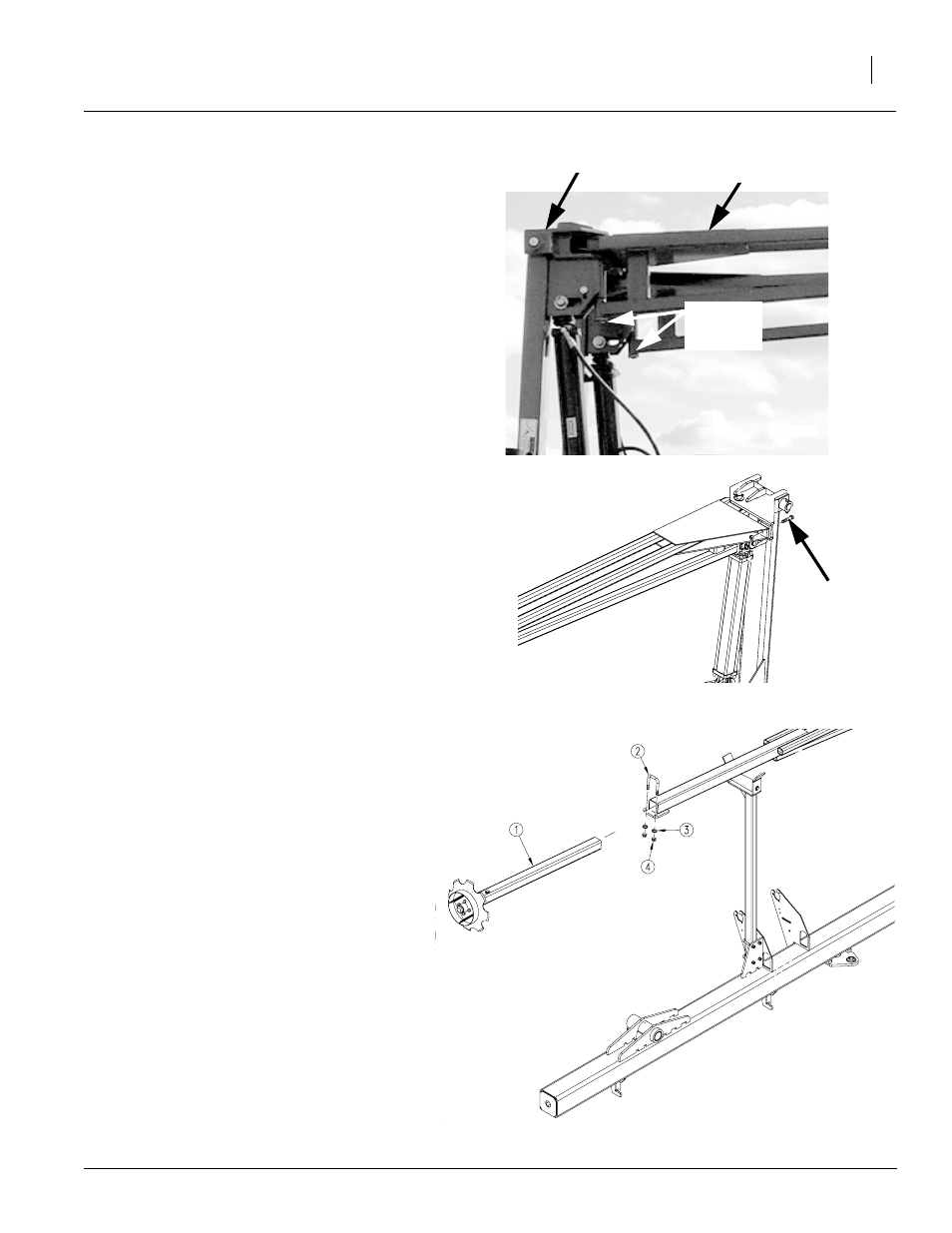

Figure 2
First and Second Marker Sections
Refer to Figure 3
11. Attach marker extension tube (1) with
disc to marker arm second section.
12. Use u-bolt (2), 5/8 lock washer (3), and
5/8-11 hex nut (4) to secure marker ex-
tension tube (1) with disc to marker arm
second section.
13. Tighten all bolts.
14. Repeat steps 1 - 12 on opposite planter
wing to install other marker.
NOTE: Be sure to measure and adjust
marker to row spacing before field use.
24408
24408
Figure 3
Marker Extension and Disc
